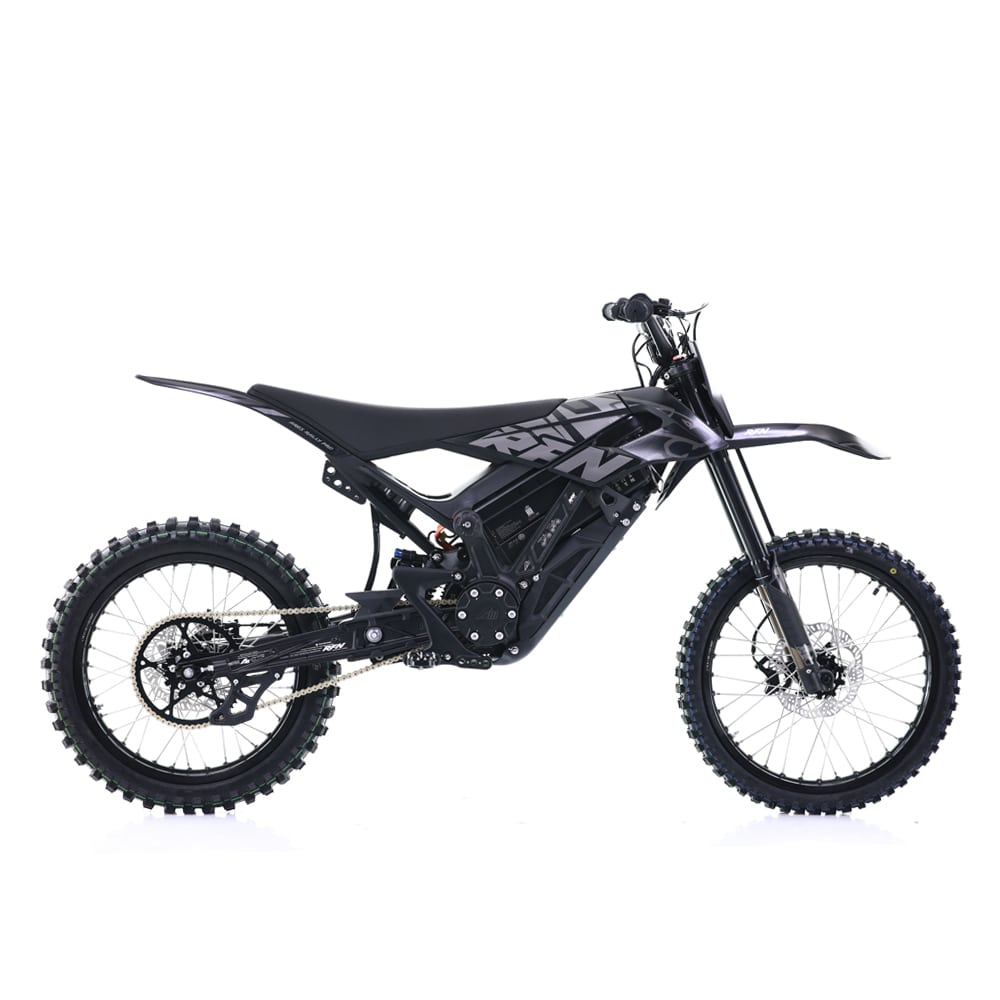

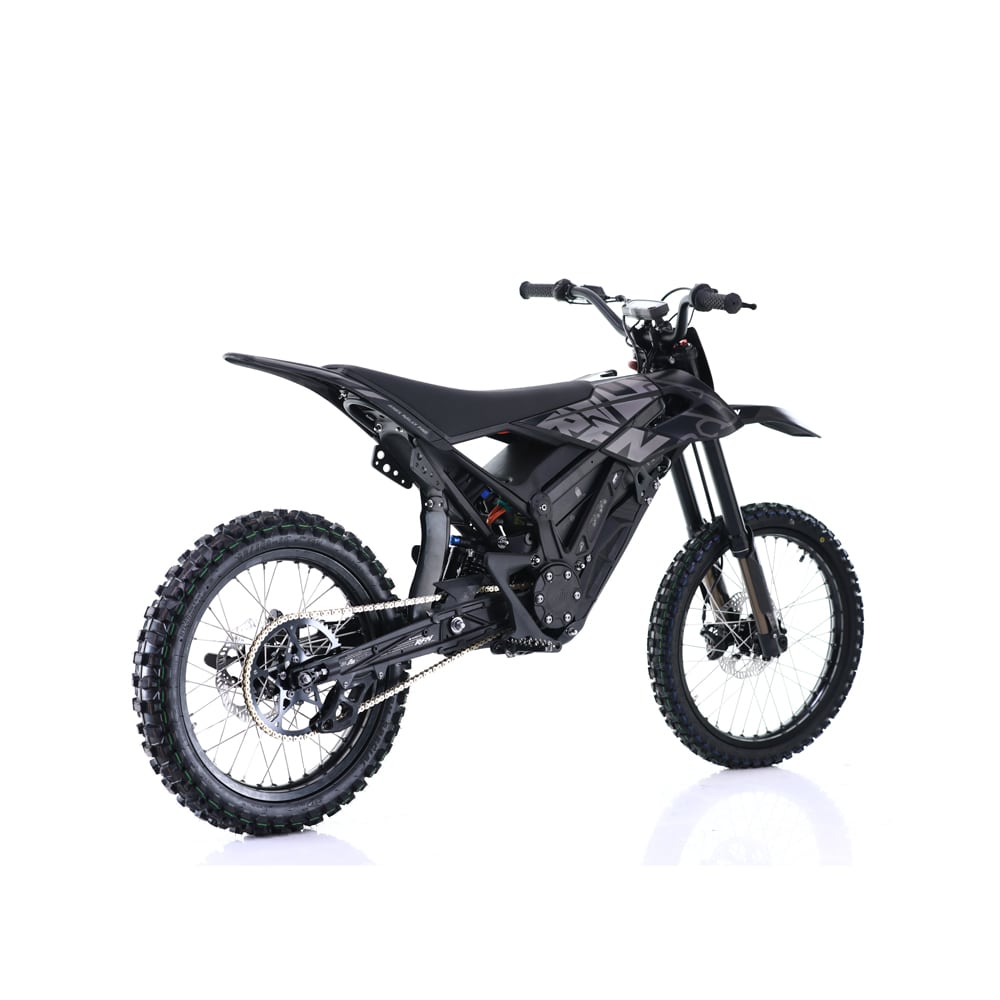

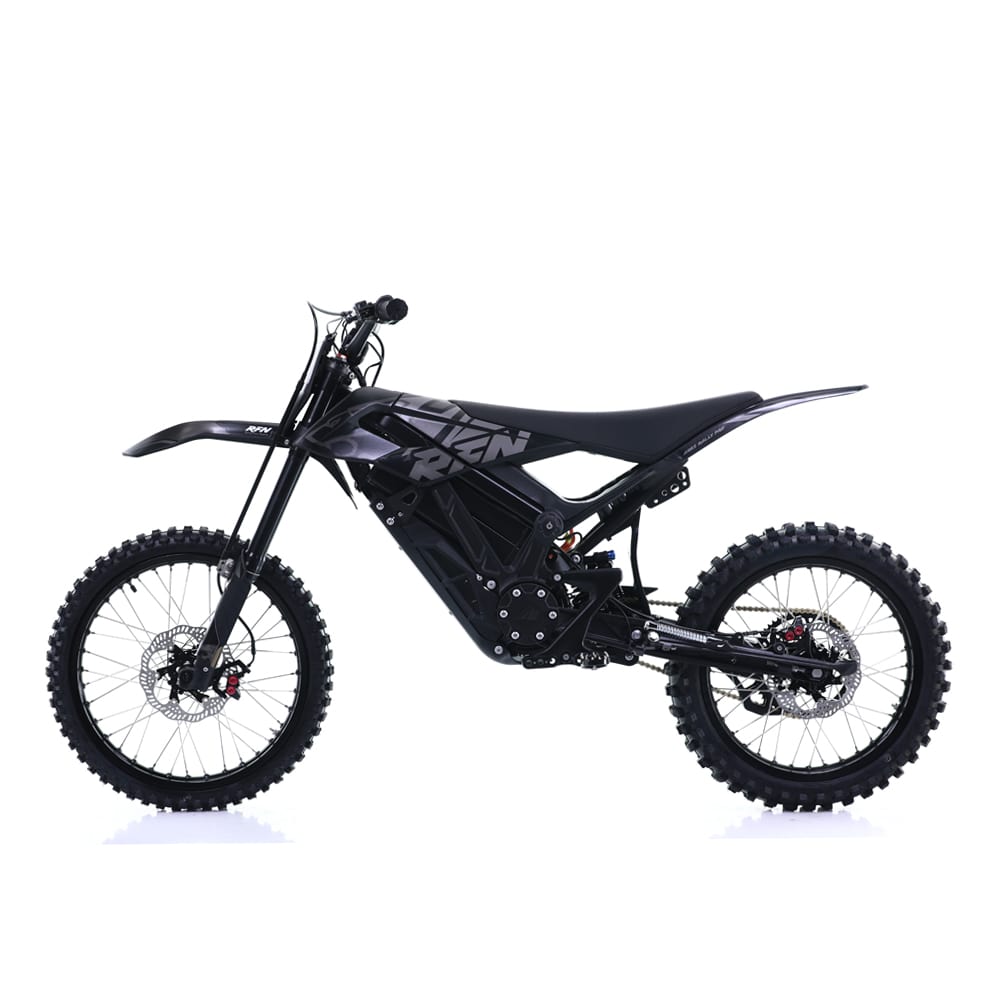

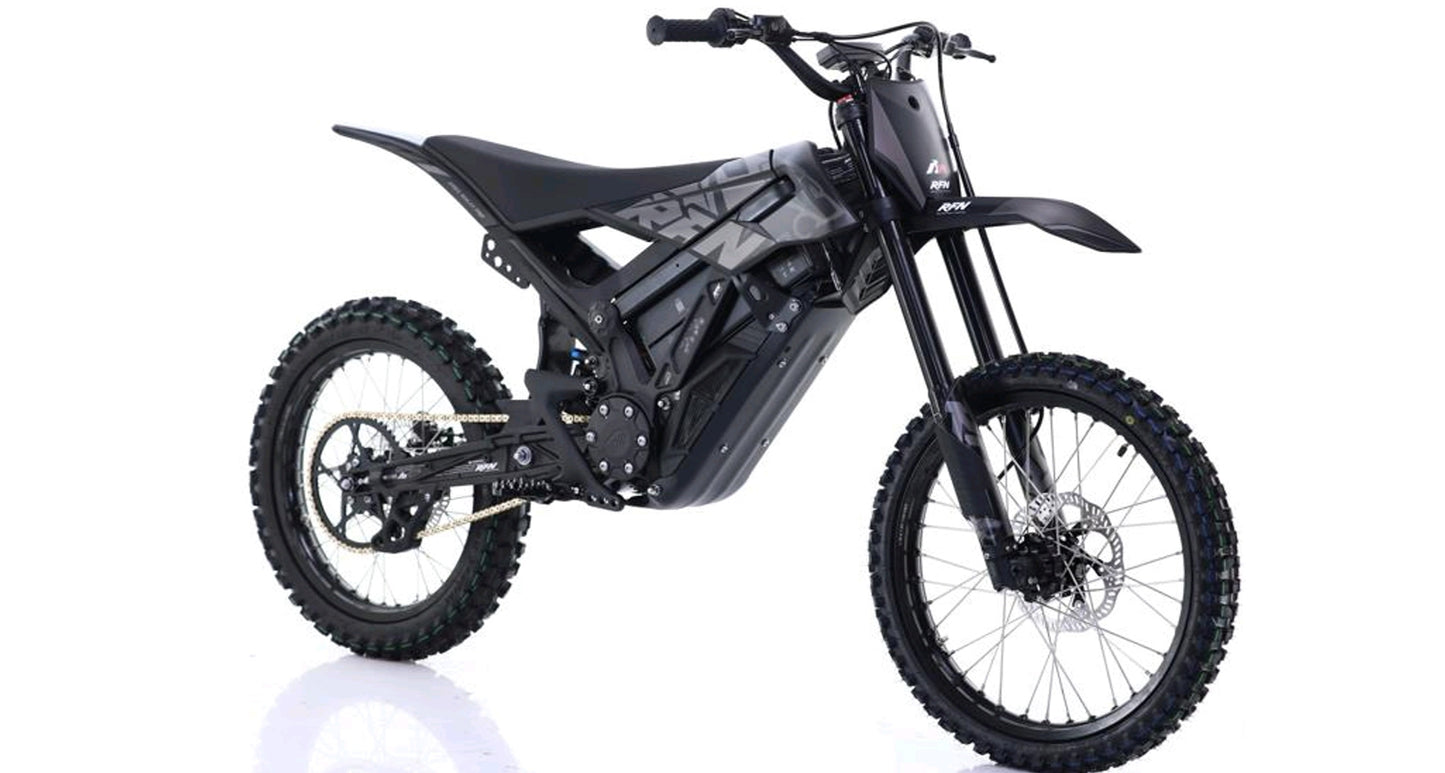

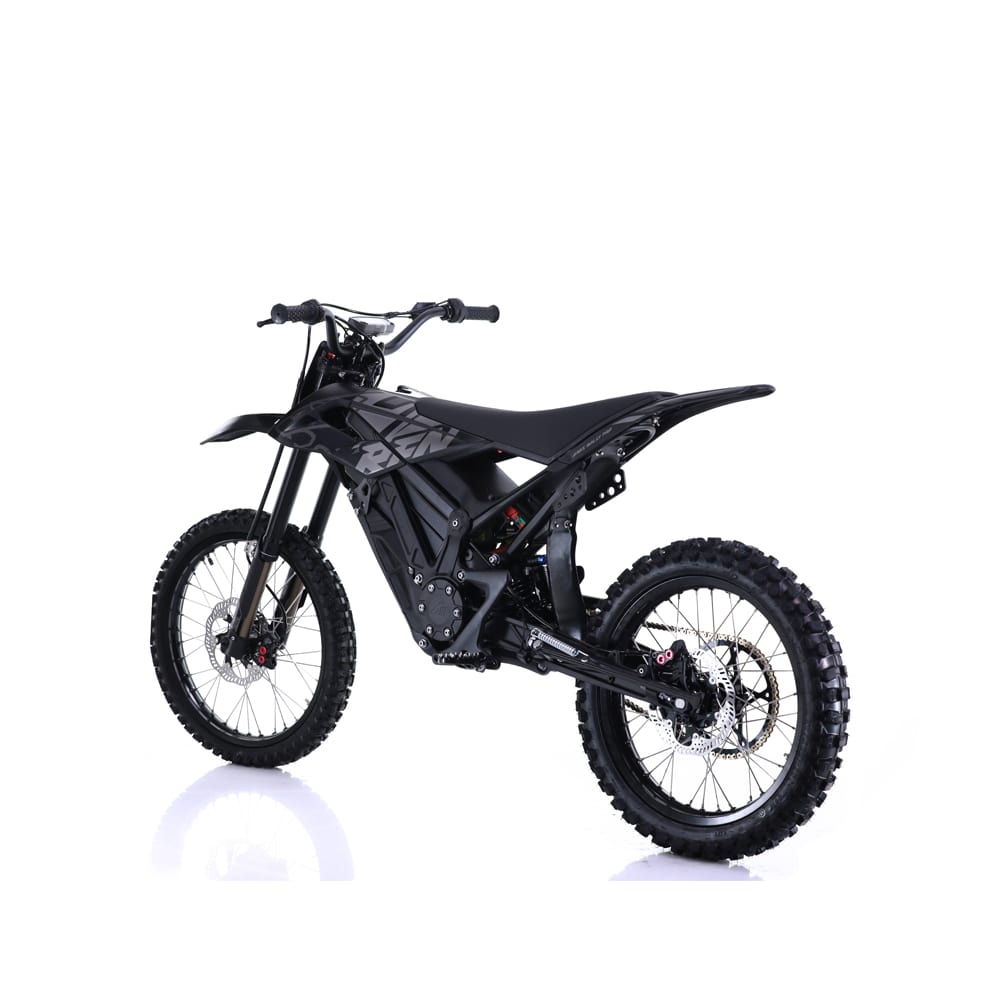

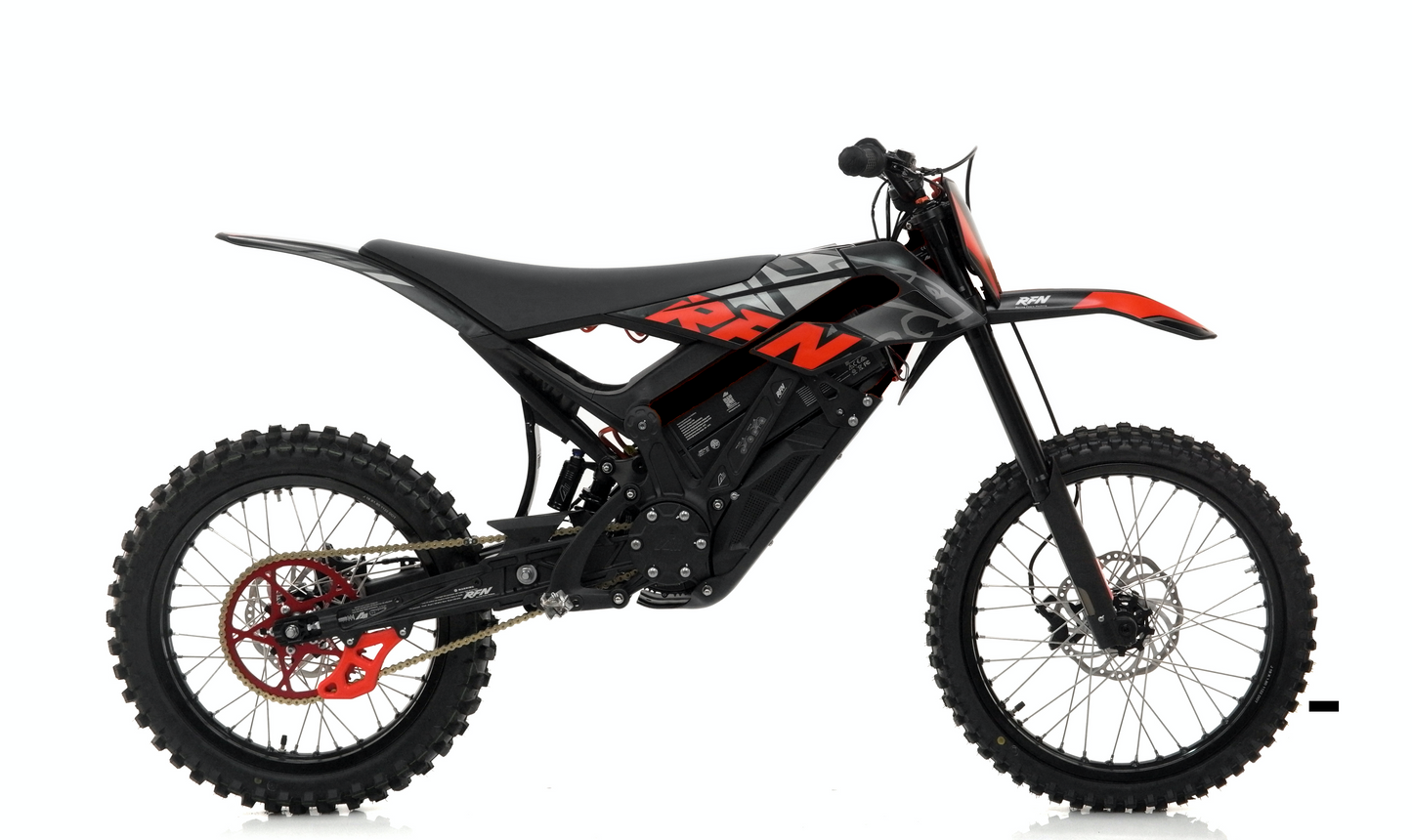

RFN MK3 RALLY PRO

RFN MK3 RALLY PRO

Regular price £3,899.99 GBP
Regular price Sale price £3,899.99 GBP
Sale Pre-order
Taxes included. Shipping calculated at checkout.
Color
DELIVERY

RFN Rally Pro: The ultimate off-road adventure bike. A powerful adventure bike with long-travel suspension and rally-inspired features, this bike is ready to tackle any terrain.

Latest Mk3 Models

2years Warranty

Road legal Enduro versions due in stock early June 24



COLLECTION IS ADVISED SO WE CAN BUILD AND PDI THE BIKE BEFORE COLLECTION

PALLET SHIPPING IS AN OPTION @£99 - BUT SOME WARENTY ITEMS WILL BE VOID IF NOT BULT AND PDI'D BY US IN HOUSE



SPECIFICATION

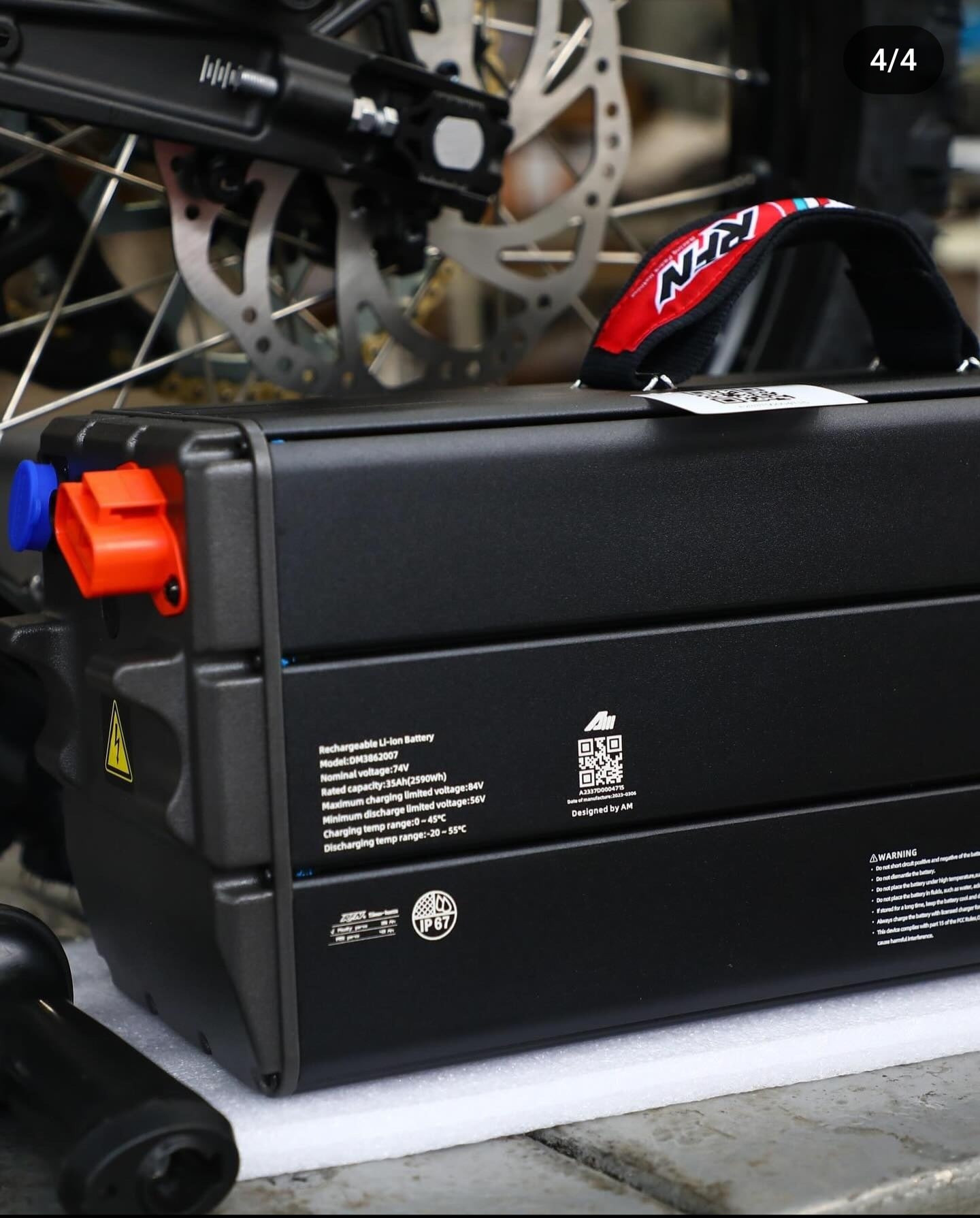

Battery

LG 21700 Li-Ion BATTERY 74V 43Ah (3182Kwh) cells, can be removed to charge in or out of the bike.

Brakes

 4pot Calliper's

DOT 4 system for higher operating extremes

210 mm  Floating Discs

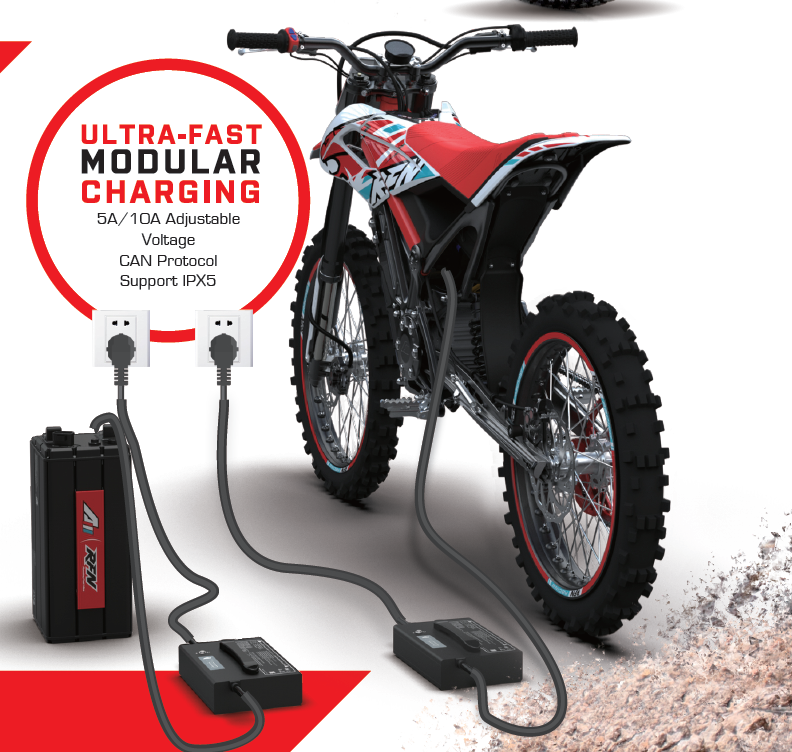

Charging

3 hours charge time.

(10A charging. From 10%-100%)

5-6hrs Charge time

(5A Charging 10%>100/%

Controller

Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.

Waterproof

IP67

Electric motor

Air cooled 3-Phase PMSM (Permanent Magnet Synchronous Motor)

Regeneration as standard

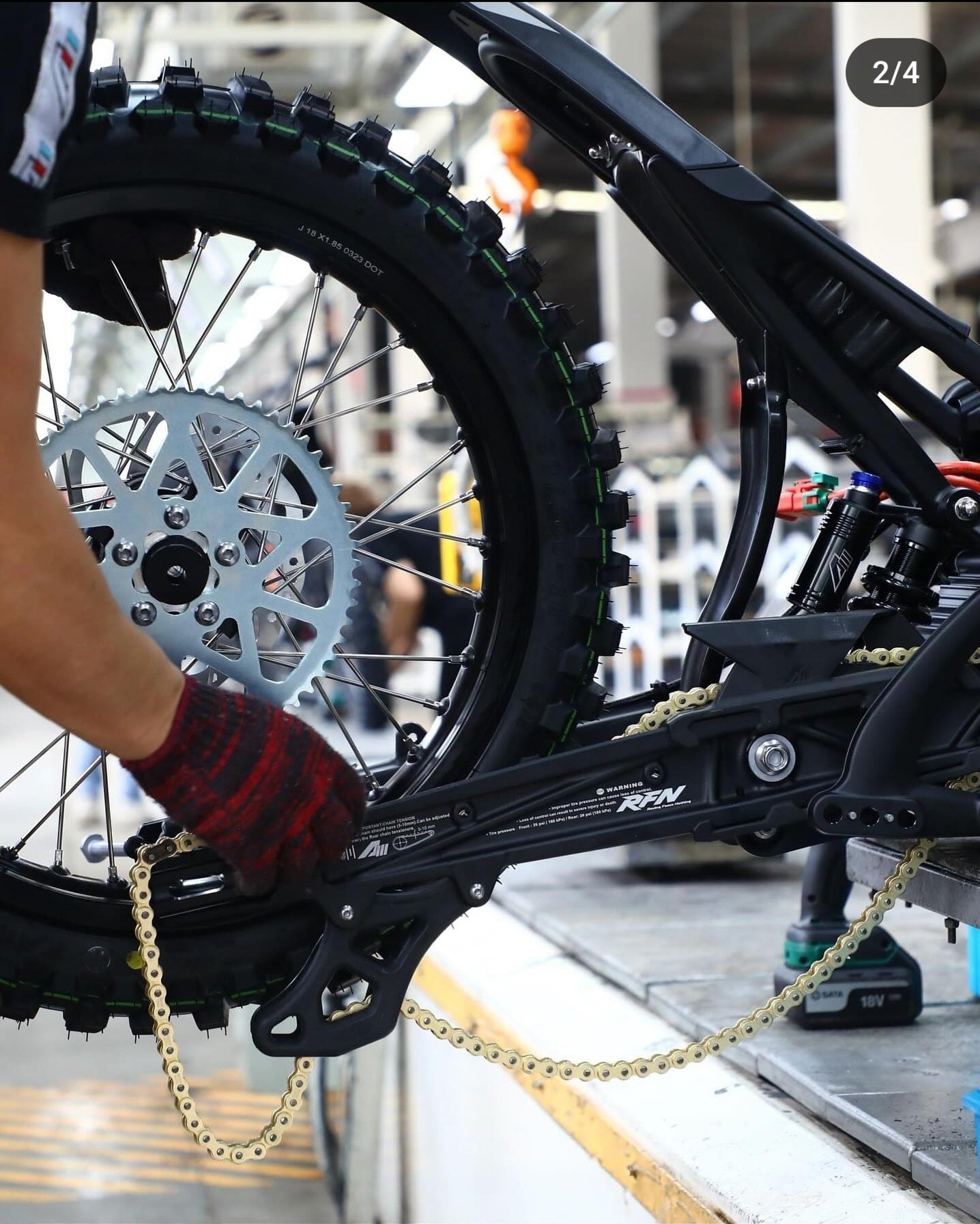

Direct Drive 420 chain

Sprocket

13T/58T

Rated power

5 kW

Peak power

12.5 kW

Max Torque of motor

58 N·m

Max Torque of rear wheel

270 N.m

Fork angle

24 °

Ground clearance

340 mm

Offset

15mm at the triple clamps, 45 mm at the axle.

Seat height

860 mm

Trail

111 mm

Wheel base

1330 mm

Fenders & Bodywork

PP/ABS plastic

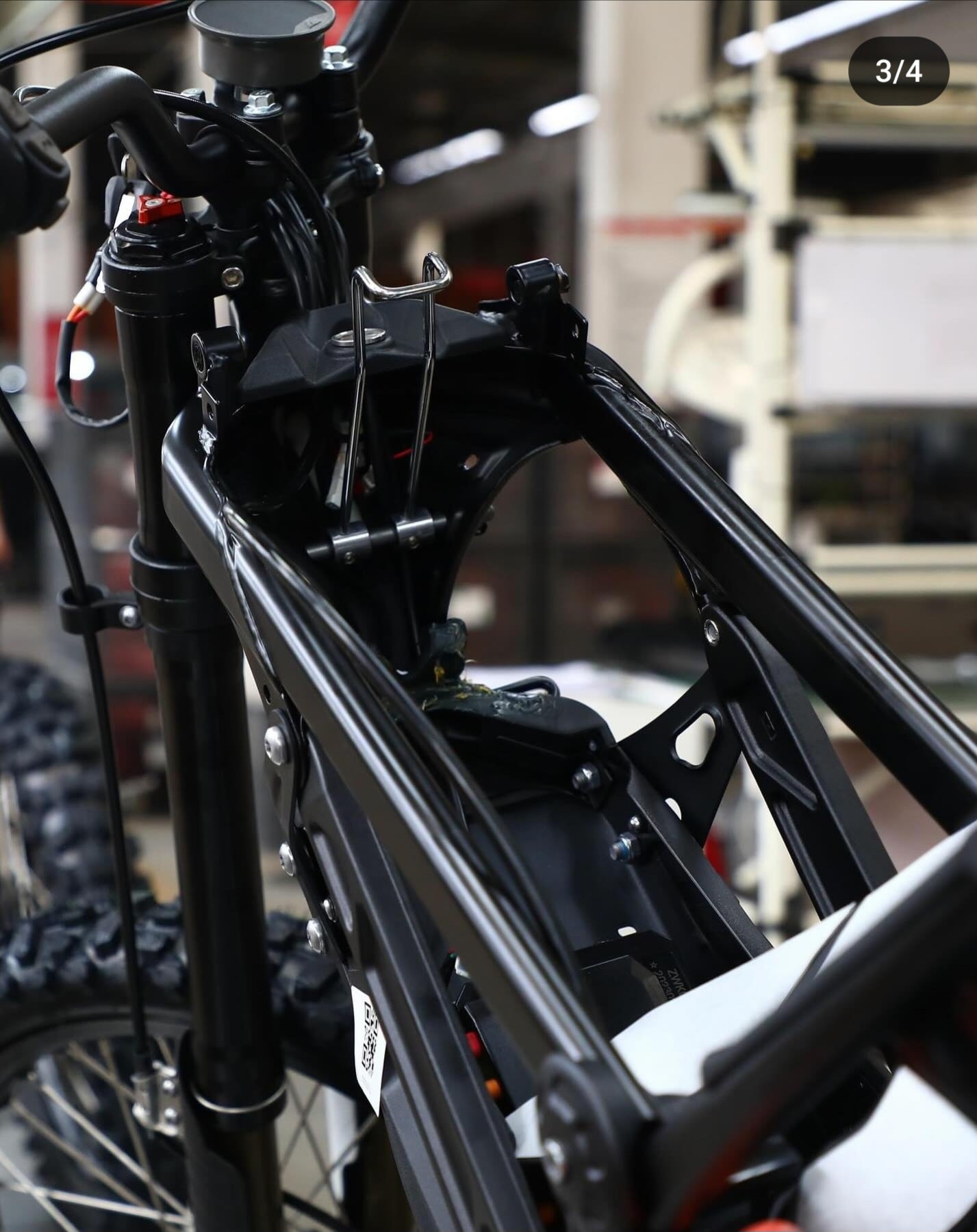

Frame

6082 aluminium extruded

Forged CNC machined frame

Front suspension

Upside Down, 200 mm travel, Fully adjustable

Handlebar

High rise 6061,

22mm clamp sizing,

760mm Wide

Rear suspension

240mm x 74 mm travel. Adjustable compression, rebound and preload.

Regulatory Certificate

CE

RIDE MODES

Mode 1

Tortoise mode: Limited to 15 mph with 3.5h battery range.

Mode 2

Rabbit mode: Standard 5kw output, 1-2 h riding time.

Mode 3

Rocket mode: 60 seconds of 12.5Kw output. 1 hour riding time.

Mode 4

Reverse mode: Limited to 6 mph.

Range

100 mi (Test data Load: 75 Kg, 12.5 mph uniform speed, ambient temperature: 25 °C, flat pavement, standard tyres, standard tyre pressure)

Top speed

60 mph (depending on gearing and conditions)

Net weight of Battery

15 kg

Net weight of whole bike (Including Battery)

68 kg

Maximum load

120 kg

Hubs

Forged and CNC aluminium hubs.

Rims

F 19"/ R 18" re-inforced 7050 aluminium.

Tyres

F CST 70/100-19, R CST 90/100-18 MX tyres for maximum grip off road.

Warranty*

24 Months Parts & Labour (Subject to Service & Schedule)
