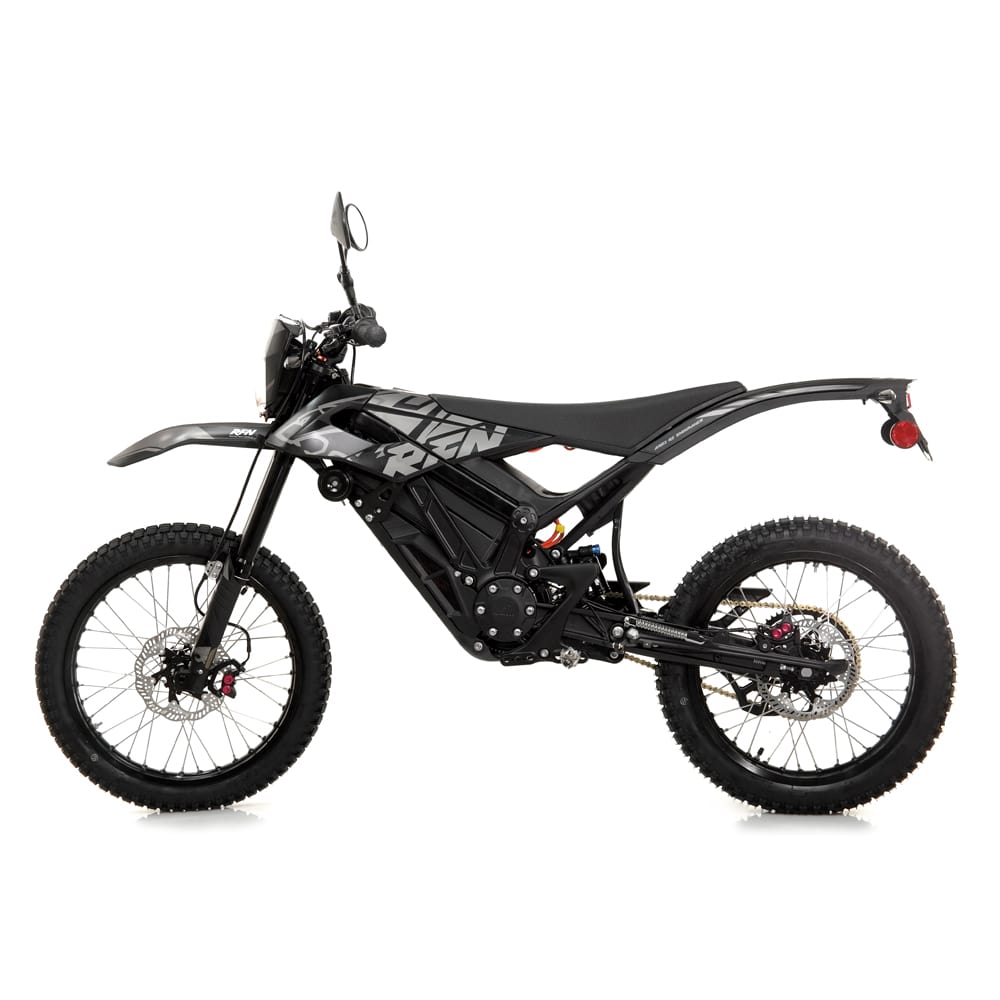

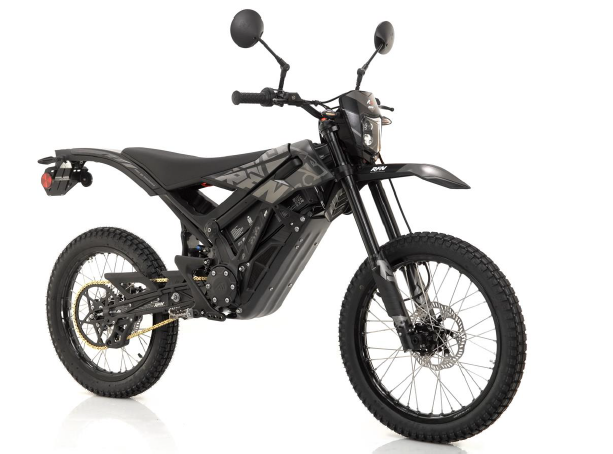

RFN MK3 ENDURO PRO: The ultimate off-road enduro bike. A powerful bike with long-travel suspension and rally-inspired features, this bike is ready to tackle any terrain.

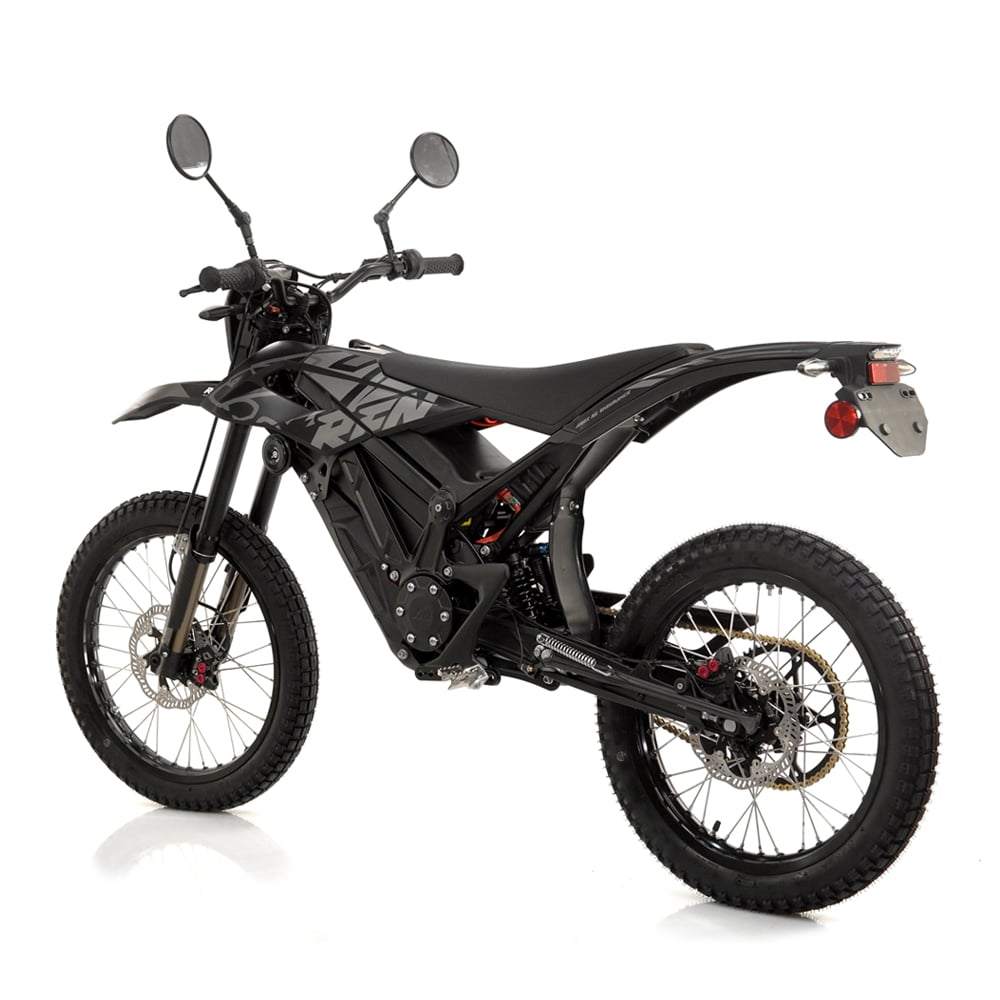

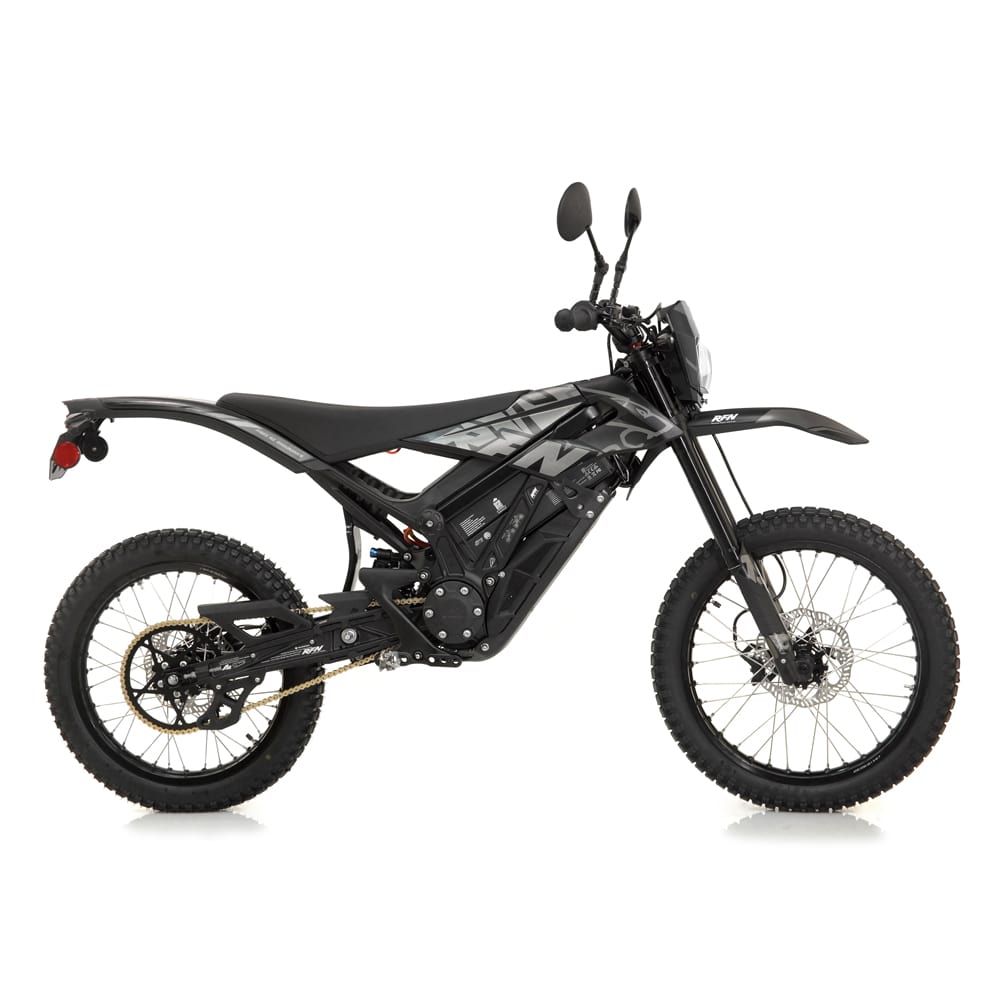

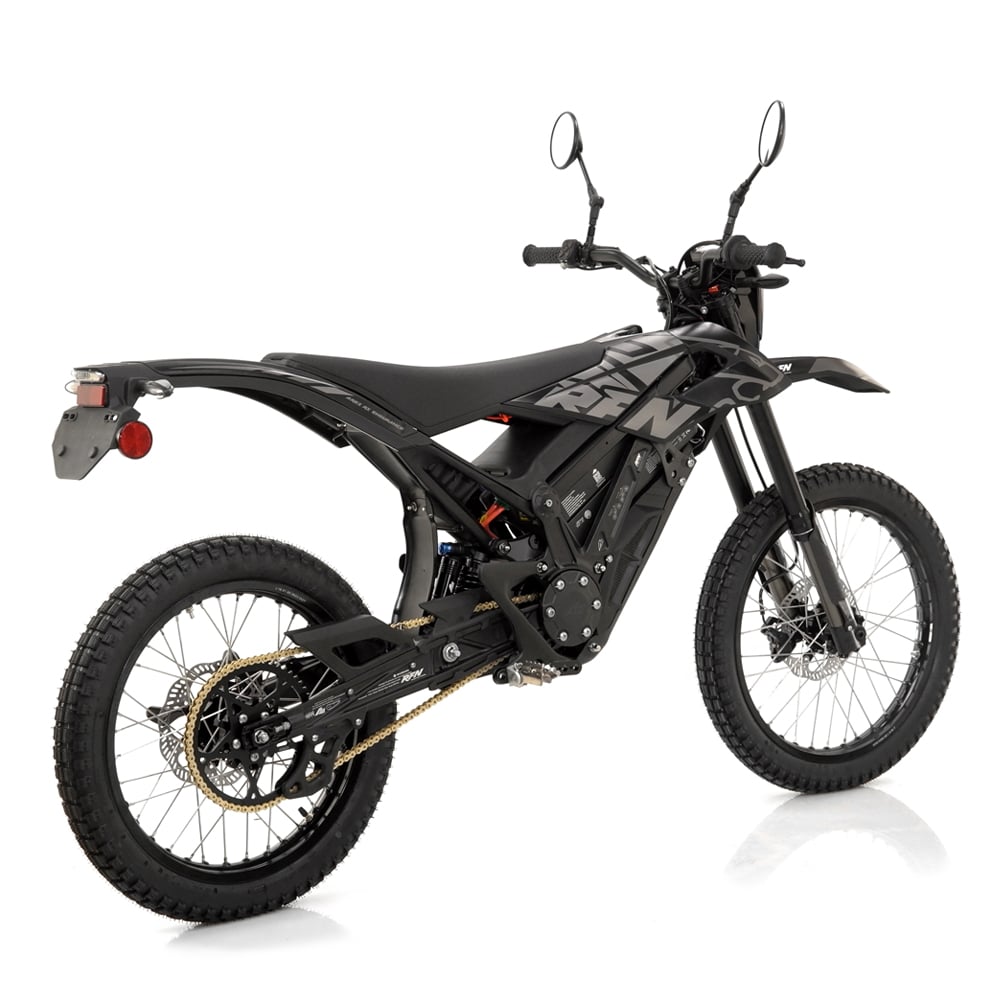

The RFN ‘RS ENDURANCE’ L1E is delivering a premium high powered 74V vehicle at a much more affordable price, thus offering more customers the opportunity to experience the benefits of 74V, without the expense of upgrades. The RFN ’RS ENDURANCE’ L1E utilizes a ‘Direct Drive’ to deliver the power to the wheel, thus operating more efficiently. Range is also increased to around 120 miles in ‘Tortoise’ Eco Mode which limits power to optimize range. Rather than higher top speed the bike is geared for instant torque, which makes it nimble in traffic. Additional design features include a higher seat height and MX styling, wider swing arm and rear tyre, two level braking regen and most importantly the ability to remove the seat, to convert the bike for trials, climbing and stunts when ridden off road too. Riders must be a minimum of 16, hold a current CBT for Moped class and insurance. Road Tax is currently FREE on electric vehicles.
IN STOCK
£4,095 inc VAT *(Excluding £55 DVLA Registration Fee)
COLLECTION IS ADVISED SO WE CAN BUILD AND PDI THE BIKE BEFORE COLLECTION
PALLET SHIPPING IS AN OPTION @£99 - BUT SOME WARRANTY ITEMS WILL BE VOID IF NOT BULT AND PDI'D BY US IN HOUSE

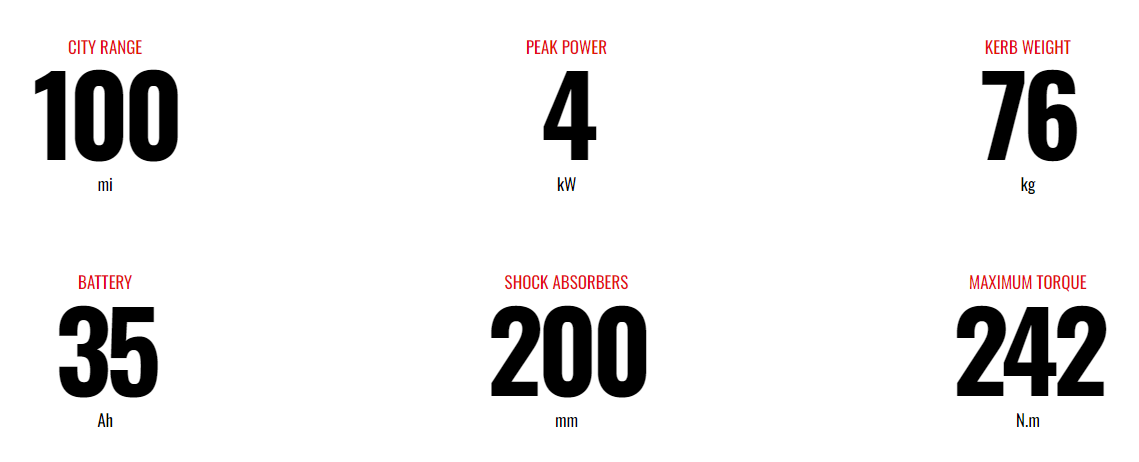

SPECIFICATION
Battery

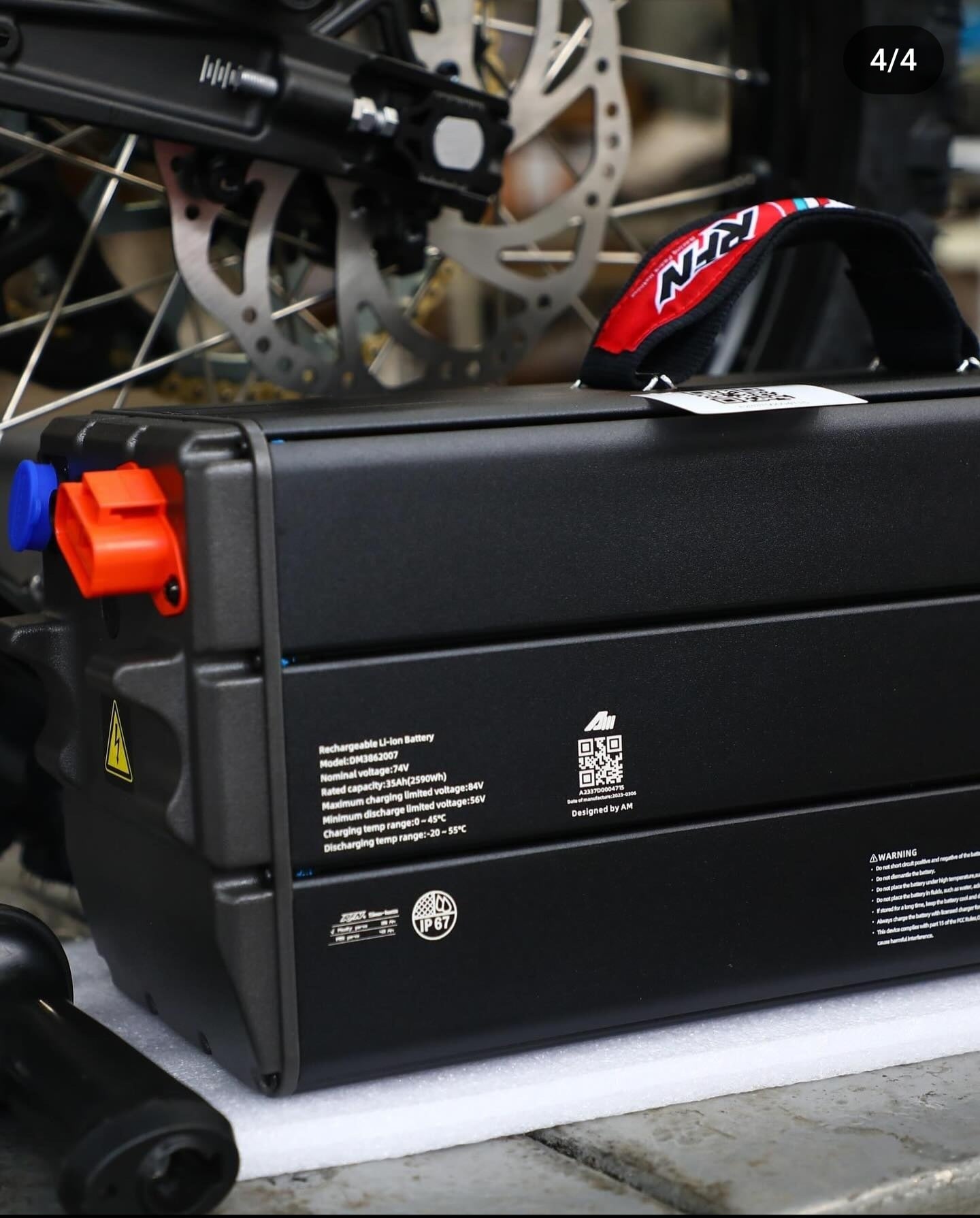

LG 21700 Li-Ion BATTERY 74V 43Ah (3182Kwh) cells, can be removed to charge in or out of the bike.
Brakes
Front and Rear 4-piston calliper's, using DOT 4 fluid and 210 mm x 2.3mm floating discs.
Charging
3 hours charge time. (10A charging. From 0-100%)
Controller
Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.
Waterproof
IP67
Electric motor

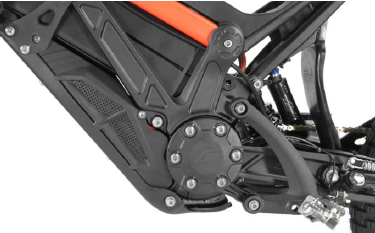

Air cooled 3-Phase PMSM (Permanent Magnet Synchronous Motor) motor, Regeneration as standard, Direct Drive, 11T Front Sprocket, 420 chain.

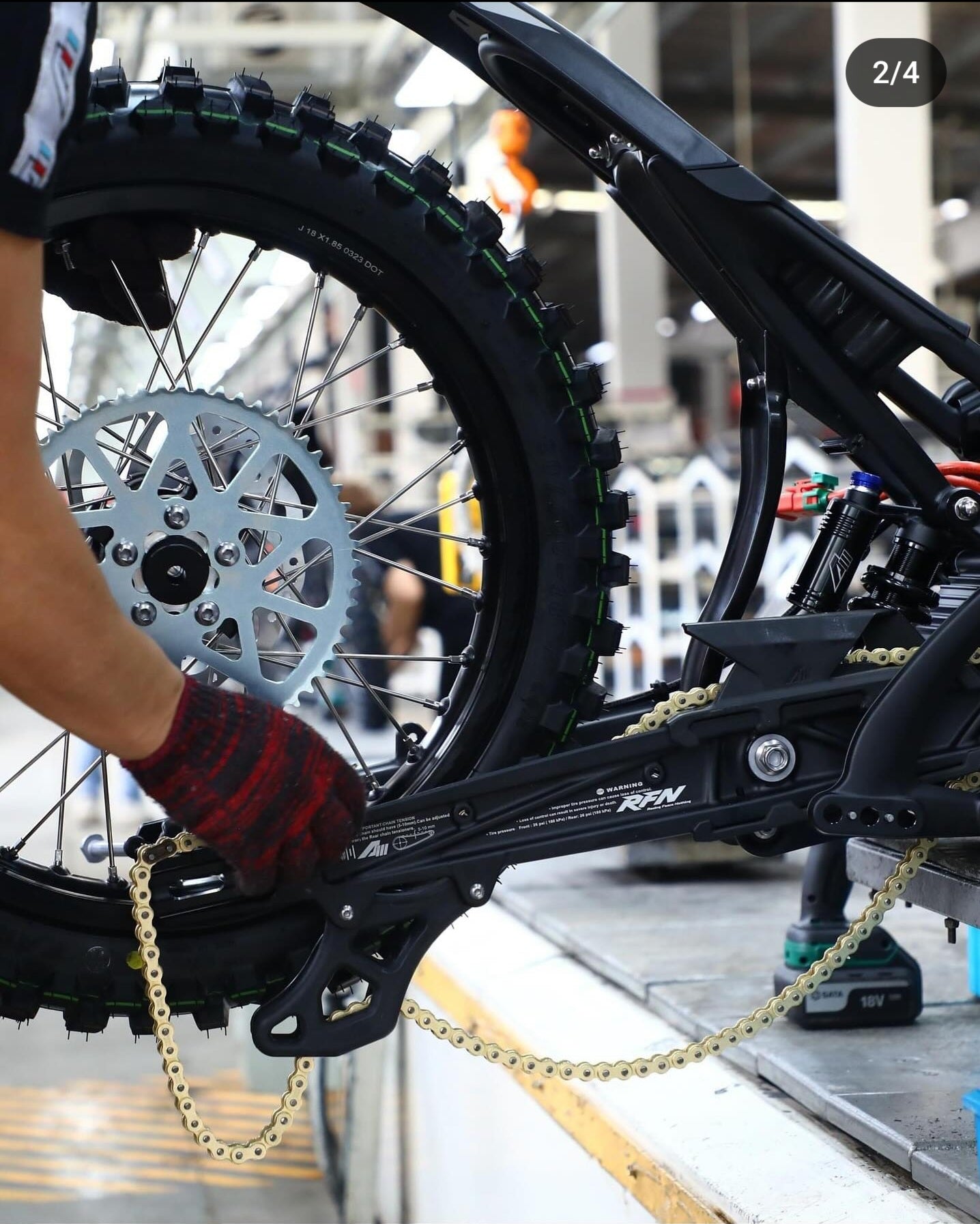

Sprocket
11T/58T
Rated power
4 kW (Restricted)
Peak power
12.5 kW (unrestricted offroad use only)
Max Torque of motor
46Nm (58 Nm unrestricted)
Max Torque of rear wheel
242Nm (270 Nm unrestricted)
Fork angle
24 °
Ground clearance
340 mm
Offset
15mm at the triple clamps, 45 mm at the axle.
Seat height
860 mm
Trail
111 mm
Wheel base
1330 mm
Fenders & Bodywork
PP/ABS plastic

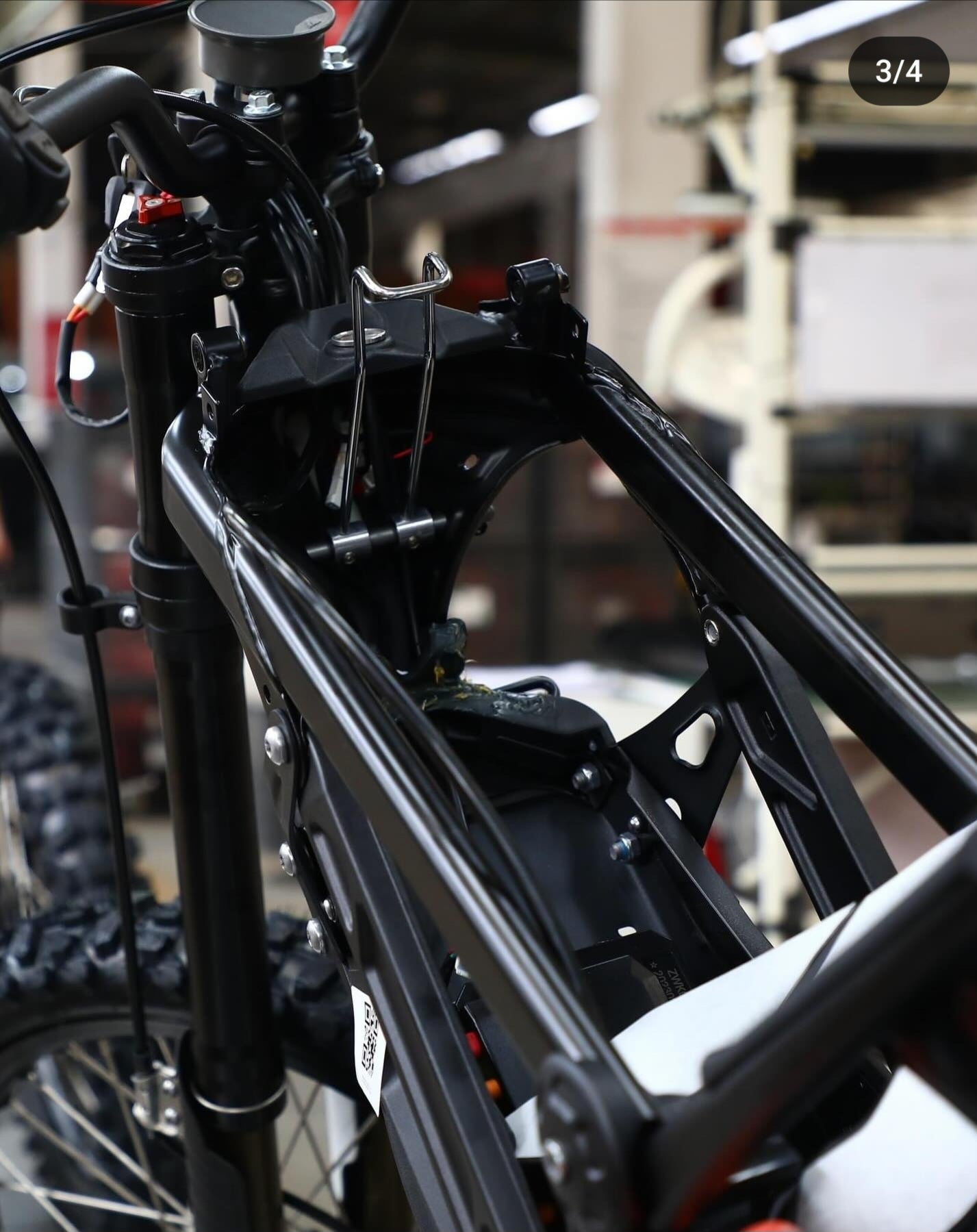

Frame
6082 aluminium extruded, forged, CNC machined and steel frame.
Front suspension
Upside Down, 200 mm travel, Fully adjustable
Handlebar
High rise 6061 aluminium, 22mm width, 760mm length
Rear suspension
240mm x 74 mm travel. Adjustable compression, rebound and preload.
Regulatory Certificate
CE

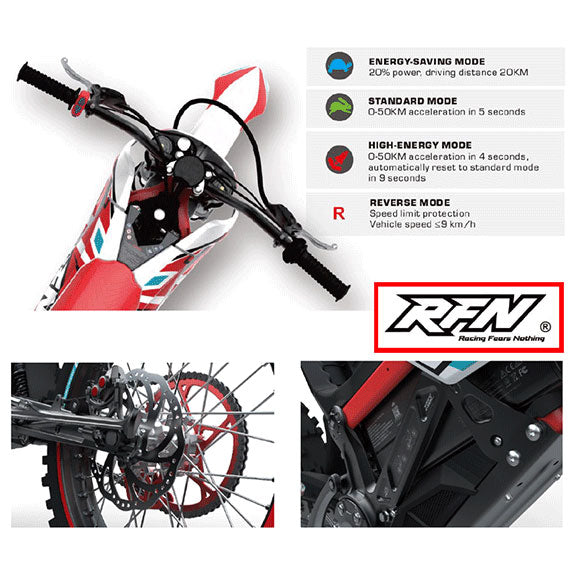

RIDE MODES
Mode 1
Tortoise mode: Limited to 15 mph with 3.5h battery range.
Mode 2
Rabbit mode: Standard 5kw output, 1-2 h riding time.
Mode 3
Rocket mode: 60 seconds of 12.5Kw output. 1 hour riding time.
Mode 4
Reverse mode: Limited to 6 mph.
Range
112 mi (Test data Load: 75 Kg, 12.5 mph uniform speed, ambient temperature: 25 °C, flat pavement, standard tyres, standard tyre pressure)
Top speed
28 mph *Restricted for Homologation
60 mph unrestricted (depending on gearing and conditions)
Net weight of Battery
15 kg
Net weight of whole bike (Including Battery)
76 kg
Maximum load
120 kg
Hubs
Forged and CNC aluminium hubs.
Rims
F 19"/ R 18" re-inforced 7050 aluminium.
Tyres
F CST 70/100-19, R CST 90/100-18 Trail tyres for a mix of off road and on road grip
Warranty
ON ROAD 36 months (Battery up to 20,000 Miles max) (Subject to Service & Schedule)
Main components: Motor/Controller/Battery/Chassis/Swing Arm
First Service must be carried out by 185 Miles without fail.
Excludes items* *items subject to normal wear from use eg Grips, Cables, Belts, Tires, Pads & Discs, Bulbs, Warranty is excluded for competition or closed-circuit use. Any Accidental damage and or damage cause by alteration of the standard specification with nonofficial components (Tuning or modification) is entirely the owner’s responsibility. Warranty and service is a return to base criteria at the responsibility of the purchaser.
