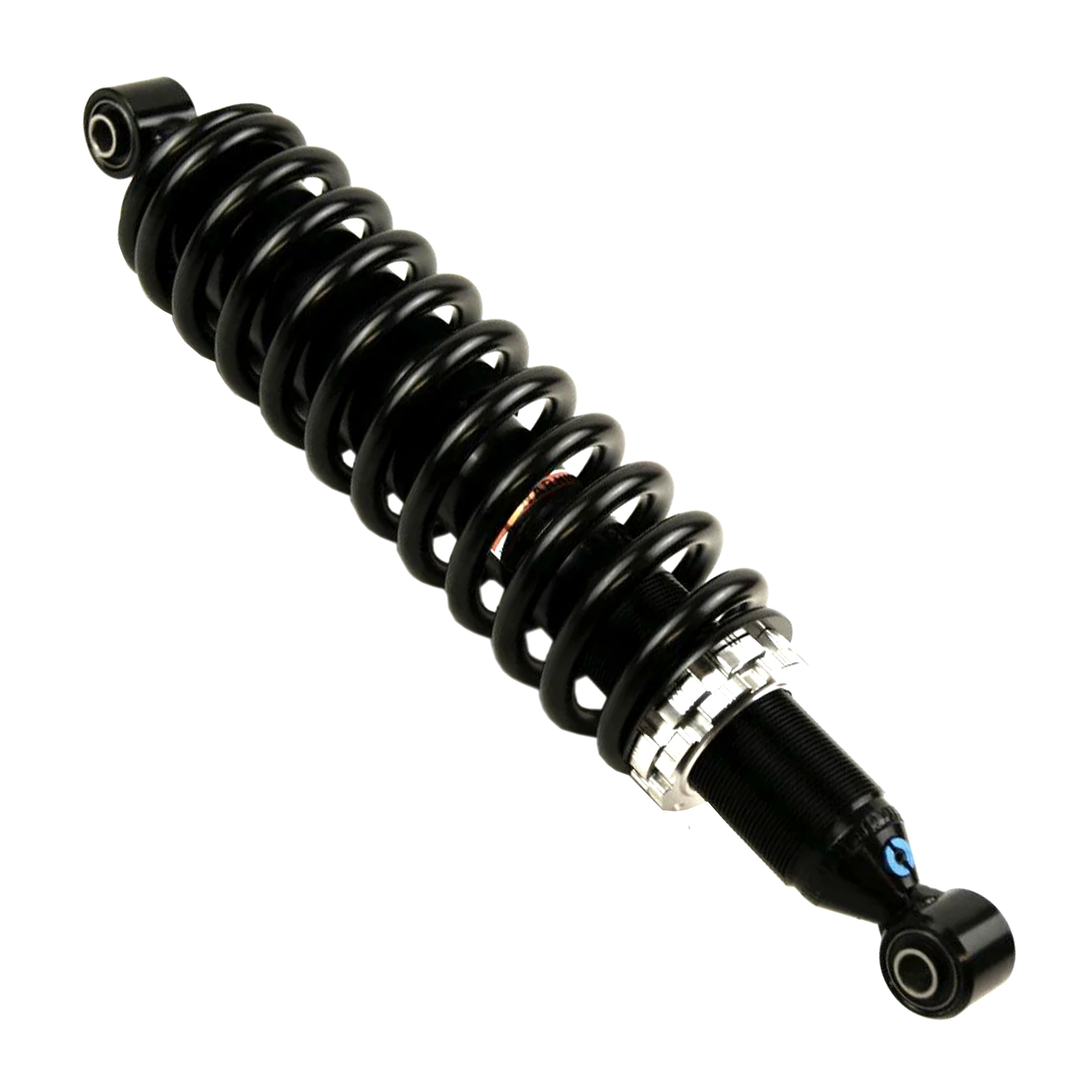

SHOCK FRONT REAR HONDA SXS1000 PIONEER BRONCO AU-04362 52400-HL4-A51

A heavy-duty gas shock designed for consistent damping performance and increased load capacity compared with stock oil-damped units. Supplied pre-assembled with spring and retainers for direct bolt-on installation.

Features

• Gas-damped construction for long-term consistent performance


• Approximately 10% stiffer spring for improved ride and higher load capacity


• Suitable for front use when fitting a snow plough


• Smooth black colour to match OEM appearance


• Direct bolt-on replacement with pre-installed spring


• Sold individually; includes one shock, spring and spring retainers

Specifications

• Position top hole I.D: 12 mm


• Top eyelet width: 32 mm


• Bottom hole I.D: 12 mm


• Bottom eyelet width: 36 mm


• Tube O.D: 45 mm


• Stroke: 155.6 mm


• Spring O.D: 90 mm


• Spring wire diameter: 12.5 mm


• Spring rate: 274 lbs/in (4.9 kg/mm)


• Centre to centre: 504 mm (19 5/6 in)

Vehicle Fitments

•


  Honda SXS1000 Pioneer 2016–2021
