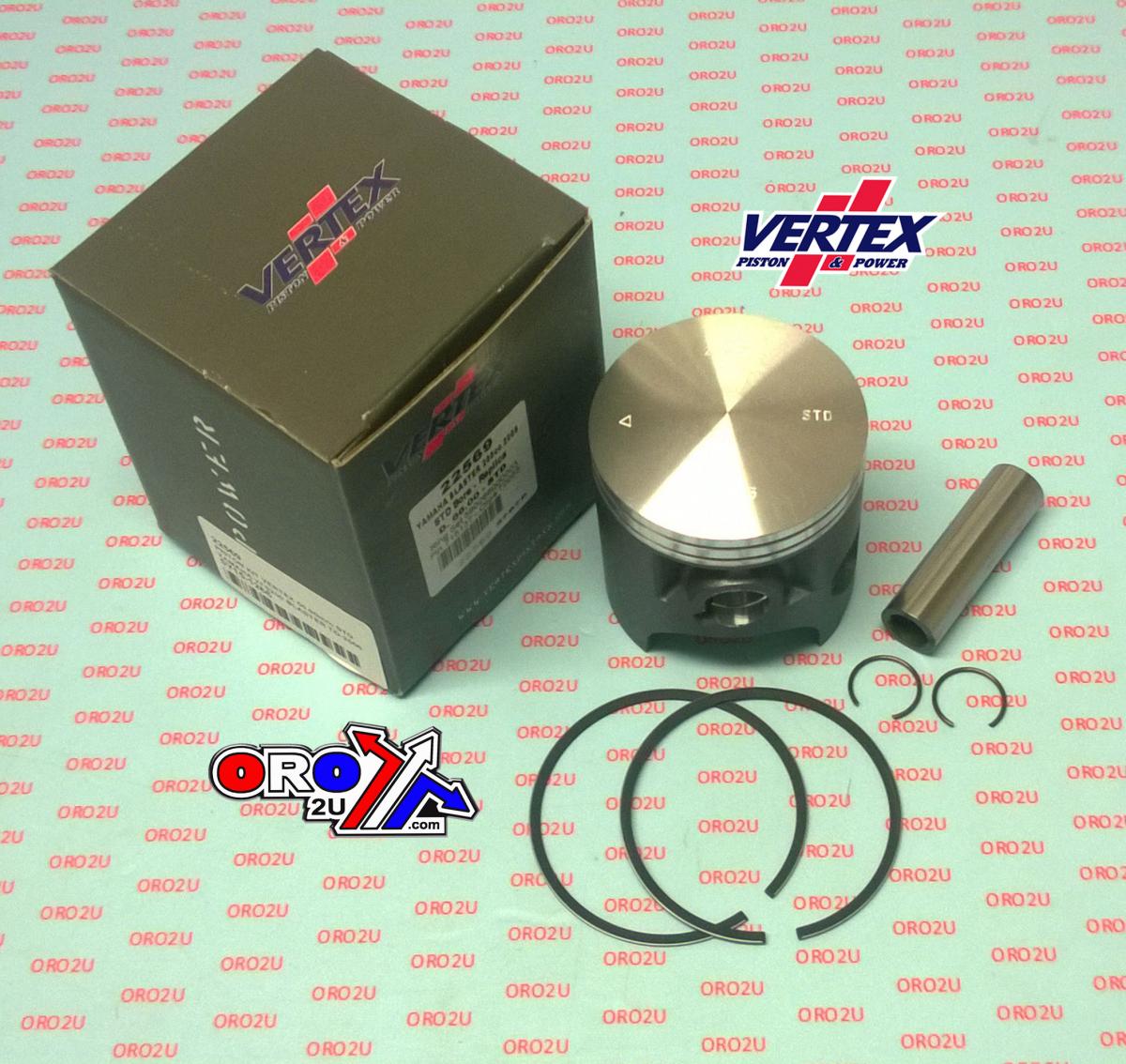

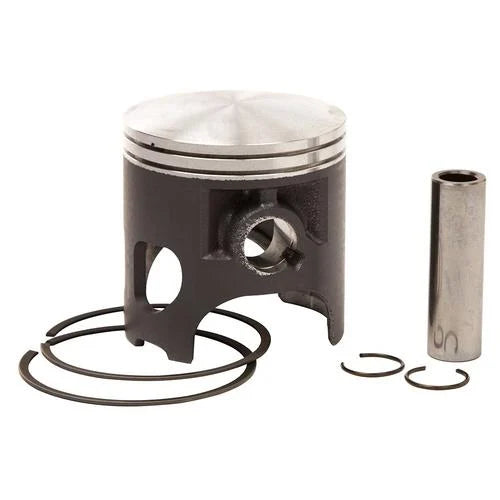

PISTON KIT VERTEX 66.00 YAMAHA YFS 200 ALL TO 2006, VERTEX 22569 BLASTER

VERTEX UK PISTON KIT           22569         (Distributed by oro2u.com)

All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.

SPECIFICATION:

• BORE SIZE.   66.00mm [STD   65.95mm]

Replacement Parts.

• Rings. 590266000003
• Pin.   715137
• Clips. 72055

Cross reference numbers ONLY.

• Piston (0.25Mm O/S) AP 2XJ-11635-01-00
• Piston (0.50Mm O/S) AP 2XJ-11636-01-00
• Piston (Std) 2XJ-11631-01-97
• Piston Ring Set (0.25Mm O/S) AP 3JM-11601-10-00
• Piston Ring Set (0.50Mm O/S) AP 3JM-11601-20-00
• Piston Ring Set (Std) 3JM-11601-00-00
• Bearing 93310-316H6-00 93310-316D6-00
• Pin, Piston 4L0-11633-00-00
• Circlip 93450-17044-00

MODEL FITMENT:

• YAMAHA YFS 200 BLASTER ALL TO 2006
