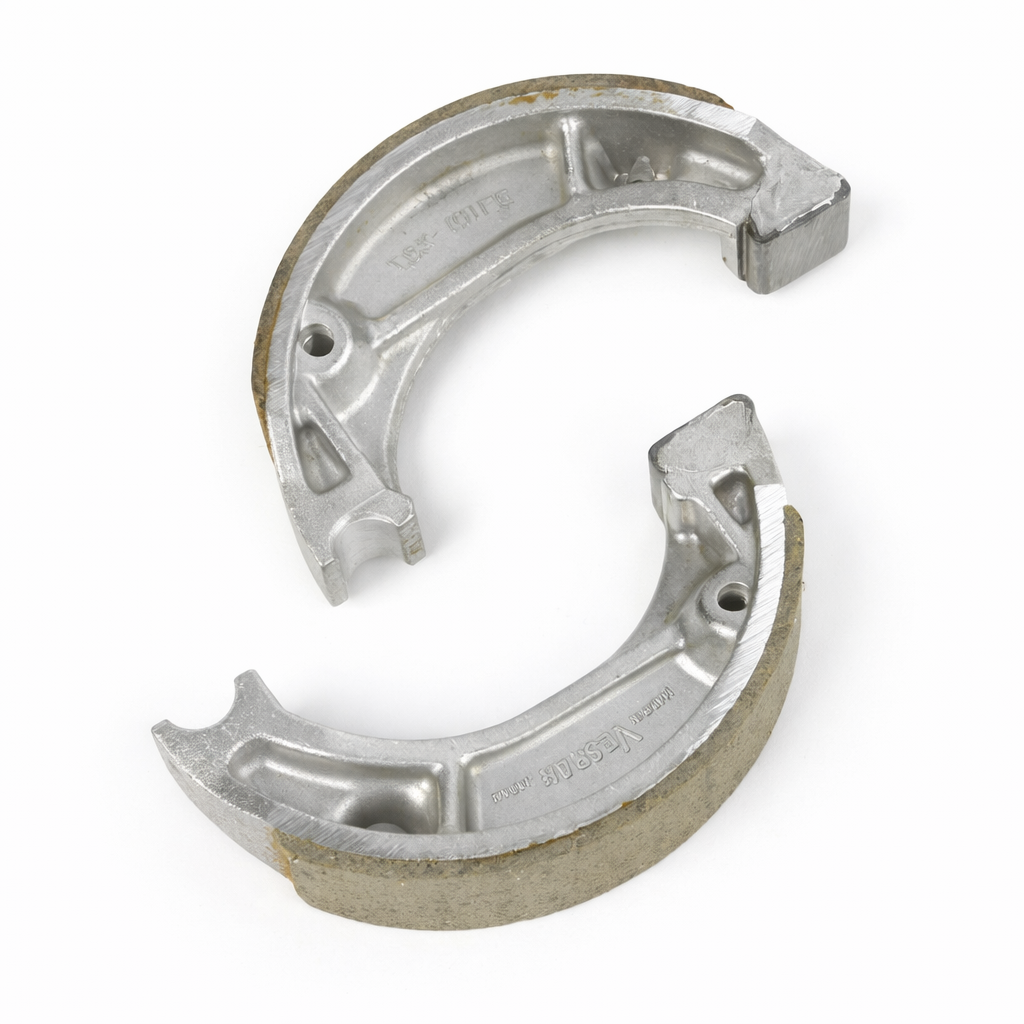

BRAKE SHOES EBC S333 H333

This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The plain motorcycle replacement design and 100% asbestos-free bonded brake lining construction balance bite, modulation and durability under heat. Supplied as a complete shoe set with OE-style brake shoe springs, it is suitable for motorcycle drum brake systems in front applications.

Features

• Radius-ground lining for accurate drum contact and consistent bedding-in


• Edge-trimmed linings for correct seating within the drum


• Lead-in and lead-out chamfers at lining ends to support smooth engagement


• Supplied with OE-style brake shoe springs

Specifications

• Product type: Brake shoe set


• Product range/series: Plain motorcycle replacement brake shoes


• Position: Front (application dependent)


• Compound / material: 100% asbestos-free bonded brake lining


• Construction / design: High-pressure die-cast aluminium platforms with bonded linings

Dimensions

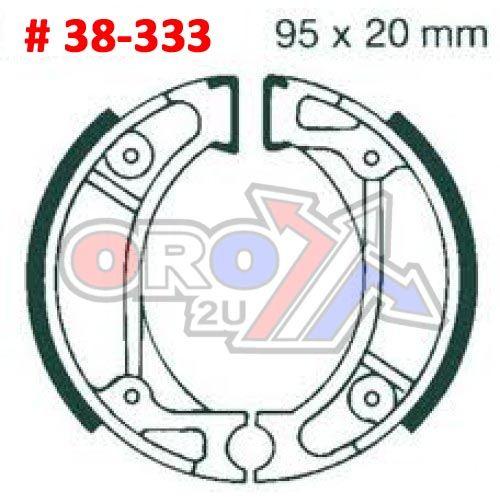

• Disc/rotor diameter: 95 mm


• Weight: 0.146 kg

Cross Reference Numbers

• H333


• S333


• VB150


• 06430-GCW-000


• 06430GCW000


• 5050953101670

Vehicle Fitment

HONDA (Front Left)

• CHF 50-1 Scoopy (2001, 2003)


• CR 80 RD|RE (1983)


• CR 80 RF (1985)


• CRF 70 F (2005, 2010)


• CRF 80 F (2004-2006, 2009, 2011-2013)


• CRF 100 F (2004, 2007, 2009, 2013)


• CRF 110 F (2013, 2016, 2018, 2021, 2025)


• NU 50 MC Runaway (1982)


• NPS 50 AF58 Zoomer (2004, 2014, 2017, 2021)


• NVS 50 Today (2001-2005)


• PK 50 Wallaro (1990-2001)


• SA 50 Vision Metin (1988-1989, 1991)


• SK 50 MM AF27 DIO (1994)


• TLM 50 F (1985)


• TLR 200 D|E (1983, 1985)


• XR 70 R (2000)


• XR 80 R (1987)


• XR 100 R (1994)

HONDA (Rear)

• NSS 250 Forza EX (2005-2008)


• NSS 250 Forza Z (2005-2012)

HONDA (Rear Left)

• CHF 50-1 Scoopy (2002, 2004-2005)


• CR 50 R (1984-1985)


• CR 60 R (1985-1986)


• CR 80 RC (1982)


• CR 80 RD|RE (1984)


• CRF 70 F (2004, 2006-2009, 2011-2013)


• CRF 80 F (2007-2008, 2010)


• CRF 100 F (2005-2006, 2008, 2010-2012)


• NH 80 Lead SS (1985)


• NH 80 MDR (1994)


• NJ 50 M TD01 Gyro-X (2000)


• NPC 50 2|3 AF59 Bite (2002-2003)


• NPS 50 AF58 Zoomer (2001-2003, 2005-2013, 2015-2016, 2018-2020)


• QR 50 M (1993-2003)


• SA 50 Vision Metin (1990, 1992-1995)


• SA 75 Vision (1989)


• SK 50 MM-II AF28 DIO SR (2000)


• SK 50 MNIII AF28 DIO-ZX (2000)


• SK 50 MR-II DIO XR AF28 (2000)


• SN 50 Giorno (1994)


• TC 50 Gyro Canopy TA02 (1996-2002)


• Tact 50 (1999)


• TLR 200 D|E (1984)


• TLR 200 G|H (1986-1987)


• XR 70 R (1997-1999, 2001-2003)


• XR 80 R (1988)


• XR 100 R (1993, 1995-2003)

HONDA (Rear Right)

• CRF 110 F (2014-2015, 2017, 2019-2020, 2022-2024, 2026)


• CRF 125 F (2014-2023)


• CRF 125 FB (2014-2023)


• NJ 50 MDY|M2|MD2 TD01 Gyro-X (2001-2002)

KYMCO (Rear Left)

• CX 50 PR50AE (1993)


• CX 50 Super PR50AC (1994-1997)


• DJX 50 KA50A (1991-1992)


• DJY 50 Refined PR50A (1993-2006)

SYM (Rear Left)

•


  DD 50 (2002-2012)
