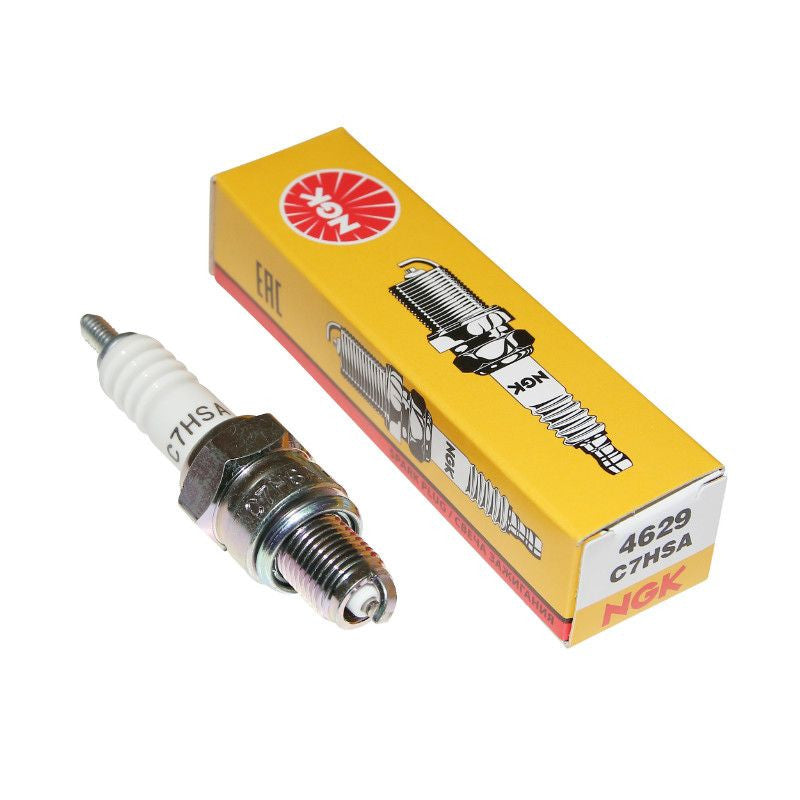

NGK SPARK PLUG C7HSA 4629

NGK Spark Plug - C7HSA

Features:

• Wide heat range achieved using copper wire instead of conventional iron cores.


• Copper dissipates heat efficiently, cooling the electrode and insulator tip.


• High-conduction copper and long nose insulator improve pre-ignition resistance.


• Designed for high-performance engines.


• Trivalent metal plating provides superior anti-corrosion and anti-seizing properties.


• Corrugated ribs prevent flashover.


• Sold individually.

Specifications:

• Heat Range: 7


• Thread Size: 10 mm


• Reach: 12.7 mm (1/2")


• Hex Size: 5/8" (16 mm)


• Seal Type: Gasket Seat


• Type: Non-Resistor


• Electrode Material: Nickel


• Terminal Type: Stud Terminal (Terminal Nut not included)


• Units: Each


• Weight: 0.12 lbs


• Alternate/OEM Part Numbers: 4629, C7HSA


• Part Number: 37-C7HSA (oro2u.com)

Compatible Models:

E-Ton:

• 2001–2003 Yukon 150

Honda:

• ATC70: 1974–1981


• C100 Super Cub 50: 1959–1962


• C102 Super Cub: 1960–1962


• C105T Trail: 1962–1965


• C110 Super Sports Cub 50: 1960–1962


• C70 Passport: 1980–1983


• CA100 Honda: 1962–1970


• CA102 Honda: 1962–1969


• CA105T Trail 55: 1963–1965


• CA110 Sport: 1962–1969


• CL200T Scrambler: 1980–1982


• CL70K Scrambler: 1969–1973


• CM185T Twinstar: 1978–1979


• CM200T Twinstar: 1980–1981


• CT70 Trail/Trail 70H: 1969–1975


• P50 Little Honda: 1967–1968


• QA50K: 1970–1975


• SL70K Motosport: 1971–1973


• XL100S: 1979–1981


• XL70K: 1974–1975


• XL75: 1975–1979


• XL80S: 1980–1981


• XR100: 1981


• XR75K: 1973–1975


• XR80: 1979–1981

Kymco:

• Agility 50 4T: 2016–2017


• Filly 50: 2002–2005


• Mongoose 90: 2004–2008


• Mongoose Jr. 90: 2003

Yamaha:

• YFA1 Breeze: 1989–2002


• YFM100 Moto 4 Champ: 1987–1991


• YFM80 Badger: 1995–2001


• YFM80 Moto 4: 1985–1993

Product Summary:

• Description: NGK 4629 C7HSA Nickel Spark Plug, designed for a wide range of small engines and high-performance applications.


• Details: Standard NGK plug designed for longer life and optimum performance. The nickel construction and copper core ensure excellent heat dissipation, while the alumina silicate ceramic insulator enhances durability. Triple-sealed to prevent leakage, with corrugated ribs to prevent flashover.
