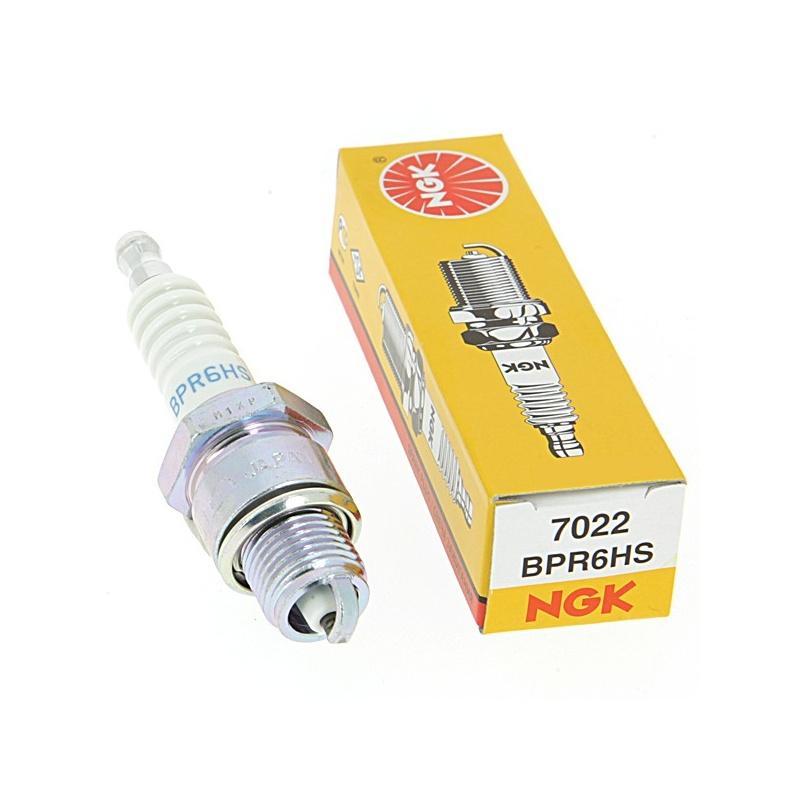

NGK SPARK PLUG BPR6HS 7022 NG7022

NGK Spark Plug - BPR6HS

Features:

• NGK's wide heat range results from using copper wire in place of the iron cores found in many conventional plugs.


• Copper dissipates heat quicker, cooling the electrode and insulator tip.


• Raised pre-ignition rating with high-conduction copper and long-nose insulator.


• Meets the requirements of high-performance engines.


• Sold individually.

Specifications:

• Heat Range: 6


• Thread Size: 14 mm


• Type: Resistor


• Units: Each


• Weight: 0.12 lbs


• Reach: 12.7 mm (1/2")


• Hex Size: 13/16" (20.6 mm)


• Seat Type: Gasket Seat


• Tip Configuration: Extended Projected Tip


• Gap: .028" (0.7 mm)

Alternate/OEM Part Numbers:

• 7022


• BPR6HS

Part Number: 37-BPR6HS

Compatible Vehicles:

Harley-Davidson:

• Roadster - XLS: 1985–1979


• Sportster - XLCH 1000: 1979


• Sportster - XLH 1000: 1985–1979


• Sportster - XLX 1000: 1985–1983

Honda:

• NB50M Aero: 1987–1983


• NH125 Aero: 1984


• NH80MD Aero: 1985–1983


• NN50M Gyro: 1984


• NQ50 Spree: 1985–1984

Details:

• Traditional Spark Plug: 14mm Thread Size, 12.7mm (1/2") Reach, 13/16" (20.6mm) Hex Size, Gasket Seat, Resistor, Removable Terminal Nut, JIS Height, Extended Projected Tip, .028" (0.7mm) Gap, Heat Range 4.

Additional Features:

• Constructed for longer life and optimum performance.


• Corrugated Ribs: Prevent flashover.


• Pure Alumina Silicate Ceramic Insulator: Provides superior strength and better heat transfer.


• Copper Core: Aids in heat removal.
