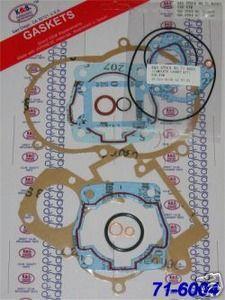

GASKET FULL KTM50 SX PRO-JS/SR, SET COMPLETE K&S 71-6004

Complete top and bottom end gasket set for rebuilding the engine on KTM 50 SX Pro-Jr. and Pro-Sr. LC models. It is a direct replacement set supplied with the required gaskets, O-rings and washers for engine reassembly.

Features

• For complete top and bottom end engine gasket replacement


• Suitable for rebuilding the whole engine


• Direct replacement for the original engine gaskets, O-rings and washers

Specifications

• Cylinder head O-ring sizes: 53.7 x 1.78 mm and 94.97 x 1.78 mm


• Cylinder base gasket thicknesses: 0.2 mm and 0.5 mm


• Exhaust pipe O-ring size: 32 x 3 mm


• Kickstarter O-ring size: 12.5 x 1.5 mm


• Oil plug gasket size: 11 x 22 x 1 mm


• Oil drain plug washer size: 10 x 14 x 1 mm


• Copper gasket size: 6 x 12 x 2 mm


• Copper washer size: 6 x 10 mm

Kit Contents

• 1 x Cylinder head O-ring, 53.7 x 1.78 mm


• 1 x Cylinder head O-ring, 94.97 x 1.78 mm


• 1 x Cylinder base gasket, 0.2 mm


• 1 x Cylinder base gasket, 0.5 mm


• 1 x Engine case gasket


• 1 x Clutch cover gasket


• 1 x Intake valve gasket


• 1 x Exhaust gasket for 2001 models


• 1 x Exhaust gasket for models except 2001


• 1 x Water pump cover gasket


• 1 x Exhaust pipe O-ring, 32 x 3 mm


• 1 x Kickstarter O-ring, 12.5 x 1.5 mm


• 1 x Oil plug gasket, 11 x 22 x 1 mm


• 1 x Oil drain plug washer, 10 x 14 x 1 mm


• 2 x Copper gaskets, 6 x 12 x 2 mm, for 2001 models


• 1 x Copper washer, 6 x 10 mm

Cross-Reference OEM Part Numbers

•


  28-9610




Vehicle Fitments

• KTM 50 SX Pro-Jr. LC, 2001-2008


• KTM 50 SX Pro-Sr. LC, 2001-2008
