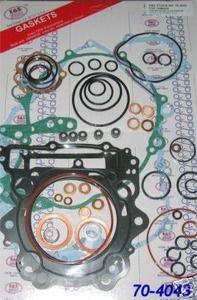

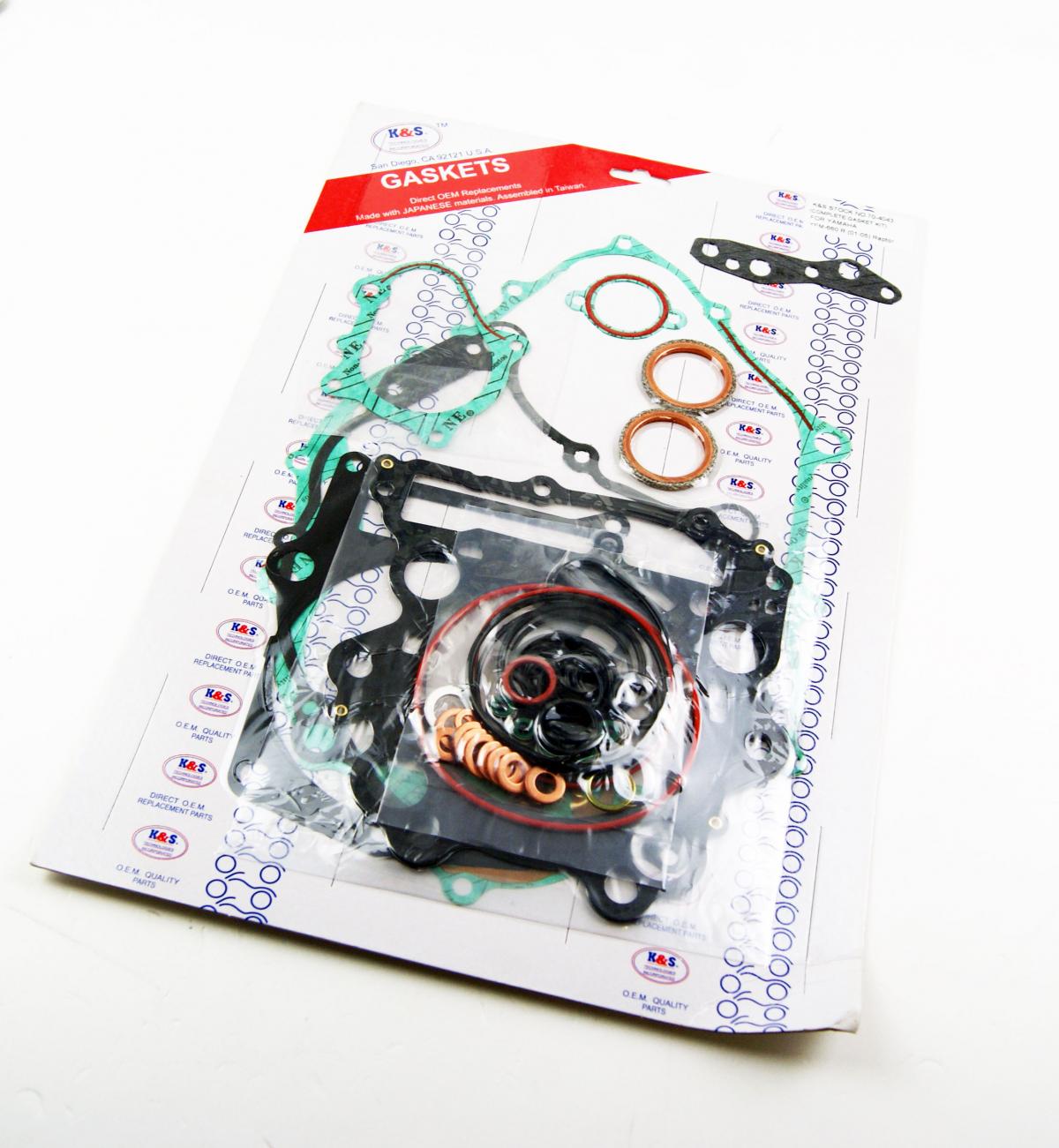

GASKET FULL SET 01-06 YFM660R K&S 70-4043 KIT

K&S 70-4043 is a 54-piece direct replacement engine sealing set for rebuilding the top end and bottom end of Yamaha YFM660 Raptor engines. It provides the sealing components required for a full engine rebuild.

Features

• Supports a complete top-end and bottom-end engine rebuild


• Direct replacement design for the original engine sealing components


• Manufactured using proprietary gasket material compounds

Specifications

• 54-piece set


• Gasket materials sourced from Japan and the United States

Kit Contents

• 1 x Cylinder head gasket


• 1 x Cylinder base gasket


• 1 x Crankcase cover gasket 2


• 1 x Crankcase cover gasket 3


• 1 x Generator cover gasket


• 1 x Oil pump cover gasket


• 1 x Tensioner case gasket


• 1 x Oil strainer seal


• 2 x Exhaust pipe gaskets


• 5 x Valve stem seals


• 2 x Rocker shaft O-rings


• 1 x CH screw plug O-ring


• 2 x CH side cover 2 O-rings


• 1 x CH side cover 3 O-ring


• 1 x Cylinder O-ring


• 1 x Tensioner cap O-ring


• 1 x Water pump O-ring


• 1 x Impeller shaft O-ring


• 1 x Water pump joint O-ring


• 1 x Radiator hose pipe O-ring


• 1 x Thermostat cover O-ring


• 4 x Oil pump O-ring / dowel pin O-rings


• 1 x Oil pipe O-ring


• 1 x Oil hose O-ring


• 2 x Carb joint O-rings


• 1 x Dowel pin O-ring


• 2 x Screw plug O-rings


• 2 x Shift cam fork O-rings


• 1 x Transmission O-ring


• 1 x Flange bolt gasket


• 1 x Clutch bolt gasket


• 1 x Screw plug gasket


• 1 x Delivery pipe gasket

Cross-Reference OEM Part Numbers

• K&S 70-4043


• 28-608

Vehicle Fitments

•


  Yamaha YFM660 Raptor, 2001-2005
