R/H RACK & PINION REBUILD KIT, ALLBALLS 51-1054-R, Can-Am

Kit Contents

Rack and Pinion End Kit - Right Hand Side - 0430-0748 ALLBALLS 51-1054-R

UTV steering rack rod ends save customers hundreds of dollars on the cost of a complete steering rack assembly. The inner rod assemblies have increased shaft diameters for improved strength. Each kit includes heavy-duty inner and outer rod ends with a replacement boot, clamps, and any required lock washers. Outer tie rod ends are also available individually.

Description & Quantity per Kit:

• Boot: 1


• Miscellaneous Part: 1


• Miscellaneous Part: 1


• Tie Rod: 2


• Tie Rod End: 1

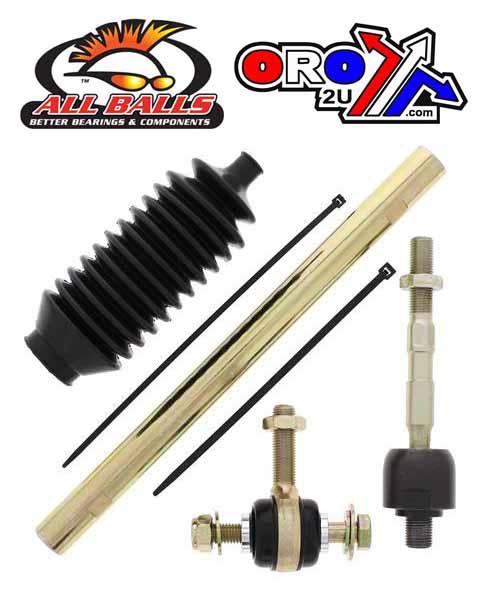

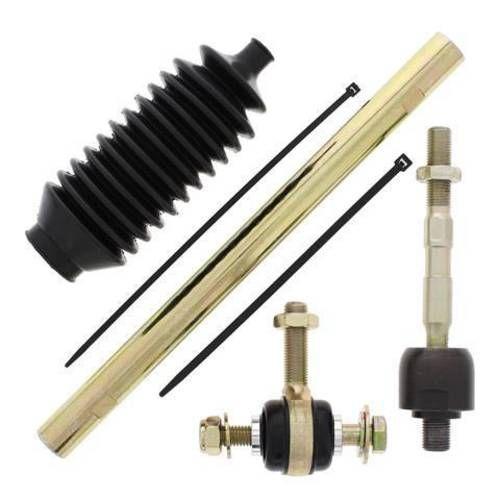

Included Items:

• (1) 14mm-1.50 right-hand thread tie rod end


• (1) 14mm-1.50 hex nut


• (1) 12mm-1.75 x 90mm hex head bolt


• (1) 12mm-1.75 nyloc nut


• (2) 12mm ID x 25mm OD flat washers


• (1) 12mm ID x 32mm OD flat washer


• (1) 16mm-1.50/14mm-1.50 right-hand thread rack end


• (1) 14mm-1.50 x 310mm internal right-hand thread tie rod


• (1) Black rubber boot


• (2) 7 1/2 in. black plastic cable ties

Part No.: 17-7073.A (oro2u.com)

Fitment List

Can-Am

• 2013-2018 Can-Am Maverick 1000 STD


• 2016-2017 Can-Am Maverick 1000 TURBO


• 2015-2016 Can-Am Maverick 1000 TURBO XDS


• 2016 Can-Am Maverick 1000 TURBO XRS


• 2016-2017 Can-Am Maverick 1000 XC


• 2015-2016 Can-Am Maverick 1000 XDS


• 2014-2018 Can-Am Maverick 1000 XMR


• 2013-2015 Can-Am Maverick 1000 XRS


• 2017 Can-Am Maverick 1000 XXC


• 2015-2018 Can-Am Maverick MAX 1000 STD


• 2016-2017 Can-Am Maverick MAX 1000 TURBO


• 2015-2017 Can-Am Maverick MAX 1000 TURBO XDS


• 2016-2017 Can-Am Maverick MAX 1000 TURBO XRS


• 2016 Can-Am Maverick MAX 1000 XC/XXC


• 2015-2016 Can-Am Maverick MAX 1000 XDS


• 2017-2018 Can-Am Maverick MAX 1000 XMR


• 2015 Can-Am Maverick MAX 1000 XRS

Right Rack & Pinion Rebuild Kit

ALLBALLS 51-1054-R

Includes heavy-duty tie rod outer end and boot.
