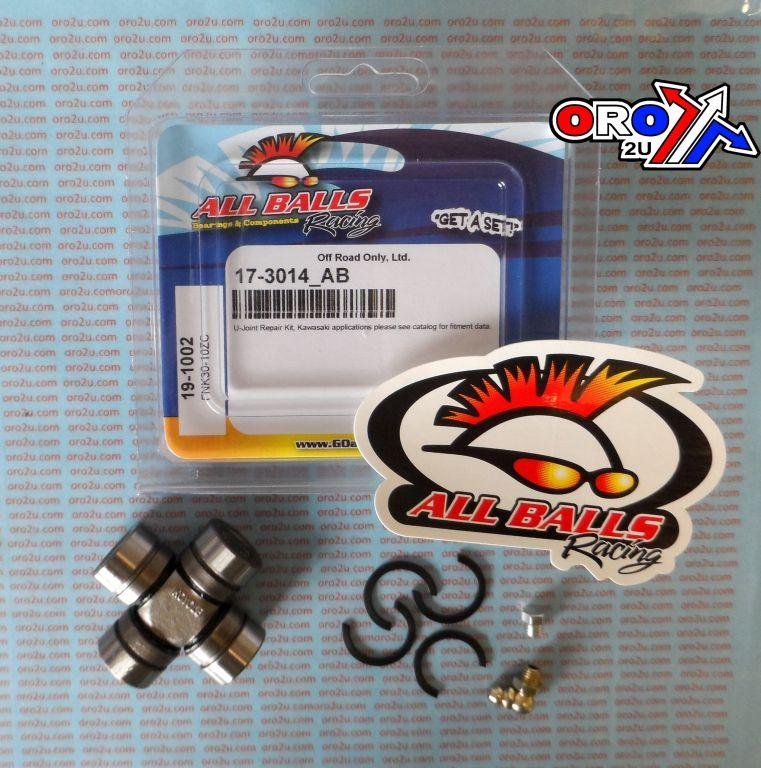

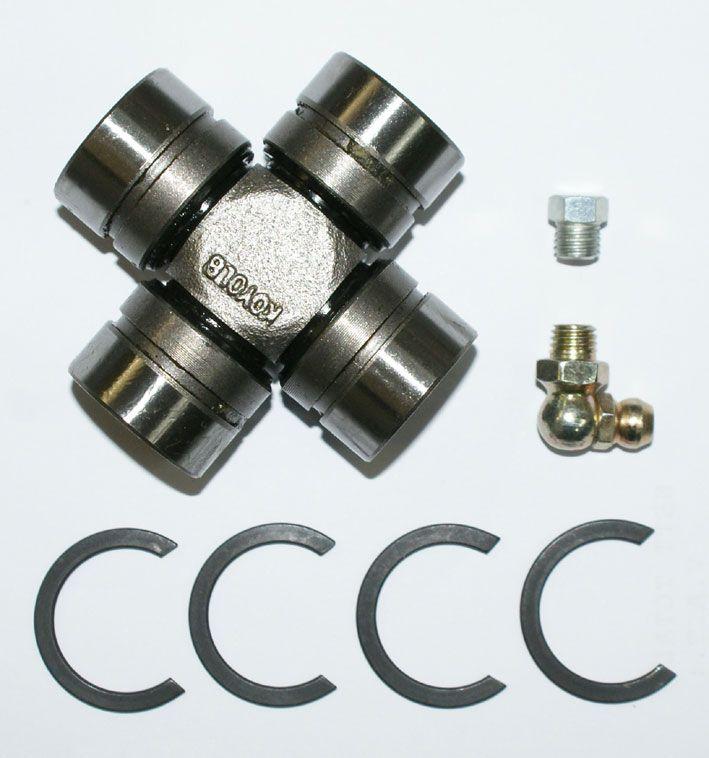

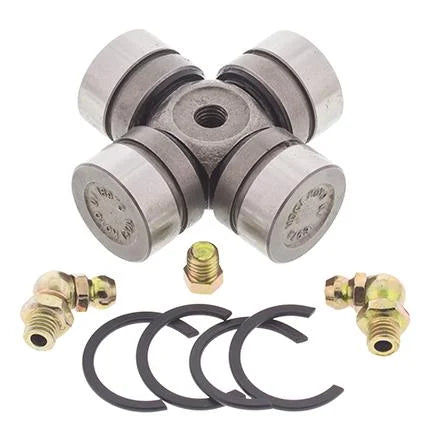

UNIVERSAL JOINT KAWASAKI, ALLBALLS 19-1002

Universal UV Joint AllBalls 19-1002

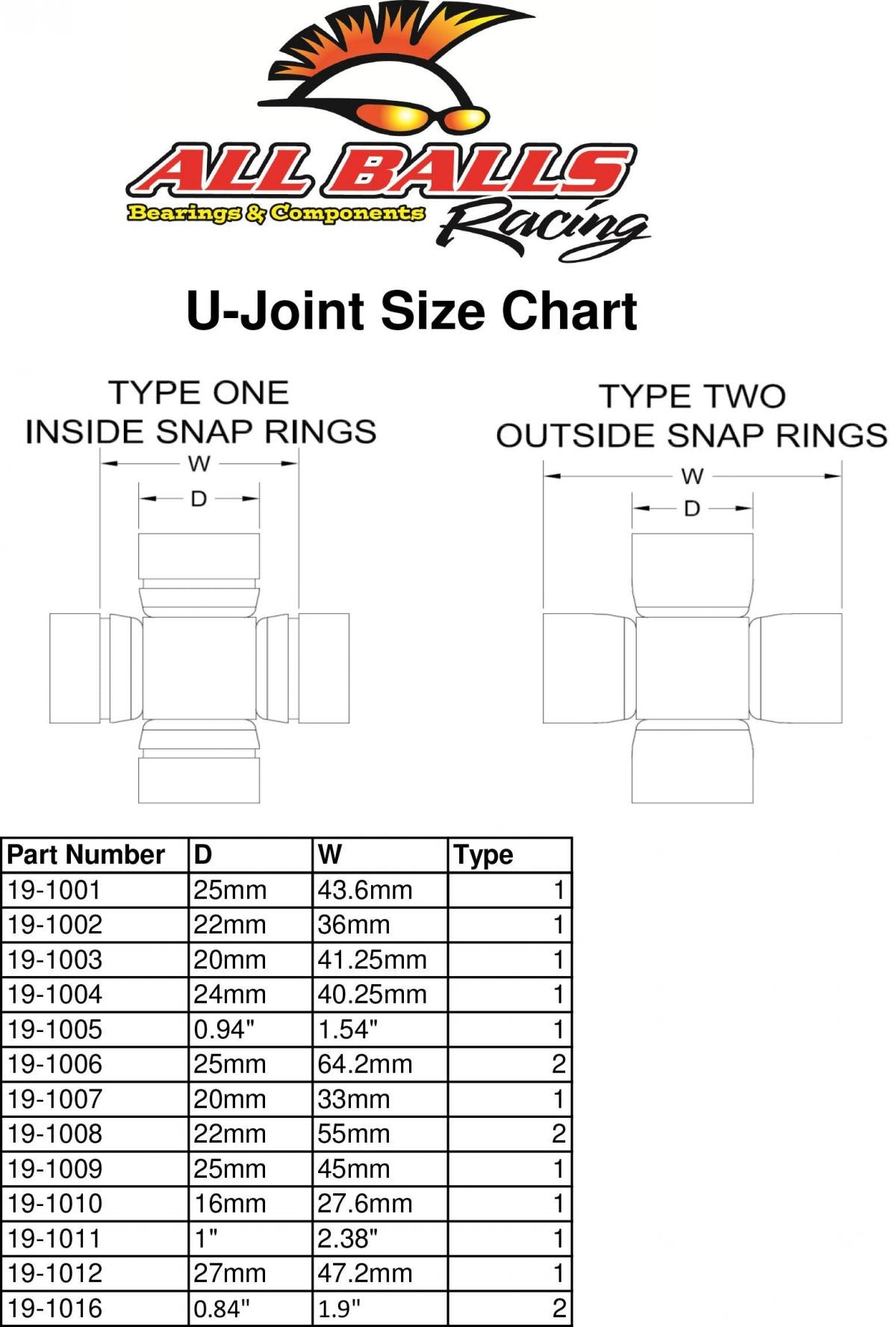

Specifications:

• Diameter: 22mm


• Width: 36mm (with inside snap rings)

Key Features:

• U-Joints are cold forged from SCM-415 steel.


• Precision ground journals case-hardened to HRC58-61.


• Pre-greased with high-temperature Lithium Complex 3 grease.


• Zerk and grease channels in the bearing cup evenly distribute grease.


• Includes a cap plug to eliminate grease zerk for low-clearance applications.


• Honda yoke assemblies upgraded from 17mm to 19mm cross diameters, featuring stainless steel clamps and high-quality neoprene rubber boots for long life and abrasion resistance.

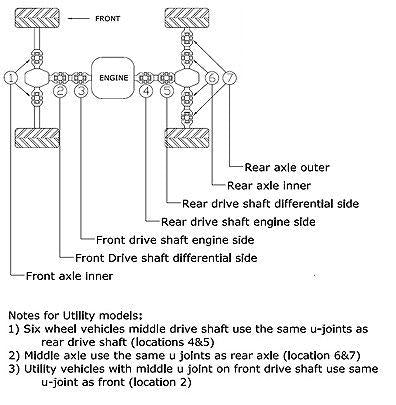

U-Joint Applications

Front Drive Shaft - Differential Side (Ref 2):

Kawasaki:

• Mule 2510 4x4 (2000)


• Mule 2510 Diesel (2000-2002)


• Mule 3010 4x4 (2001-2008)


• Mule 3010 Diesel (2001-2008)


• Mule 4010 4x4 (2009-2018)


• Mule 4010 4x4 Diesel (2009-2013)


• Mule 610 4x4 (2005-2016)


• Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)


• Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)


• MULE SX (2017-2018)


• Teryx 750 4x4 (2008-2013)

Front Drive Shaft - Engine Side (Ref 3):

Kawasaki:

• Mule 2510 4x4 (2000)


• Mule 2510 Diesel (2000-2002)


• Mule 3010 4x4 (2001-2008)


• Mule 3010 Diesel (2001-2008)


• Mule 4010 4x4 (2009-2018)


• Mule 4010 4x4 Diesel (2009-2013)


• Mule 610 4x4 (2005-2016)


• Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)


• Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)


• Teryx 750 4x4 (2008-2013)

Rear Drive Shaft - Differential Side (Ref 5):

Kawasaki:

• Mule 610 4x4 (2005-2016)


• Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)


• Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)

Rear Drive Shaft - Engine Side (Ref 4):

Kawasaki:

• KVF300A Prairie 4x4 (1999-2002)


• KVF300B Prairie 2x4 (1999-2002)


• KVF400A Prairie 4x4 (1997-1998)


• KVF400B Prairie (1998)


• KVF400C Prairie 4x4 (1999-2002)


• KVF400D Prairie (1999-2002)


• Mule 610 4x4 (2005-2016)


• Mule 610 4x4 VIN JK1AFEA1 9B547191 and lower (2009)


• Mule 610 4x4 VIN JK1AFEA1 9B547192 and above (2009)
