UNIVERSAL JOINT POLARIS, BRONCO AT-08501ATV503

Universal U-Joint UV Bronco AT-08501

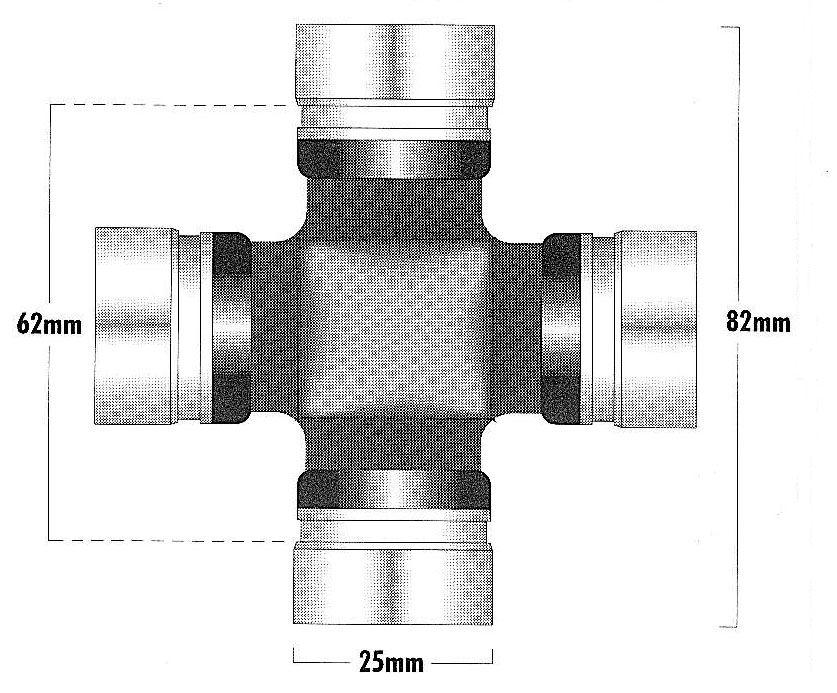

Specifications:

• Diameter: 1 in.


• Width: 2.38 in. (with inside snap rings)

Key Features:

• Cold-forged from SCM-415 steel.


• Precision-ground journals case-hardened to HRC58-61.


• Pre-greased with high-temperature Lithium Complex 3 grease.


• Zerk and grease channels in bearing cup evenly distribute grease.


• Includes a cap plug to eliminate grease zerk for low-clearance applications.


• Honda yoke assemblies upgraded from 17mm to 19mm cross diameters.


• Stainless steel clamps and high-quality neoprene rubber boots for long life and abrasion resistance.

Part Number: 17-3011.BR (oro2u.com)

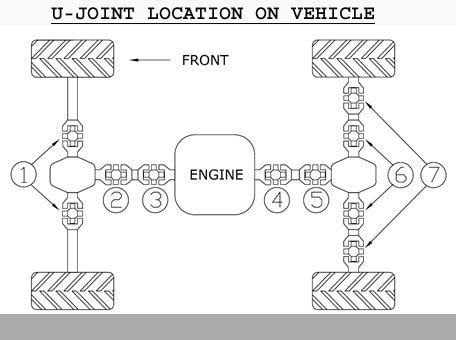

Polaris Locations on Vehicle (LOC):

• Xplorer 250 4X4 2000: LOC 2 & 3


• Sportsman 335 1999: LOC 6


• Sportsman 335 AA AB 2000: LOC 6


• Worker 335 1999: LOC 6


• Diesel 455 4x4 1999: LOC 6


• Sportsman 500 4x4 (Outside Clips) 1996: LOC 6

Front Drive Shaft Differential and Engine Side Only (For the following models):

Polaris:

• Xplorer 250 4x4 (2000)


• Ranger 500 6x6 (2000)


• Sportsman 500 6x6 (2000)

Rear Axle Inner Only (For the following models):

Polaris:

• Sportsman 335 4x4 (1999-2000)


• Diesel 455 4x4 (1999)


• Sportsman 500 (1996)


• Sportsman 500 (1997)


• Sportsman 500 4x4 (1998)


• Xplorer 500 (1997)

Cross Reference Numbers:

• AllBalls: 19-1011
