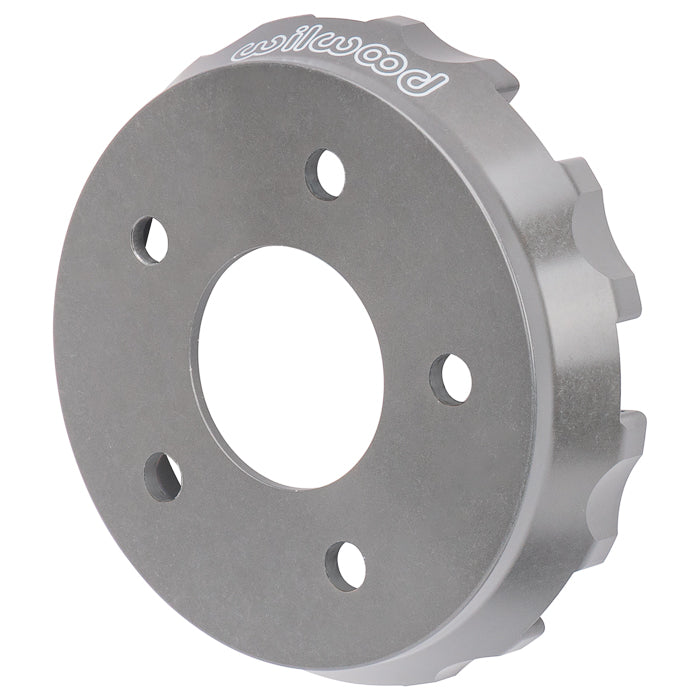

WILWOOD ROTOR TOP HAT DYNAMIC LUG DRIVE HUB 170-17745
WILWOOD ROTOR TOP HAT DYNAMIC LUG DRIVE HUB 170-17745
The Wilwood Dynamic Lug Drive Rotor Top Hat is a rotor mounting hub designed for Big Brake applications, using a dynamic lug-drive system that allows the brake rotor to move independently of the hat as it expands and contracts through repeated heat cycles. This arrangement removes thermally generated stress from the rotor attachment points, helping the rotor remain flatter and run truer while maintaining consistent brake response and pedal feel. Spring-loaded replaceable stainless steel inserts protect the aluminium hat from wear, while a single snap-ring retains the rotor without conventional rotor mounting bolts.
Features
-
Dynamic lug-drive rotor mounting system
-
Allows the rotor to move independently of the hat during thermal expansion and contraction
-
Removes thermally generated stress from rotor attachment points
-
Helps rotors remain flatter and run truer
-
Maintains consistent brake response and pedal feel
-
Helps eliminate pad knockback and rotor drag
-
Prevents hat distortion caused by rotor thermal expansion and shrinkage
-
Eliminates bolt-hole alignment issues associated with replacing rotors on previously used hats
-
Spring-loaded replaceable stainless steel inserts protect the hat from wear
-
Inserts withstand loading from the stainless steel rotor when brake torque is applied
-
Large single snap-ring retains the rotor in the hat
-
Eliminates the need to torque or safety-wire rotor mounting bolts
-
Compatible discs are additionally drilled to reduce unnecessary rotating driveline mass
Specifications
-
Mount Hole Type: Lug
-
Rotor Bolt Circle: 8 Lug x 7.18 in
-
Hat Offset: 0.730 in
-
Centre Registration: 2.68 in
-
Material: Aluminium
-
Mount Style: Dynamic Lug Mount
-
Finish: Type III Anodised
-
Hat Bolt Circle 1: 5 x 4.50
Cross-Reference OEM Part Numbers
-
Wilwood: 170-17745
