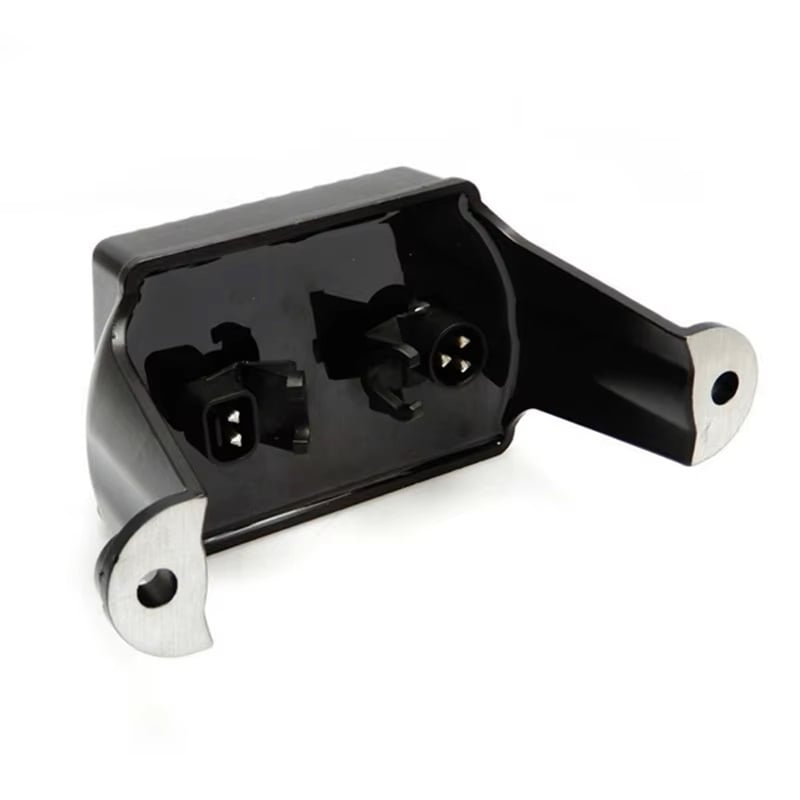

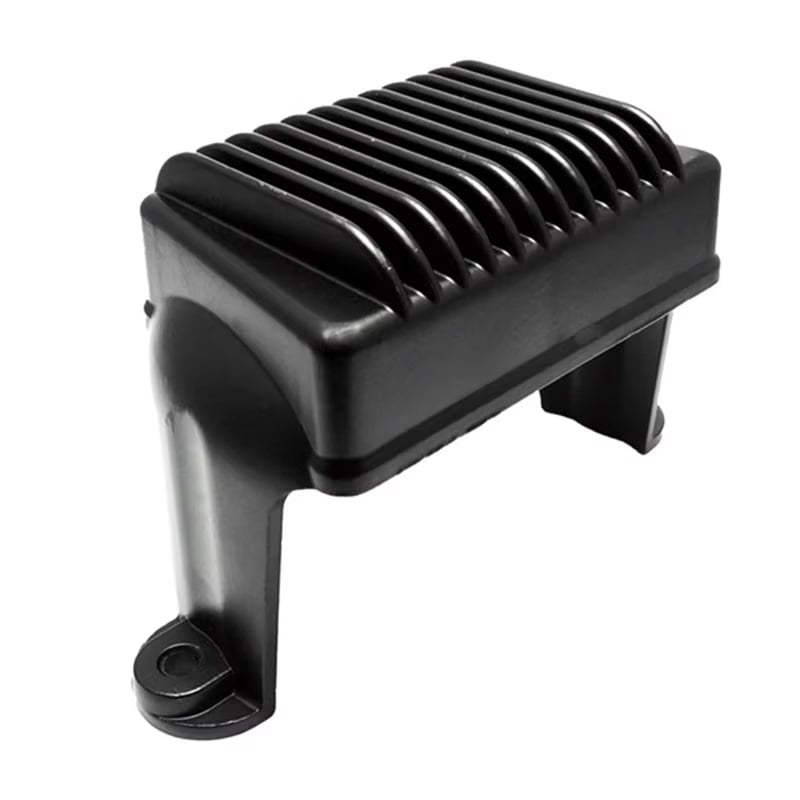

VOLTAGE REGULATOR 09-16 HARLEY-DAVIDSON TOURING 74505-09

•


  Compatible with Harley Davidson Touring Models Designed for Harley Davidson Touring, Electra Glide, Road Glide, King, and Ultra models, this regulator rectifier ensures seamless integration with your motorcycle's electrical system.





•


  Perfect Fit with OEM Numbers 74505-09 and 74505-09A Matches exact OEM specifications with Model Numbers 74505-09 and 74505-09A, providing a direct replacement for original parts without compatibility issues.




Harley-Davidson

• Electra Glide Classic FLHTC 2009-2013


• Electra Glide Police FLHTP 2016


• Electra Glide Standard FLHT 2009


• Electra Glide Ultra Classic FLHTCU • 2009-2016


• Electra Glide Ultra Classic CVO/SE FLHTCUSE 4 2009


• Electra Glide Ultra Classic CVO/SE FLHTCUSE 5 2010


• Electra Glide Ultra Classic CVO/SE FLHTCUSE 6 2011


• Electra Glide Ultra Classic CVO/SE FLHTCUSE 7 2012


• Electra Glide Ultra Classic CVO/SE FLHTCUSE 8 2013


• Electra Glide Ultra Classic Low FLHTCUL 2015-2016


• Electra Glide Ultra Limited FLHTK 2010-2016


• Electra Glide Ultra Limited Low FLHTKL 2015-2016


• Road Glide FLTR 2009


• Road Glide FLTRX 2015-2016


• Road Glide Custom FLTRX 2010-2013


• Road Glide Custom CVO/SE FLTRXSE 2012


• Road Glide Custom CVO/SE FLTRXSE 2 2013


• Road Glide CVO/SE FLTRSE 3 2009


• Road Glide Special FLTRXS 2015-2016


• Road Glide Ultra FLTRU 2011-2013, 2016


• Road Glide Ultra CVO/SE FLTRUSE 2011


• Road King FLHR 2009-2016


• Road King Classic FLHRC 2009-2013


• Road King CVO/SE FLHRSE 2014


• Road King CVO/SE FLHRSE 5 2013


• Street Glide FLHX 2014-2016


• Street Glide CVO/SE FLHXSE 2015-2016


• Street Glide Special FLHXS 2014-2016

Features:

• Unmatched reliability and performance from high-tech materials.


• Manufactured to precise standards for total confidence in rebuilds.


• Meets or exceeds OEM quality.


• Direct OEM replacement.


• Best value for money with a satisfaction guarantee.


• Easy to install; professional installation recommended if unsure.


• Note: No return on electrical parts

Cross Reference Numbers Only:

This voltage regulator rectifier is designed as a direct replacement for the charging-system regulator fitted to compatible Harley-Davidson Touring motorcycles. It regulates electrical output and rectifies charging current to support correct battery charging and operation of the motorcycle’s electrical system. It is suitable for the verified Electra Glide, Road Glide, Road King and Street Glide applications listed below.

Features

• Direct OEM-style replacement for the original voltage regulator rectifier.


• Regulates charging-system output and helps prevent battery overcharging.


• Improved heat-sink design assists with cooling and heat dissipation.


• Manufactured to precise standards for reliable electrical performance.


• Designed to meet or exceed equivalent OEM quality requirements.


• Plug-and-play installation using the original-style electrical connections.


• Straightforward installation; professional installation is recommended if the installer is unsure.


• Supplied as a cost-conscious replacement option with a satisfaction guarantee.

Specifications

• Electrical system: 12 V DC.


• Regulated output voltage: 14.5 V ± 0.5 V.


• Rated output: 50 A.


• Finish: Black.


• Housing material: Aluminium.


• Approximate dimensions: 170 × 87 × 95 mm.

Cross-Reference OEM Part Numbers

• 74505-09.


• 7450509A.


• 2112-0793.

Vehicle Fitments

• Harley-Davidson Electra Glide Classic FLHTC — 2009-2013.


• Harley-Davidson Electra Glide Police FLHTP — 2016.


• Harley-Davidson Electra Glide Standard FLHT — 2009.


• Harley-Davidson Electra Glide Ultra Classic FLHTCU — 2009-2016.


• Harley-Davidson Electra Glide Ultra Classic CVO/SE FLHTCUSE4 — 2009.


• Harley-Davidson Electra Glide Ultra Classic CVO/SE FLHTCUSE5 — 2010.


• Harley-Davidson Electra Glide Ultra Classic CVO/SE FLHTCUSE6 — 2011.


• Harley-Davidson Electra Glide Ultra Classic CVO/SE FLHTCUSE7 — 2012.


• Harley-Davidson Electra Glide Ultra Classic CVO/SE FLHTCUSE8 — 2013.


• Harley-Davidson Electra Glide Ultra Classic Low FLHTCUL — 2015-2016.


• Harley-Davidson Electra Glide Ultra Limited FLHTK — 2010-2016.


• Harley-Davidson Electra Glide Ultra Limited Low FLHTKL — 2015-2016.


• Harley-Davidson Road Glide FLTR — 2009.


• Harley-Davidson Road Glide FLTRX — 2015-2016.


• Harley-Davidson Road Glide Custom FLTRX — 2010-2013.


• Harley-Davidson Road Glide Custom CVO/SE FLTRXSE — 2012.


• Harley-Davidson Road Glide Custom CVO/SE FLTRXSE2 — 2013.


• Harley-Davidson Road Glide CVO/SE FLTRSE3 — 2009.


• Harley-Davidson Road Glide Special FLTRXS — 2015-2016.


• Harley-Davidson Road Glide Ultra FLTRU — 2011-2013 and 2016.


• Harley-Davidson Road Glide Ultra CVO/SE FLTRUSE — 2011.


• Harley-Davidson Road King FLHR — 2009-2016.


• Harley-Davidson Road King Classic FLHRC — 2009-2013.


• Harley-Davidson Road King CVO/SE FLHRSE — 2014.


• Harley-Davidson Road King CVO/SE FLHRSE5 — 2013.


• Harley-Davidson Street Glide FLHX — 2014-2016.


• Harley-Davidson Street Glide CVO/SE FLHXSE — 2015-2016.


• Harley-Davidson Street Glide Special FLHXS — 2014-2016.

Important Information

•


  Electrical parts are not returnable.
