VALVE STEM SEAL 5.0MM KIBBLEWHITE 71015-100 RED VITON 09289-05011
VALVE STEM SEAL 5.0MM KIBBLEWHITE 71015-100 RED VITON 09289-05011

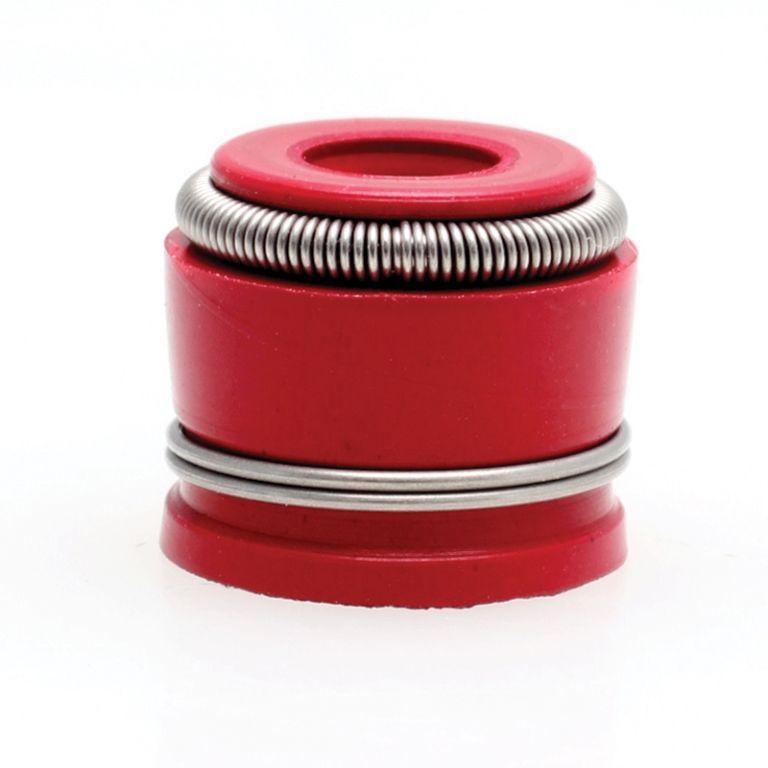

The KPMI® Red Viton® valve stem seal (Part No. 65-333.500.EACH) is a high-performance universal component designed for a variety of motorcycle and ATV applications. Manufactured from 100% Red Viton®, this seal is engineered to withstand extreme heat, corrosive combustion gases, and petroleum exposure while maintaining excellent sealing capabilities. It is the ideal choice for high-performance and racing environments where long-lasting durability and precise sealing are critical.
Features
-
Made from premium 100% Red Viton® for high heat and chemical resistance
-
Optimised for maximum valve lift and long service life
-
Prevents oil intrusion into the combustion chamber
-
Maintains elasticity and sealing under extreme conditions
-
Designed for applications with a 5.0mm valve stem and 0.340" guide diameter
-
Precision-engineered for reliable performance in racing and high-load applications
-
Supersedes Part No. 65-3707
Specifications
-
Material: Red Viton®
-
Stem Diameter: 5.0 mm
-

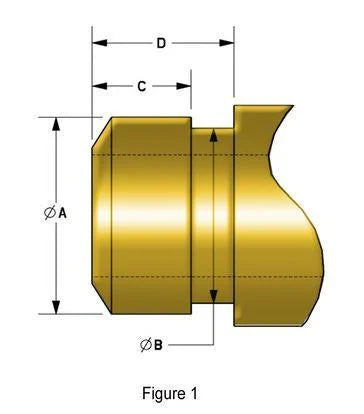

Guide Diameter (A): 0.340" ± 0.005"
-
Overall Length: 0.350"
-
Seal Outer Diameter: 0.405"
-
Measurement B: 0.303"
-
Measurement C: 0.125"
-
Measurement D: 0.230"
-
Quantity: Sold individually (also available in packages of 100)
-
OEM Reference Part Number: 09289-05011
Cross-Reference OEM Part Numbers
-
09289-05011
Vehicle Fitments
HONDA
-
XR50 2000–2003
-
CRF450R 2002–2008 (Exhaust Only)
-
CRF450R 2009–2013
-
CRF450X 2005–2013 (Exhaust Only)
KAWASAKI
-
KLX400 2001–2006
-
KFX400 2001–2006
-
ZX-10R 1988–1990
-
ZX-11 / ZRX 1100 / ZRX 1200 1999–2005
-
ZX-12R 2000–2005
-
ZX-14 2006–2011
-
Kawasaki PWC 2006–2019
SUZUKI
-
GS 750 E/ES/L/T 1980–1986 (5mm conversion)
-
GSX-R 750 1980–1992
-
GSX-R 1100 1986–1992
-
GS 1150 1984–1986 (5mm conversion)
-
GSX-1300R Hayabusa 1999–2019
Note
Use the provided diagram and specifications to confirm valve guide dimensions for a proper fit.
