TI GR5 BOLTS DISC KAW/SUZ KIT/8, TITANIUM FRONT & REAR RM KX KXF, / FIR BRAND

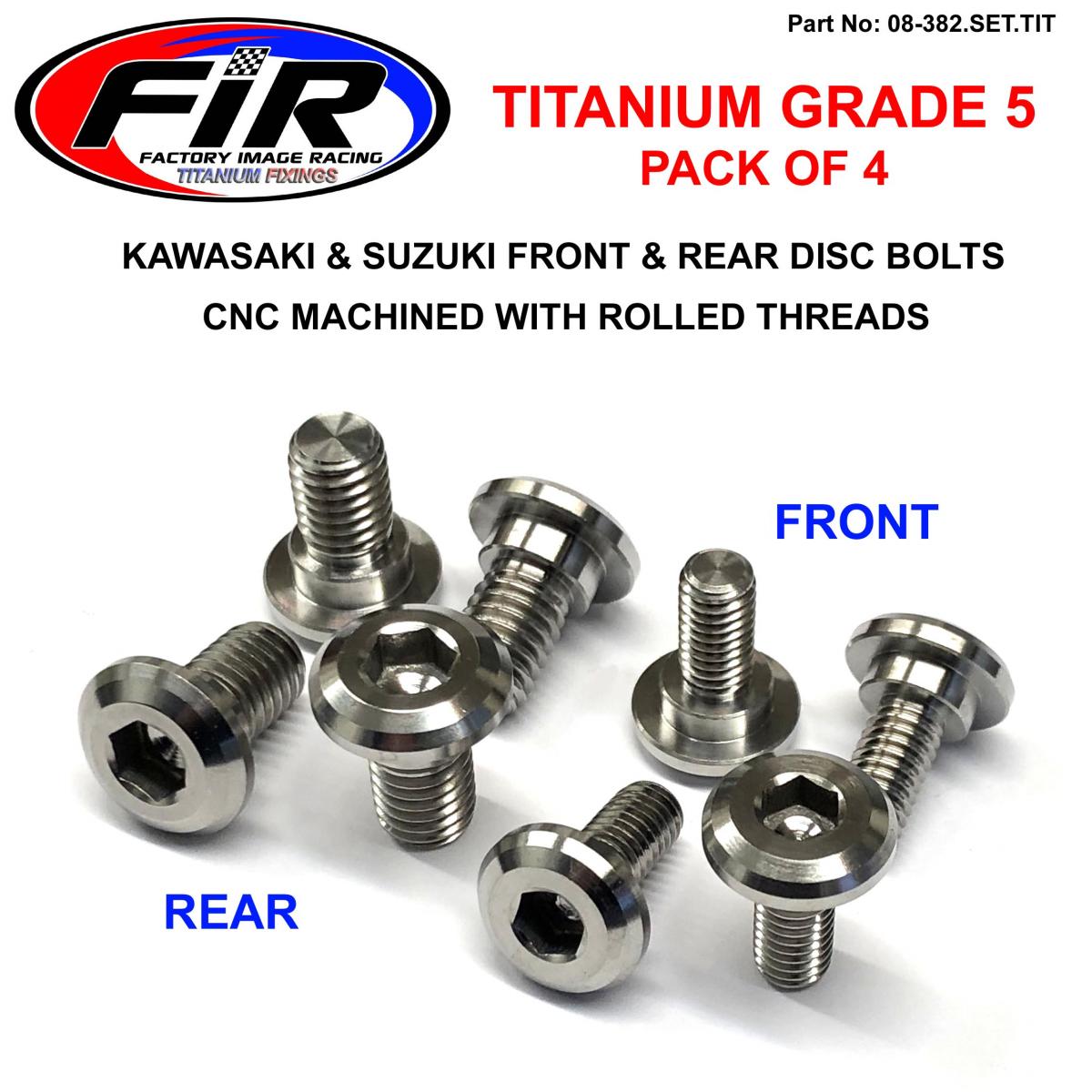

Factory Image Racing - Titanium Grade 5 Bolt Disc Set of 8 (Front & Rear) for Kawasaki & Suzuki

Compatibility:

• Kawasaki: KX/KXF 125-450: 2003-2021


• Suzuki: RMZ250/RMZ450/RMZ450: 2005-2021

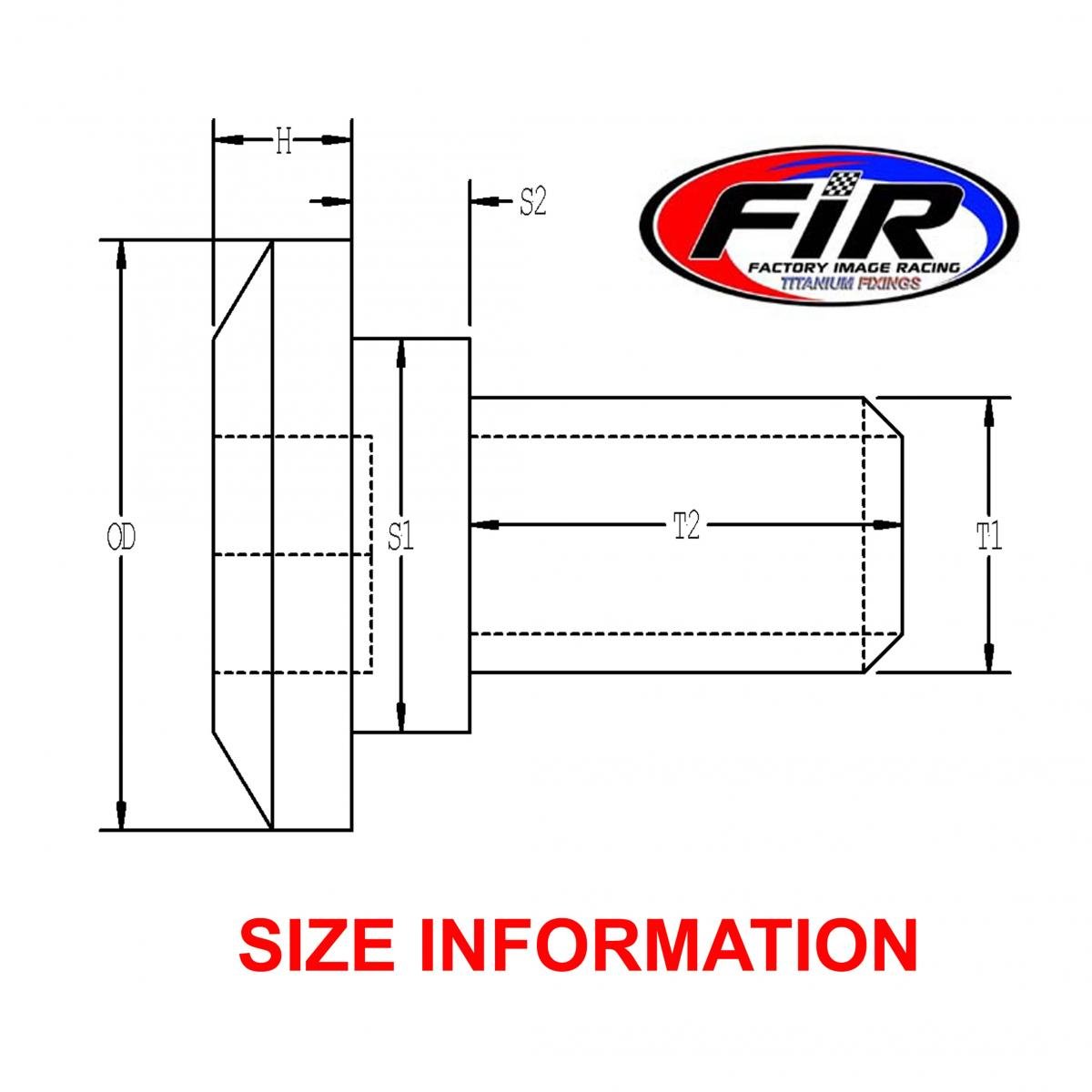

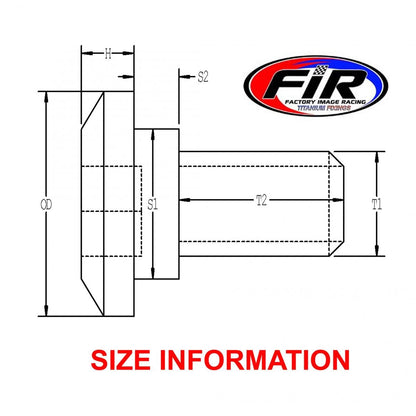

STEP BOLT INFO (Front):

• Material: Grade 5 (6Al/4V) Titanium


• Pitch (T1): M6x1.00mm


• Length (T2): 11.50mm


• OD Step (S1): 8.90mm


• H Step (S2): 2.70mm


• L Head (H): 3.20mm


• Head OD: 13.30mm


• Head Allen: #5


• Pack Quantity: 4


• OEM Reference: 09139-06142

STEP BOLT INFO (Rear):

• Material: Grade 5 (6Al/4V) Titanium


• Pitch (T1): M8x1.25mm


• Length (T2): 10.80mm


• OD Step (S1): 9.90mm


• H Step (S2): 3.30mm


• L Head (H): 3.30mm


• Head OD: 14.80mm


• Head Allen: #6


• Pack Quantity: 4


• OEM Reference: 09139-08022

These titanium bolts are Grade 5, the highest grade available and the alpha grade of titanium. All FIR fixings are made from Grade 5 titanium.

Cross Reference Numbers Only:

• 92151-1799


• 92150-1811


• 09139-06142
