TI GR5 BOLTS DISC KAW/SUZ KIT/4, TITANIUM REAR KIT RM KX KXF, / FIR BRAND

Factory Image Racing>  Giving your machine the Factory look!

TITANIUM GRADE 5

CLICK HERE to view the Factory Image Racing (FIR) Titanium Catalogue

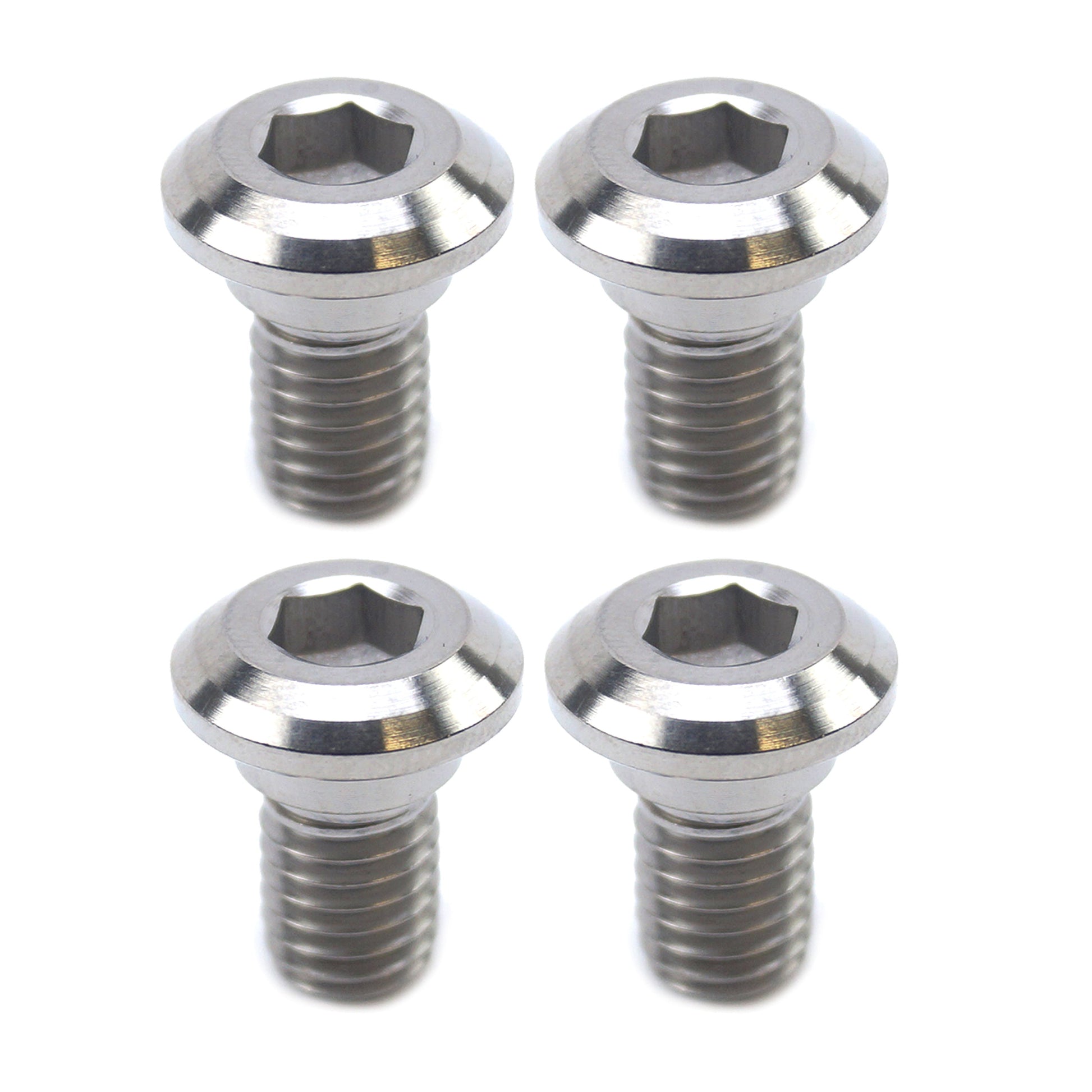

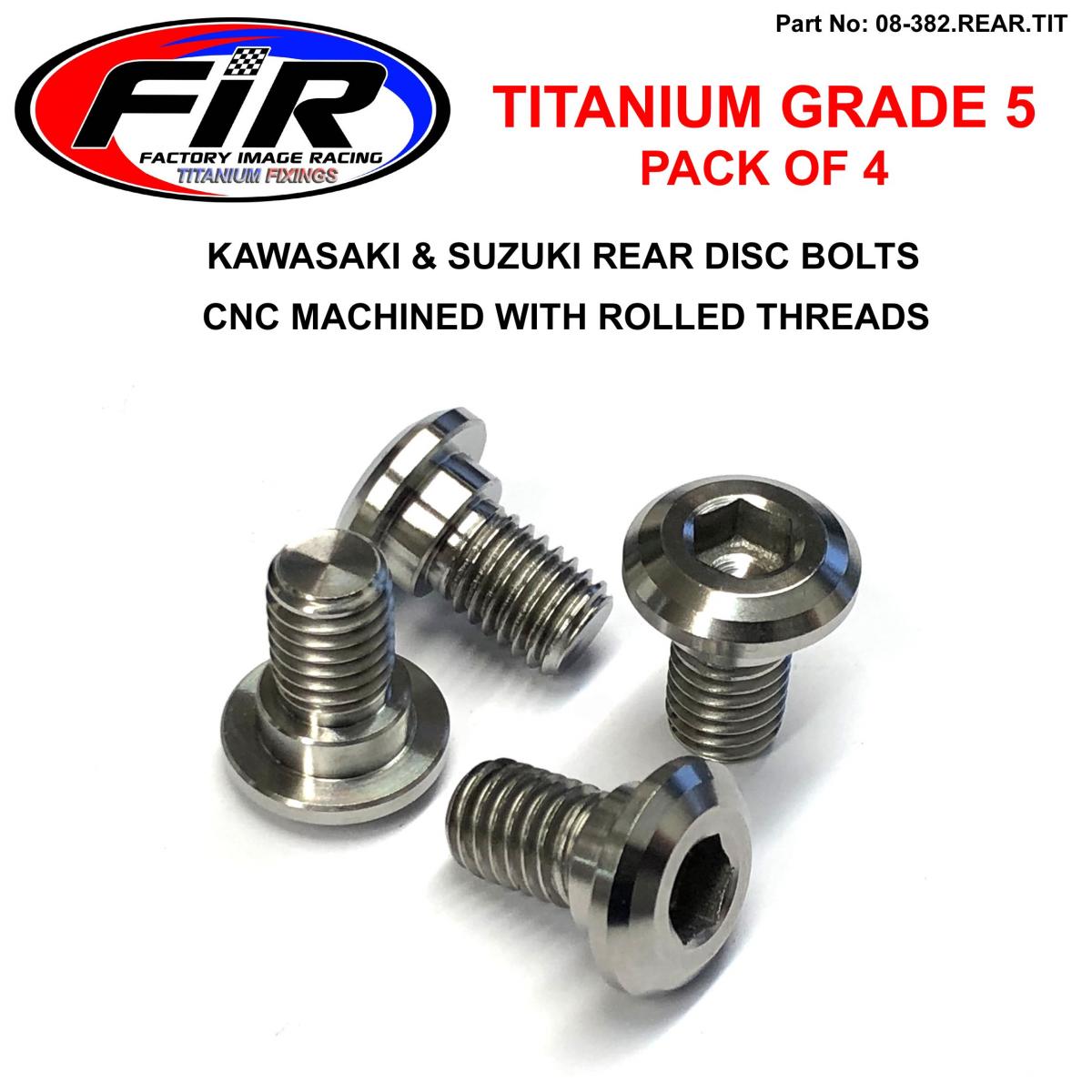

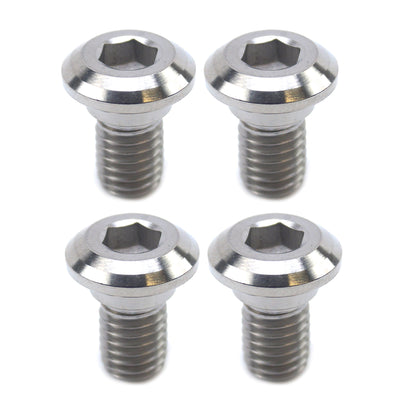

BOLT DISC SET OF 4.   REAR Kawasaki & Suzuki

Kawasaki

KX/KXF 125-450 03-21



Suzuki

RMZ250 / RMZ450 / RMZ450 05-21

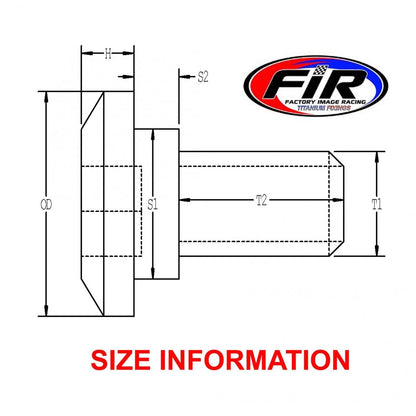

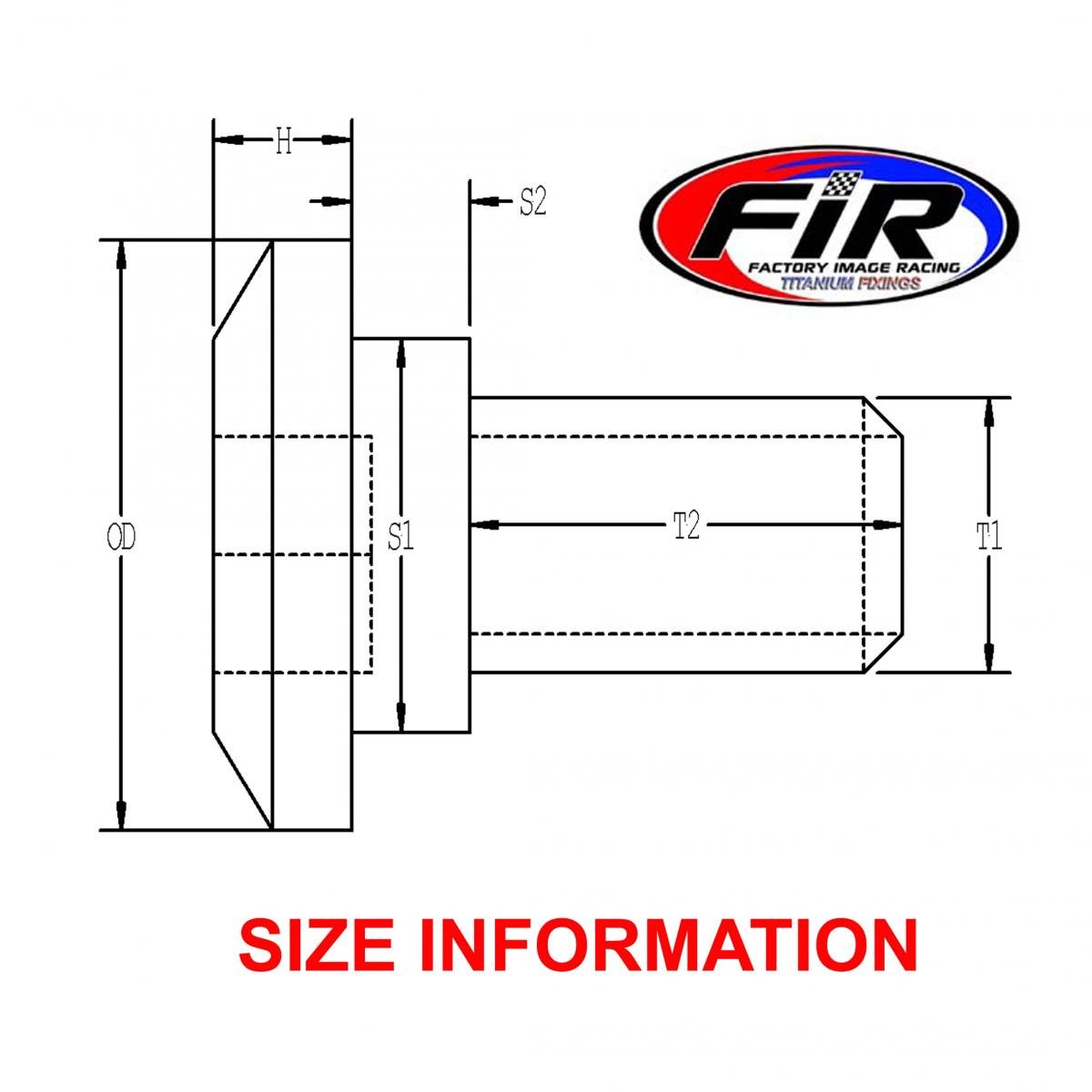

STEP BOLT INFO

• Material: Grade 5 (6Al/4V)


• Pitch T1 :   M8x1.25mm


• Length T2: 10.80mm


• OD step S1: 9.90mm


• H step S2: 3.30mm


• L Head H: 3.30mm


• Head OD:14.80mm


• Head Allen: #6


• Pack QTY :4


•  OEM Ref: SUZ 09139-08022

Part No. 08-382.REAR.TIT

THE TITANIUM BOLTS ARE GRADE 5 WHICH IS THE BEST GRADE TO USE, ITS THE ALPHA GRADE OF TITANIUM AND MORE EXPENSIVE THAN THE OTHER GRADES BEING USED IN THE MOTORCYCLE MARKET, AND JUST A HEADS UP ALL FIR FIXINGS ARE MADE FROM GRADE 5!

 [FACTORY IMAGE RACING] (Distributed oro2u.com)

Cross Reference Numbers Only:



09139-08022
