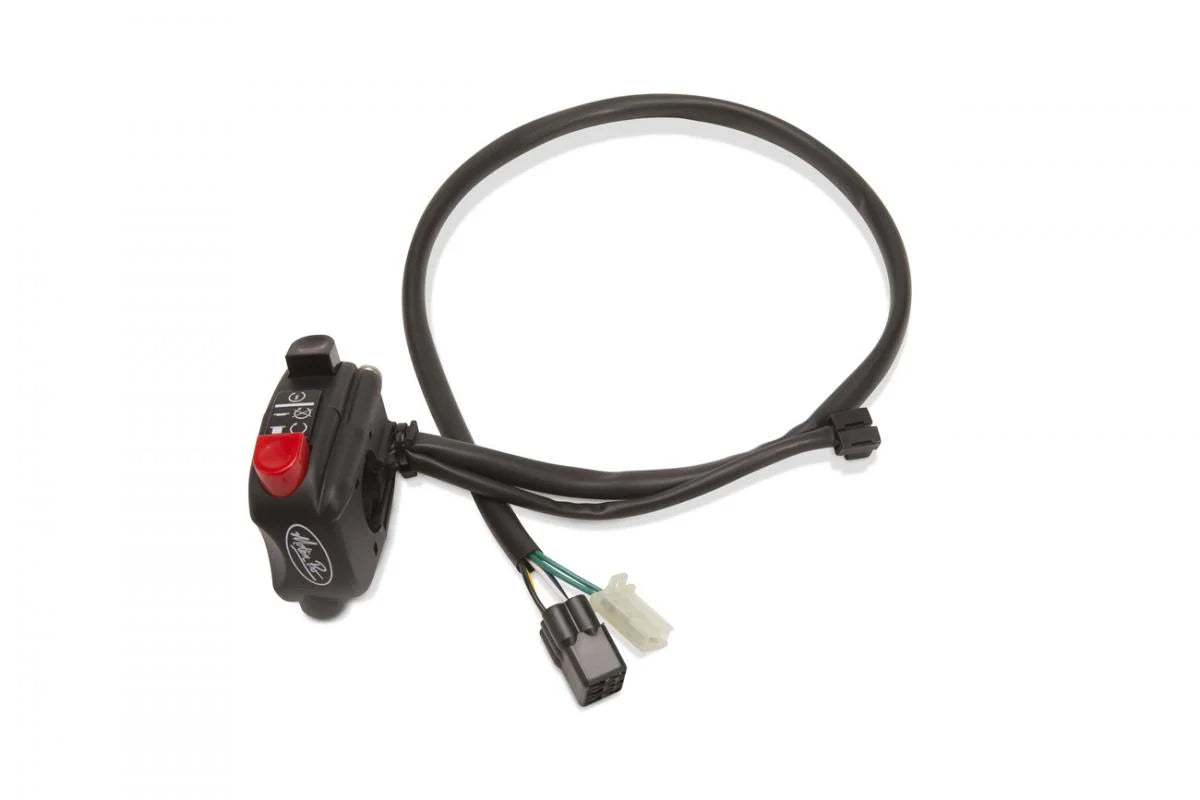

SWITCH START STOP TO GO WITH REVOLVER THROTTLE 11-0106

The KTM A right-hand handlebar start/stop switch is a model-specific control designed for use with the Rev2 throttle kit on motorcycles that integrate ignition and starter switches within the stock throttle assembly. It mounts to 7/8 in (22.2 mm) handlebars with an extra-narrow profile to conserve cockpit space and connects via a prewired connector to replicate the original functions without modification.

Features

• Model-specific design for use with Rev2 throttle kit on bikes with ignition and starter switches in the stock throttle assembly


• Push in/out engine (kill) switch


• Momentary 2-pole starter switch

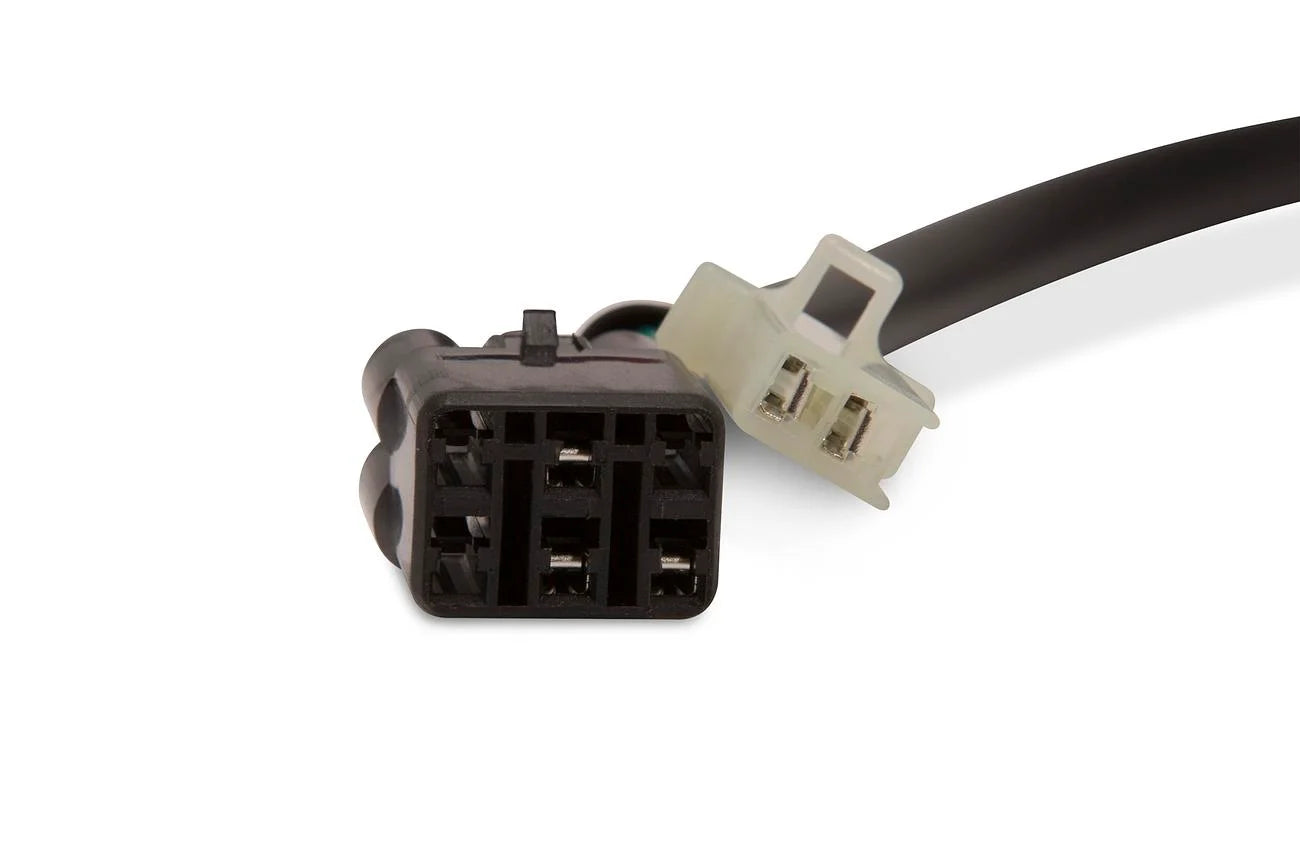

• Prewired connector plugs into the stock wiring harness to duplicate OEM function


• Stainless steel screws and internal rubber pad secure the switch without drilling holes


• Extra-narrow body to minimise handlebar space usage

Specifications

• Handlebar compatibility: 7/8 in (22.2 mm)


• Overall width: 26 mm


• Orientation: Right-hand


• Functions: Start and stop


• Fasteners: Stainless steel


• Installation: Clamp-on, no drilling required

Cross Reference Numbers

•


  11-0106
