SWITCH LH HANDLEBAR POLARIS

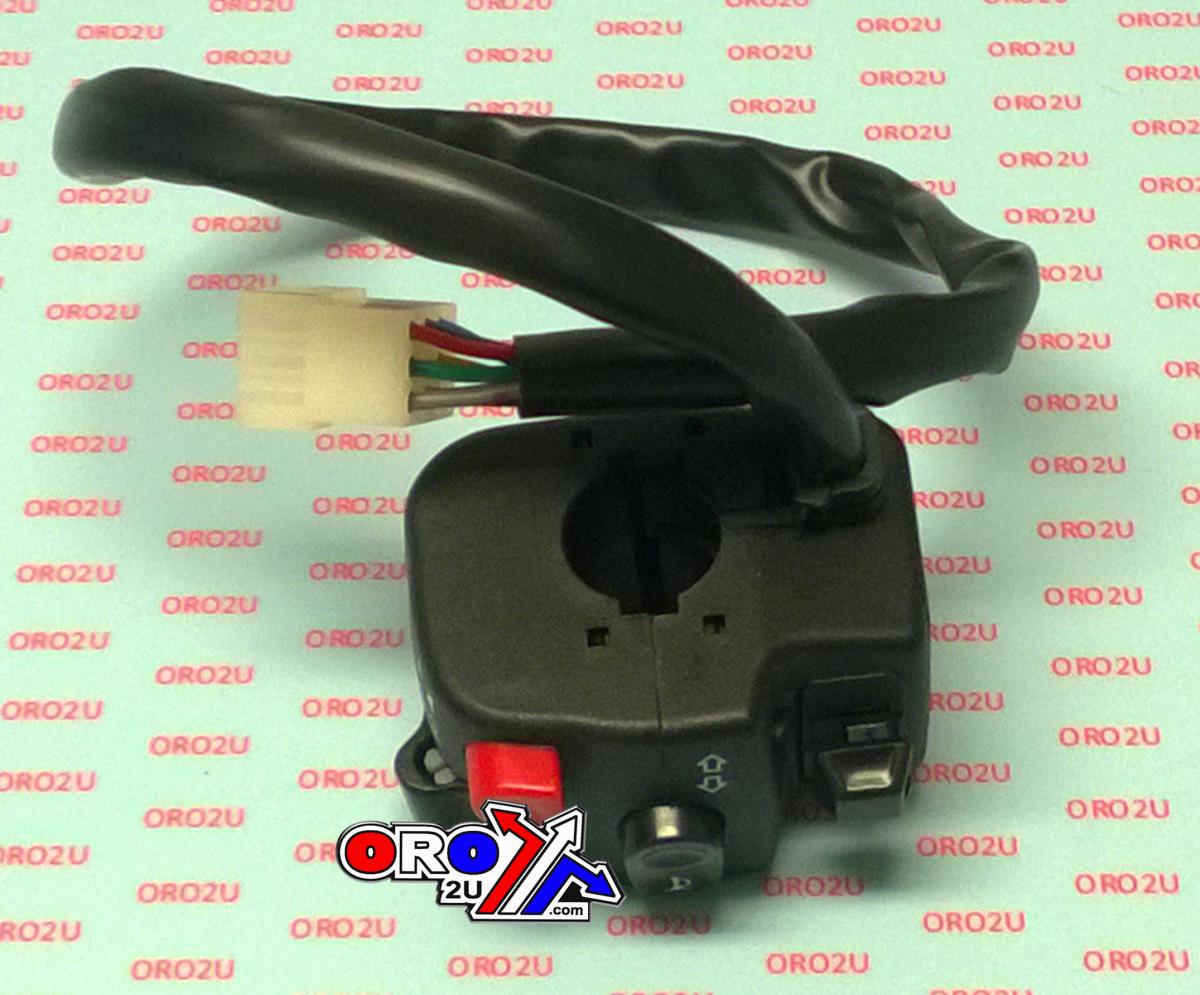

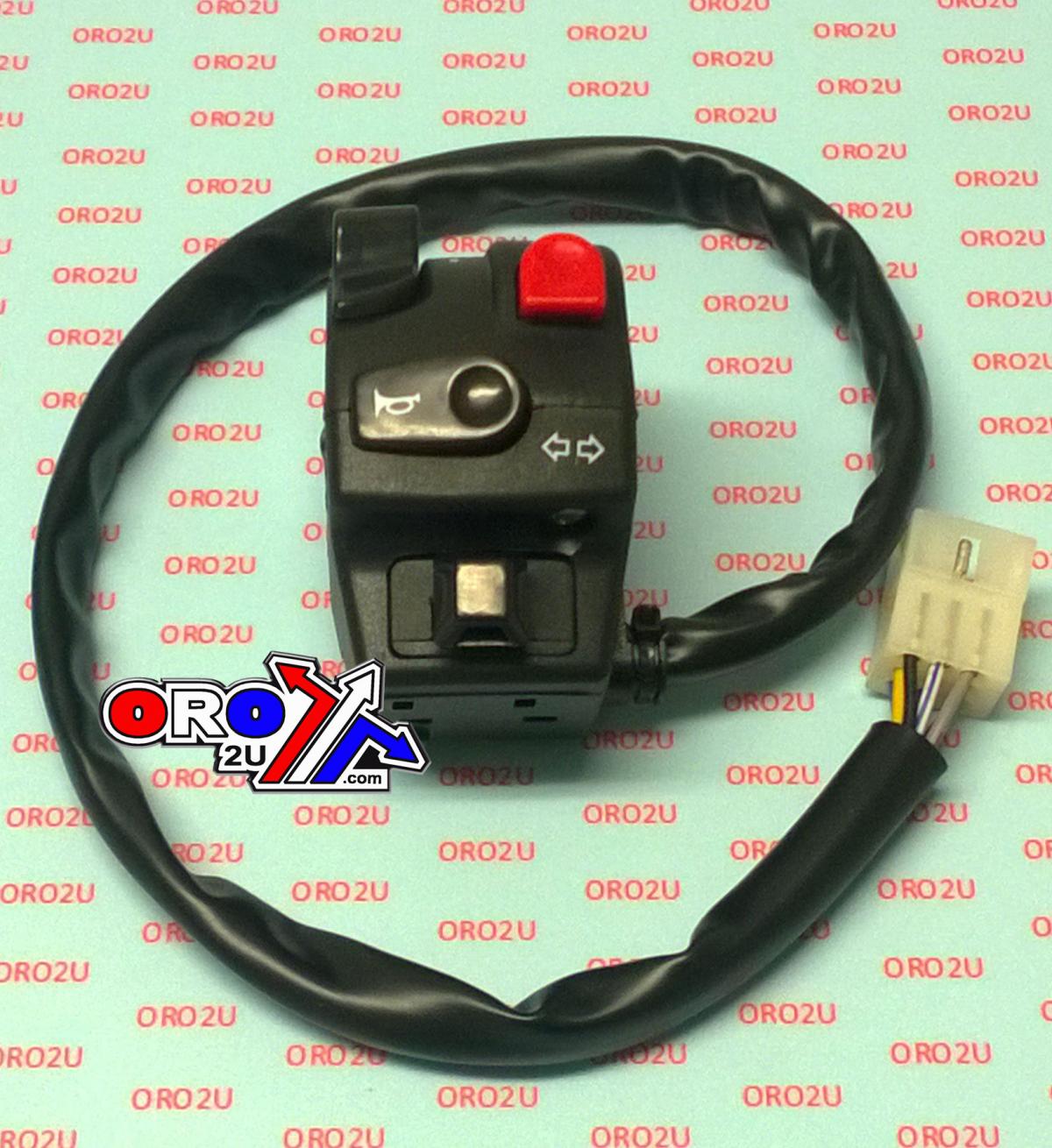

A left-hand handlebar multi-function switch assembly with a 500 mm wiring loom and a 9-pin block connector (8 pins used, centre pin unused), designed to fit 22.2 mm (7/8") handlebars and intended for use on Polaris ATVs, providing integrated lighting, dip beam, engine kill, horn, and indicator controls.

Features

• Left-hand handlebar multi-function switch assembly


• Multi-position lighting control (lights / main head / off)


• Dip headlight control via red button (high/low beam)


• Engine kill switch


• Horn switch


• Indicator/turn signal control via black button (left/right with centre push cancelling)


• Intended for use on Polaris ATVs


• 8-wire switch configuration

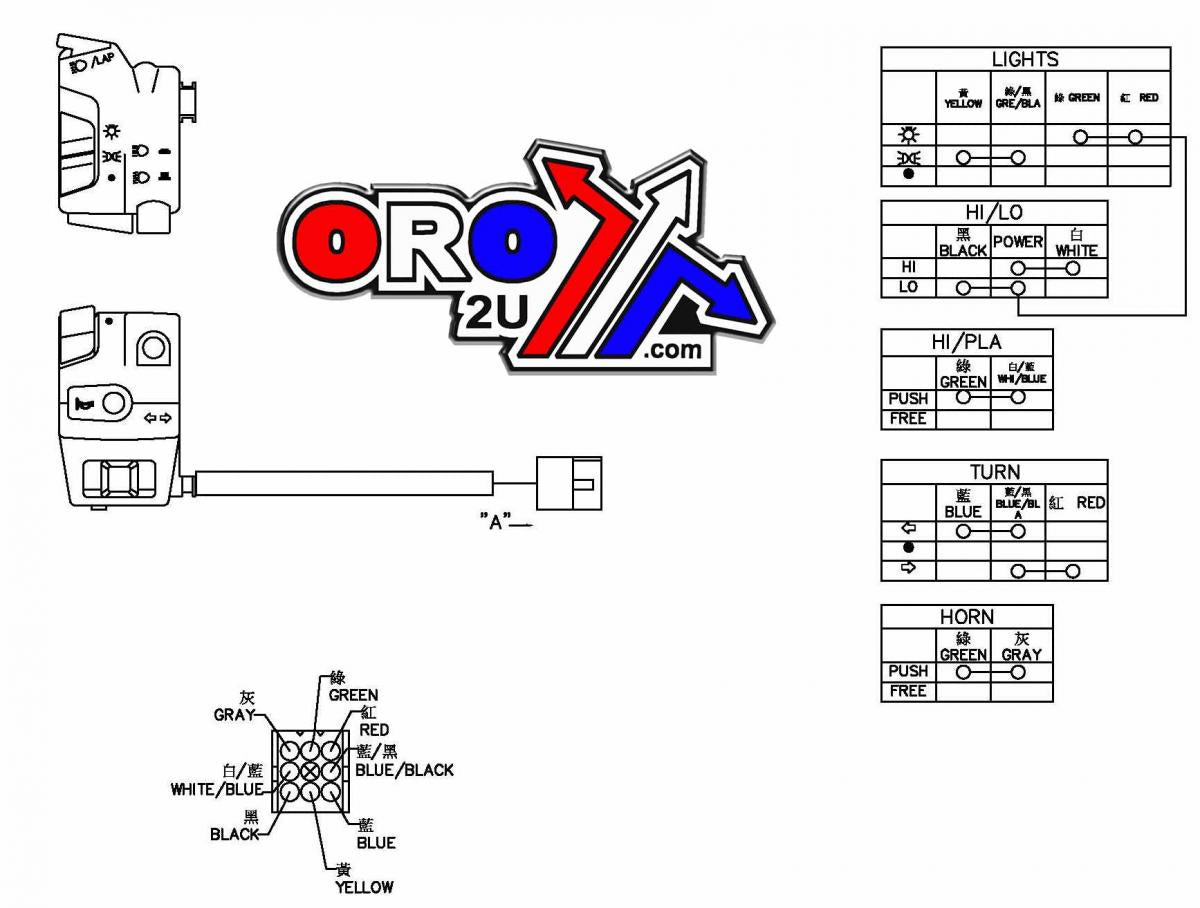

• 9-pin block connector with 8 pins used and centre pin unused

Specifications

• Wire length: 500 mm


• Handlebar fitment: 22.2 mm (7/8")


• Switch width: 45 mm


• Switch diameter: approximately 70 mm


• Connector type: 1 x OE 9-pin block connector

Cross-Reference OEM Part Numbers

•


  AT-01511
