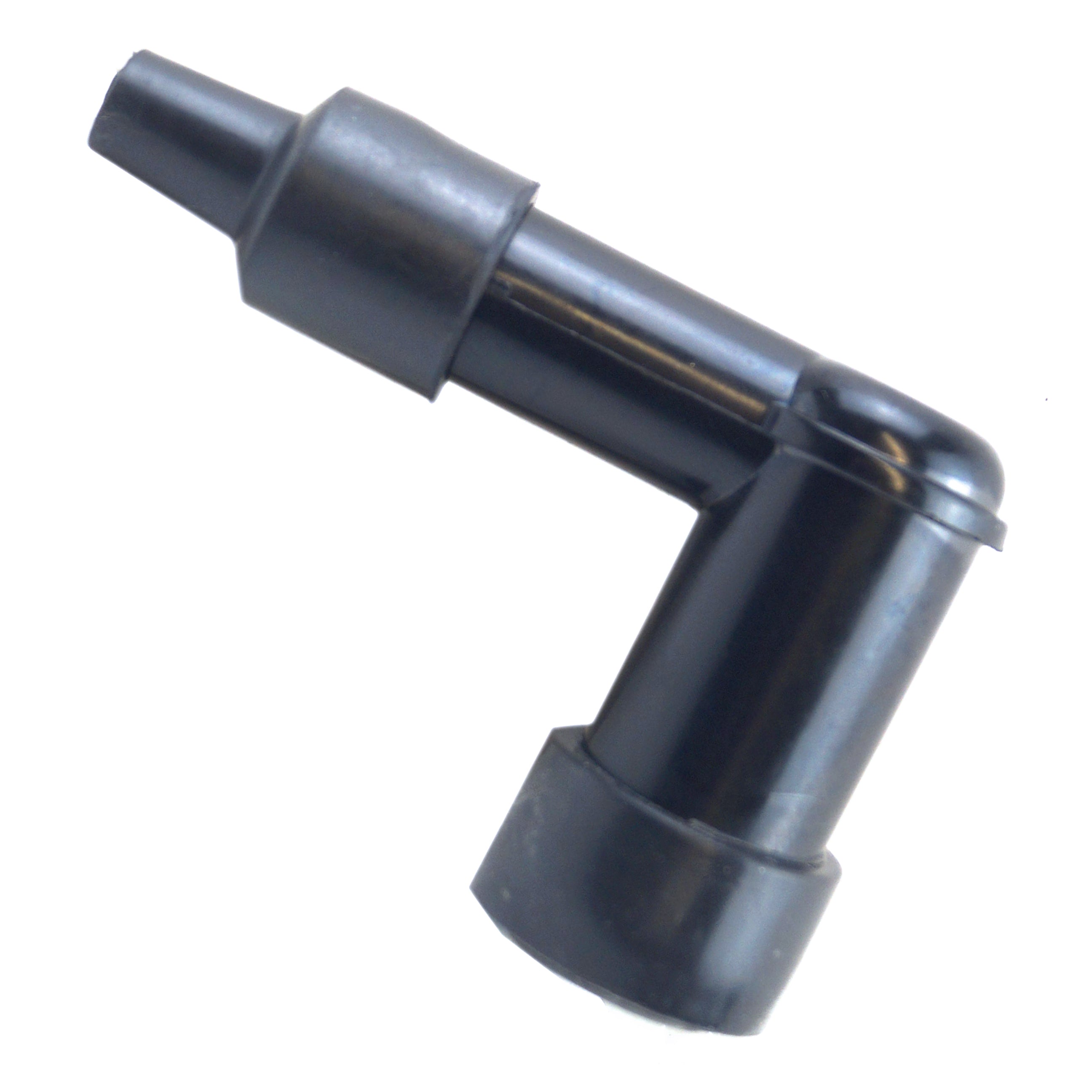

SPARK PLUG CAP LD05F NGK 8060

This 90° elbow spark plug cap connects the ignition lead to the spark plug where angled cable routing is required, with waterproof construction for exposed motorcycle applications.

Features

• 90° elbow configuration for angled ignition lead routing


• Waterproof cap design


• Suitable for use with 7 mm to 8 mm ignition wire

Specifications

• Adaptable thread size: 10 mm and 12 mm


• Resistance: 5 kΩ


• Terminal: stud


• Allowable wire diameter: 7 mm to 8 mm

Cross-Reference OEM Part Numbers

•


  NGK 8060
