SKF FORK GUIDE & SLIDE BUSHING SET 48mm - MARZOCCHI VKWA-MAR48-A

SKF fork bushing kit for 48 mm Marzocchi and ZF Sachs front forks, supplied as one inner and one outer bushing to service a single fork leg, intended to provide low-friction fork guidance with corrosion-resistant steel backing.

Features

• Suitable for Marzocchi and ZF Sachs 48 mm front forks


• Kit services one fork leg (two kits required to service both forks)


• Maintenance-free operation with a self-lubricating sliding layer


• Low-friction performance under side load


• High load-carrying capability


• Stable operation across a wide temperature range


• Small operating clearance for improved fork guidance


• Dimension marking for quick product identification

Specifications

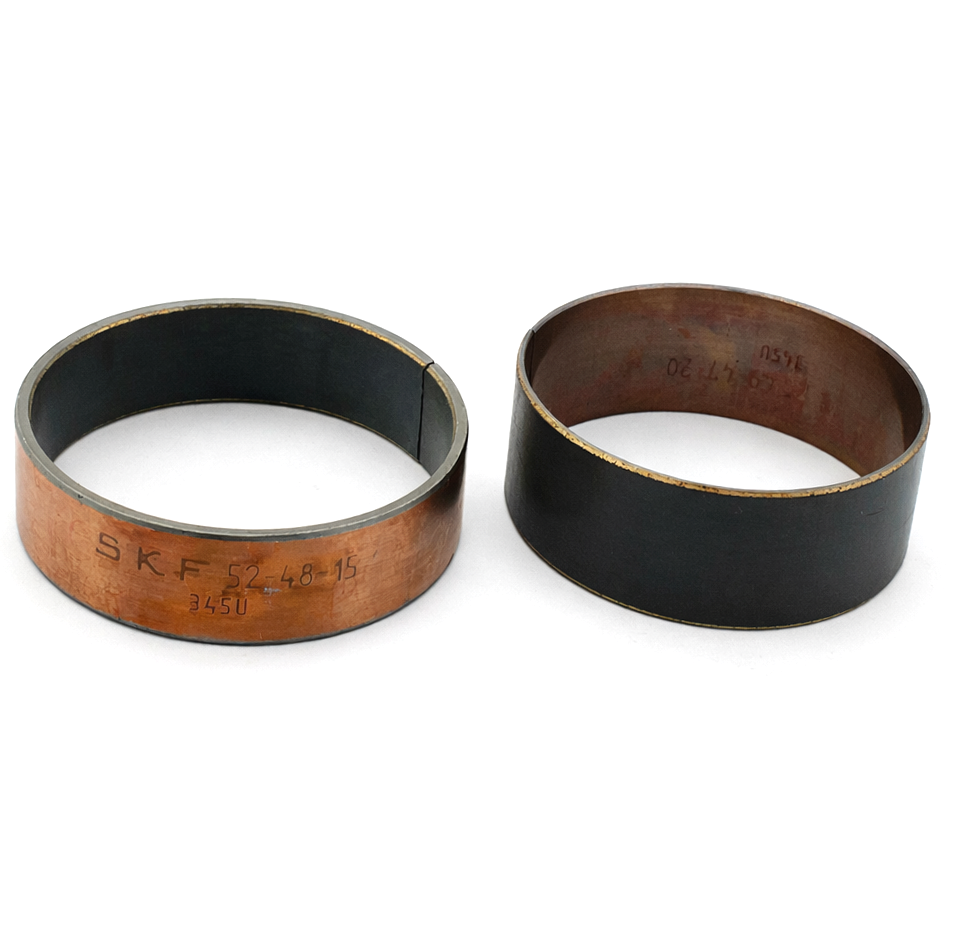

• Kit contents: 1 outer bushing (PTFE inside), 1 inner bushing (PTFE outside)


• Fork diameter: 48 mm


• Outer bushing dimensions: 48 × 52 × 15 mm


• Inner bushing dimensions: 49 × 47 × 20 mm


• Sliding layer: PTFE-based composite


• Intermediate layer: thin bronze layer


• Backing: steel with copper plating (corrosion protection)

Cross-Reference Numbers

•


  VKWA-MAR48-A




Vehicle Fitments

• Aprilia SXV 550 2008


• Beta RR 300 2T 2011-2012


• Beta RR 400 2011-2012


• Beta RR 498 2012


• Gas Gas EC 200 2013-2015


• Gas Gas EC 250 2011-2025


• Gas Gas EC 250F 2013-2025


• Gas Gas EC 300 2011-2026


• Gas Gas EC 300F 2013-2015


• Gas Gas EC 450F 2013-2015
