REGULATOR LT230E, SUZUKI LT250E QUADRUNNER 87-93 32800-35B00 GSX450 GSX500 GSX550 GSX1100

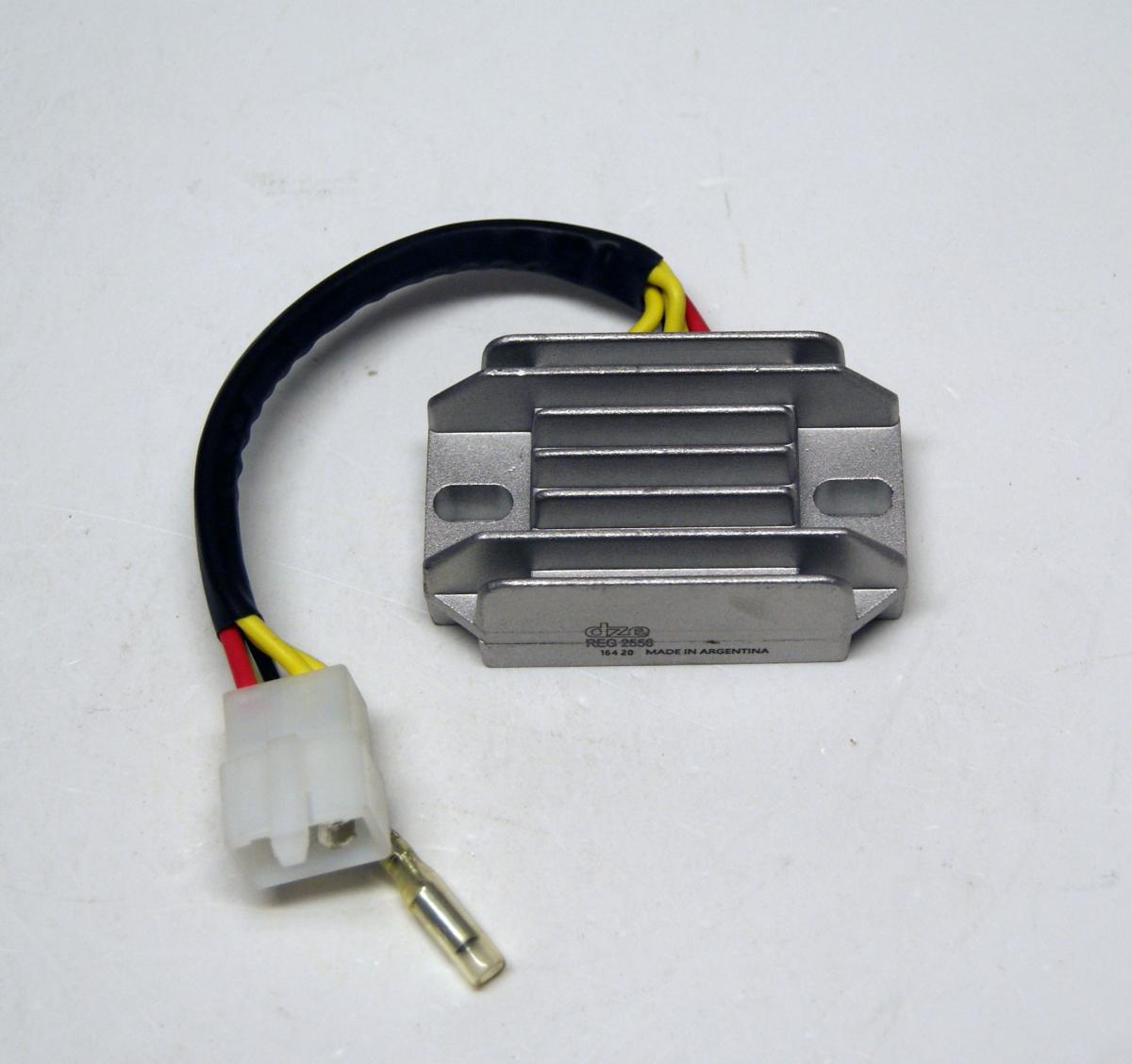

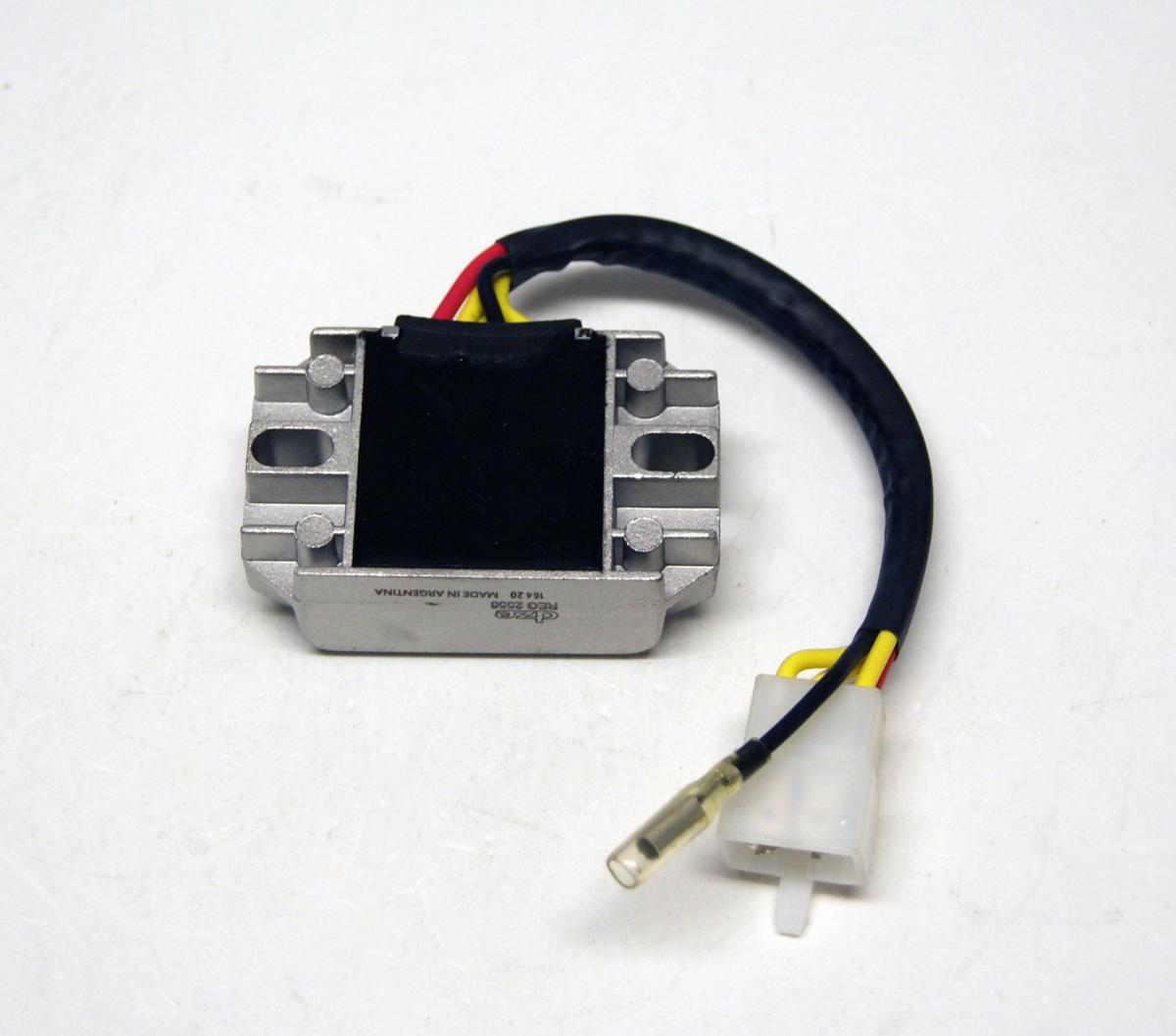

This SCR voltage regulator/rectifier is a replacement charging-system component for the listed Suzuki motorcycles and QuadRunner models. It converts three-phase alternator output to DC power and regulates voltage for the battery and vehicle electrical system.

Features

• Direct replacement for compatible original units.


• SCR-based voltage regulation.

Specifications

• Rated voltage: 12 V


• Rated current: 20 A


• Input: Three-phase


• Output: DC


• Dimensions: 76 × 47 × 28 mm


• Mounting pitch: 60 mm


• Sensor: None

Cross-Reference OEM Part Numbers

• 32800-35B00


• 32800-43400


• 32800-49430


• 32800-43X51

Vehicle Fitments

• Suzuki LT230E / LT230 QuadRunner 230: 1987–1993


• Suzuki LT250E QuadRunner: 1987–1993


• Suzuki LTF230 / LTF230G: 1986


• Suzuki LTF230 / LTF230H: 1987


• Suzuki GS1100: 1982–1983; 2002


• Suzuki GS450S / GS450: 1984–1988


• Suzuki GS450E / GS450: 1984, 1986–1988


• Suzuki GSX450


• Suzuki GSX500: 1984–1985


• Suzuki GSX550: 1983–1987


• Suzuki GSX1100: 1982–1983
