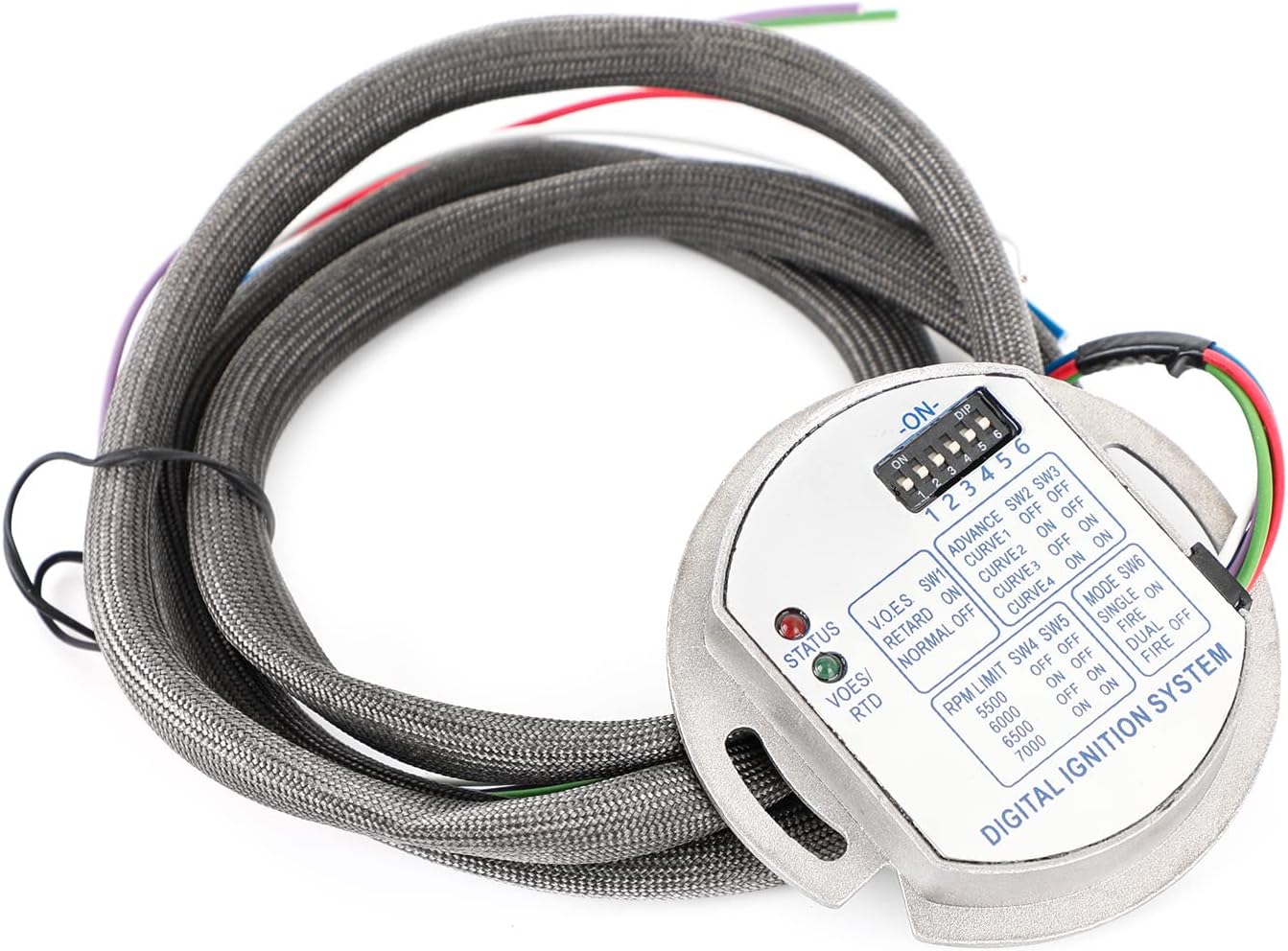

PROGRAMMABLE IGNITION MODULE 70-99 HARLEY-DAVIDSON CARBURETTED DYNATEK D2KI-1P D2KI-5P

This programmable single-fire electronic ignition module is designed for carburetted Harley-Davidson motorcycles and replaces the factory ignition module and sensor or earlier points-style ignition systems. The self-contained unit fits inside the engine cam cover area and controls ignition timing, advance curves, rev limiting and coil operation for single-fire or dual-fire ignition configurations.

Features

• Replaces factory electronic ignition modules and sensor assemblies


• Suitable for earlier electronic and breaker-point ignition systems using a mechanical advancer


• Self-contained design fits inside the engine in place of the cam sensor or points plate


• Supports single-fire or dual-fire operation with compatible coil arrangements


• Selectable ignition advance curves for different engine builds and riding requirements


• Built-in tachometer driver for use with shift lights, auto-shifters and related accessories


• PC programmable when used with the correct programming lead and software

Specifications

• Ignition type: programmable digital electronic ignition


• Fire mode: single-fire or dual-fire capable


• Rev limiter adjustment range: 6,000 to 7,500 rpm


• Programmable rev-limit increments: 50 rpm


• Programmable dead-cranking revs: 0 to 5


• Rear cylinder timing offset adjustment: +/- 10°


• Programmable wide-open-throttle curve: 8-point fully definable


• Programmable part-throttle curve: fully definable


• Over-current and short-circuit protection: built in


• Dwell control: active dwell control


• Over-voltage protection: protected against momentary voltage spikes

Cross-Reference OEM Part Numbers

• Dynatek D2KI-1P


• Dynatek D2KI-5P

Vehicle Fitments

• Harley-Davidson carburetted models, 1970-1999


• Not suitable for fuel-injected models
