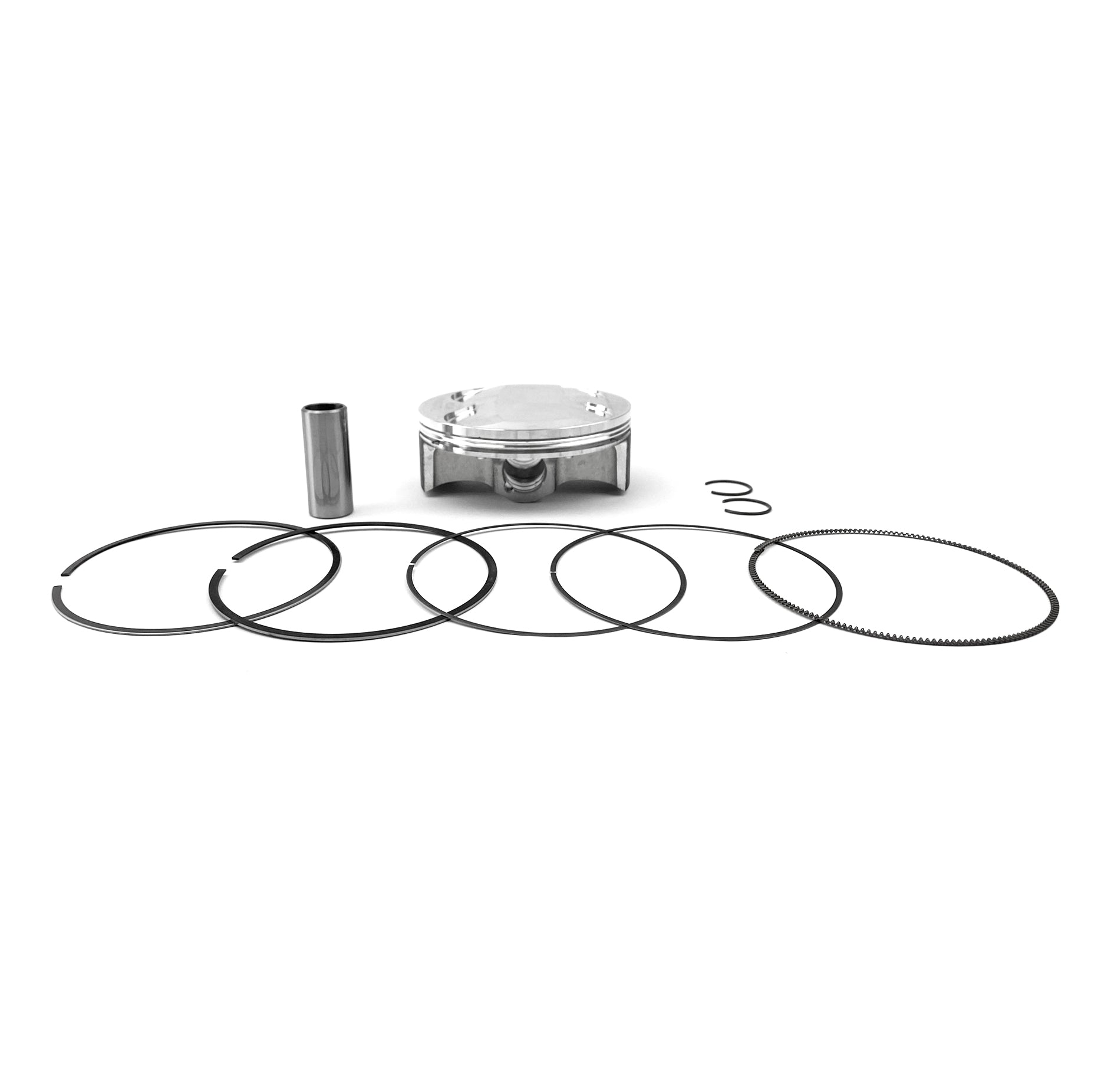

PISTON KIT KXF450 16-18 HIGH COMPRESSION WOSSNER KIT 4087DC

High Compression Piston kit 96mm Bore 95.97 Wossner 4087DC (STD)

KAWASAKI

KX450F 2016 - 2018,

• Wossner forged pistons are superior in strength and design.


• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.


• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.


• Made in Germany.

Part No. 56-W9916.C.WO.HC  (oro2u.com)



WOSSNER 4087DC PISTON KIT 96.00mm

C GRADE PISTON KIT 95.97mm

COMPRESSION RATIO 13.60:1

COMPRESSION HEIGHT 23,70mm

STROKE 62,1

CLEARANCE 0.05mm

THEORETICAL WEIGHT 256.50g



Cross reference numbers

RING SET. TPR96.00

CLIPS. CW19

PIN. WP028-SP
