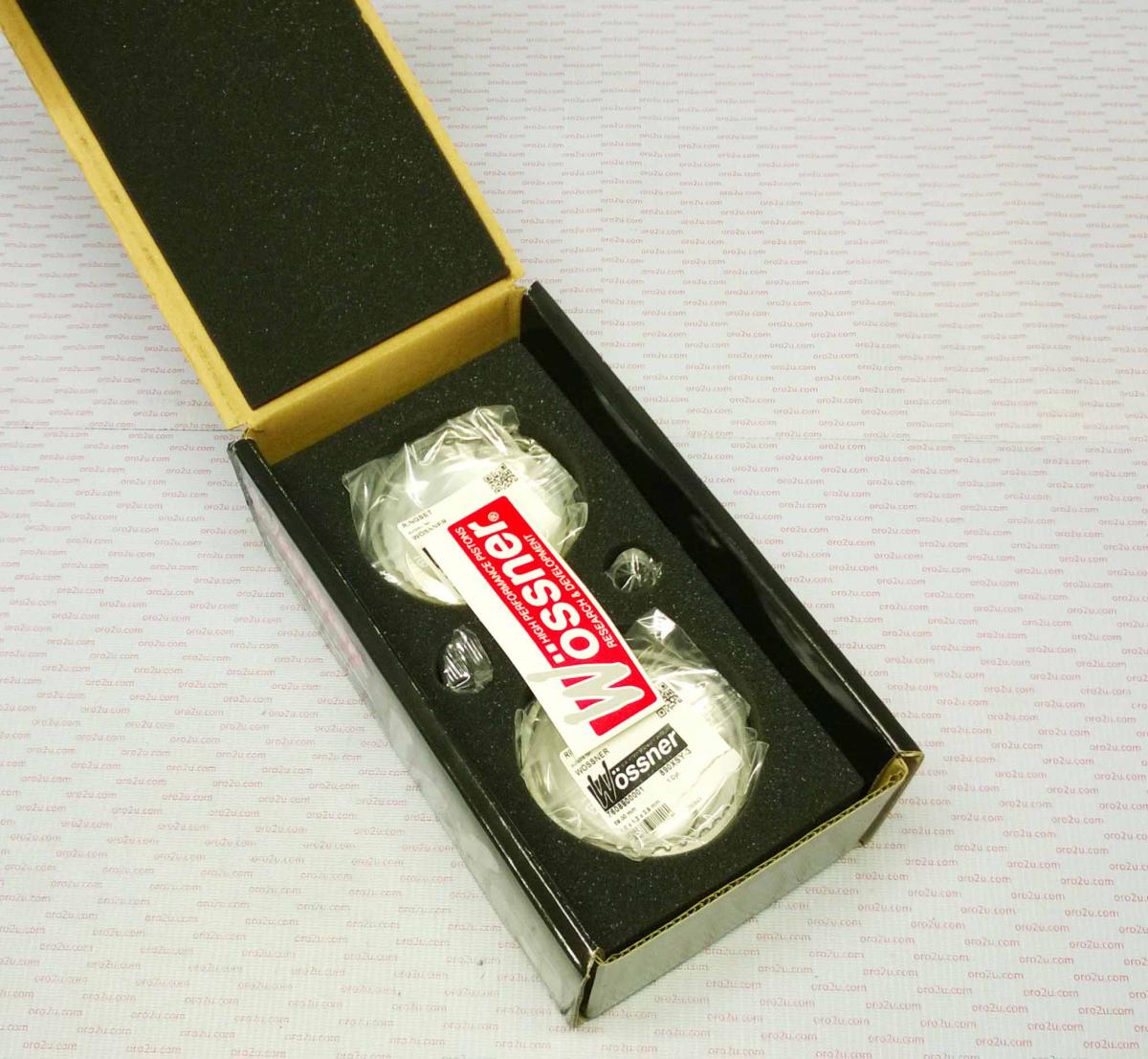

PISTON KIT HARLEY 3.816 SET/2, WOSSNER K8620DA-2 DAVIDSON, ROAD

This Wossner piston kit is specifically engineered for Harley Davidson 1200 Big Bore engines with a 3.812" stroke, produced from 2004 to 2007. Featuring a standard 3.816" bore and reverse dome design with a 10.5:1 compression ratio, this kit is intended for use with aftermarket Big Bore cylinders and requires case boring for installation.

Features

•


  Forged high-performance pistons (2 pcs), skirt-coated for friction reduction and durability





•


  Precision-engineered for effective heat transfer from combustion chamber to cylinder walls





•


  Elliptical design ensures uniform load distribution under thermal expansion





•


  Reverse dome pistons deliver a 10.5:1 compression ratio





•


  Manufactured in Germany





•

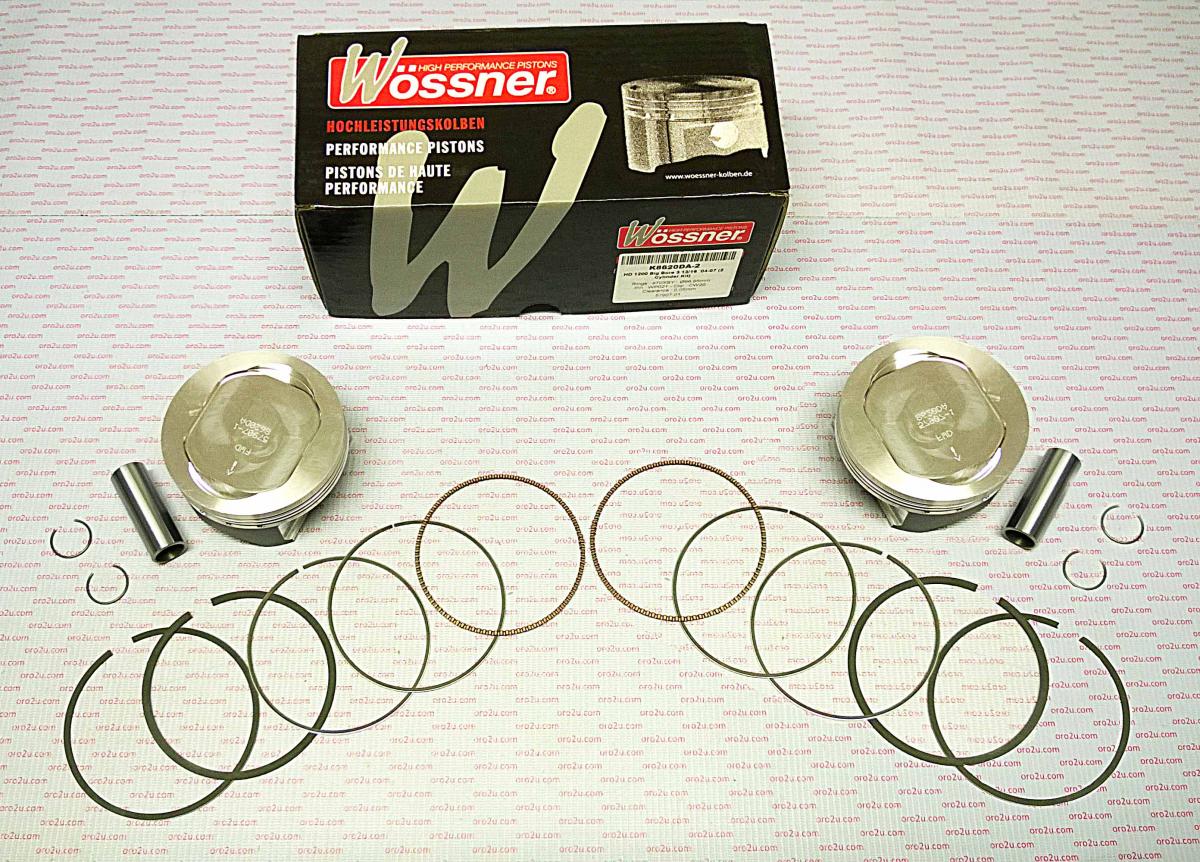

  Includes rings, clips, and pins





•


  Requires boring of engine cases and use of aftermarket Big Bore cylinders




Specifications

•


  Bore size: 3.816" (standard size for Big Bore application)





•


  Compression ratio: 10.5:1





•


  Stroke: 3.812"





•


  Piston type: Forged, skirt-coated, reverse dome





•


  Quantity: 2 pistons per kit





•


  Wossner Part Number: K8620DA-2





•


  Alternate Part No: 56-W9956.000.WO




Vehicle Fitments

•


  Harley Davidson 1200 Big Bore (3 13/16", 88 cu. in.), stroke 3.812, years 2004–2007
