PISTON KIT 92-98 HSV 250 67.00, HUSQVARNA WOSSNER 8015DA
PISTON KIT 92-98 HSV 250 67.00, HUSQVARNA WOSSNER 8015DA

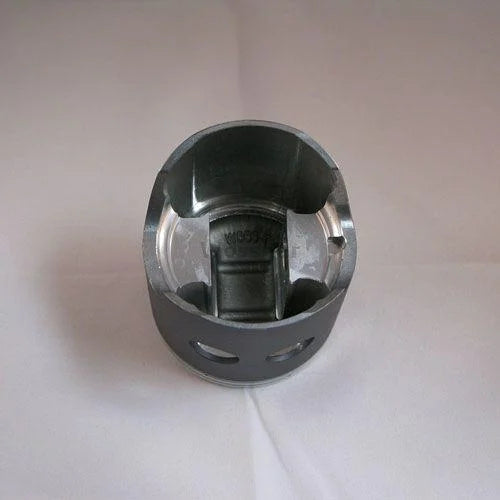

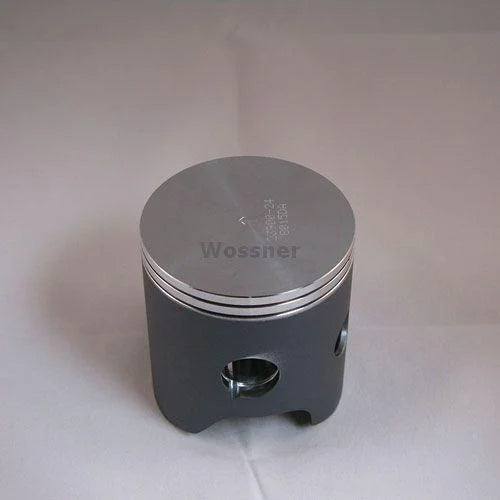

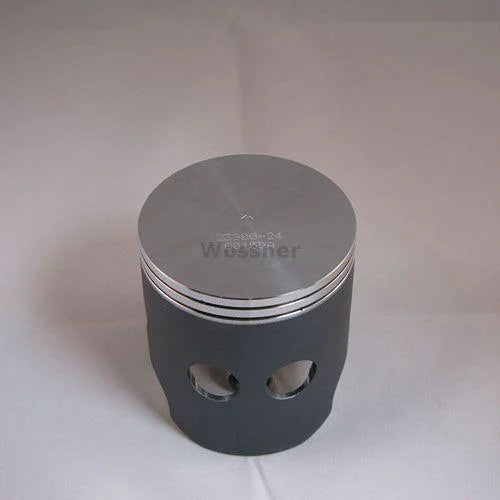

This Wossner forged piston kit is engineered for Husqvarna CR250 and WR250 models from 1992 to 1998, featuring a 67.00mm standard bore. Manufactured in Germany, it combines high-strength forging with an elliptical profile that allows uniform expansion under thermal stress. This helps prevent localised pressure build-up and piston collapse. Designed for efficient heat dissipation from the combustion chamber to the cylinder wall, it supports consistent performance in two-stroke engines.
Features
-
Forged piston ensures high durability and mechanical reliability
-
Elliptical shape distributes thermal load evenly
-
Minimises localised stress to reduce risk of piston failure
-
Enhances heat transfer from combustion chamber to cylinder wall
-
German precision manufacturing
Specifications
-
Bore Size: 67.00mm (Standard)
-
Actual Diameter: 66.94mm
-
Compression Height: 35.00mm
-
Stroke: 70.80mm
-
Displacement: 249 cm³
-
Piston Clearance: 0.06mm
-
Compression Ratio: 2-stroke (Wossner and OEM)
Cross-Reference OEM Part Numbers
-
Wossner Piston Kit Part No: 8015DA
-
Lock: CW18
-
Pin: WP033
-
Ring Set: RSB6700 x2
-
Cross Reference: 699M06700
Vehicle Fitments
-
1992–1998 Husqvarna CR250
-
1992–1998 Husqvarna WR250
