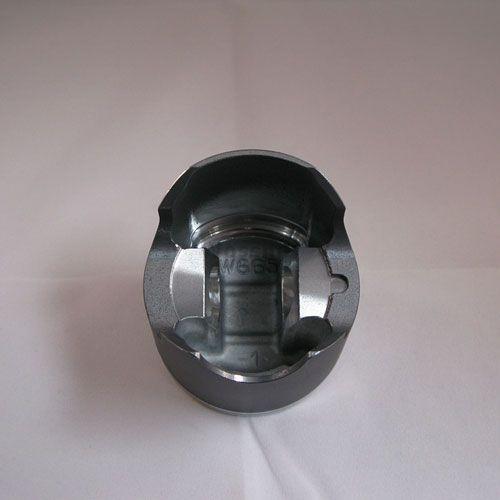

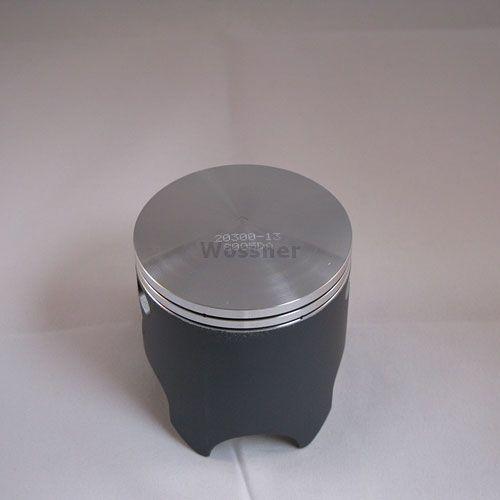

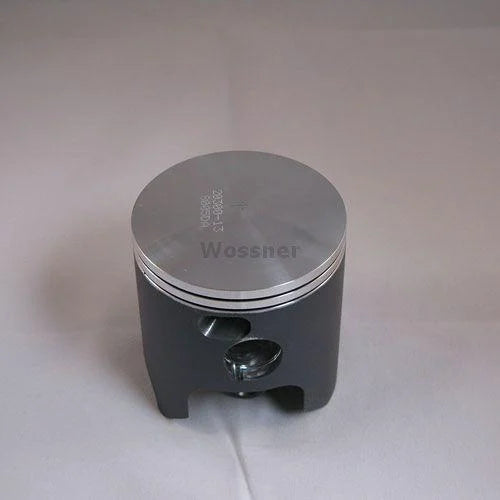

Wossner Forged Piston Kit 68.00mm Bore – KTM GS250 / SX250 (1990–1994)
This Wossner forged piston kit is designed for KTM GS250 and SX250 models from 1990 to 1994. It features a 68.00 mm bore and a piston diameter of 67.94 mm (+0.50 mm oversize), suitable for high-performance 2-stroke applications. The piston’s forged construction and elliptical design ensure optimal heat transfer, even thrust distribution, and high durability under thermal expansion. Made in Germany with precision engineering.
Features
-
Forged piston for enhanced strength and longevity
-
Superior heat dissipation from the combustion chamber
-
Elliptical design promotes balanced thrust load and prevents piston collapse
-
Precision manufactured in Germany
Specifications
-
Bore Size: 68.00 mm
-
Piston Diameter: 67.94 mm
-
Engine Displacement: 249 cm³
-
Stroke: 69.50 mm
-
Clearance: 0.06 mm
-
Compression Height: 29.70 mm
-
Compression Ratio: 2-stroke (Wossner and OEM)

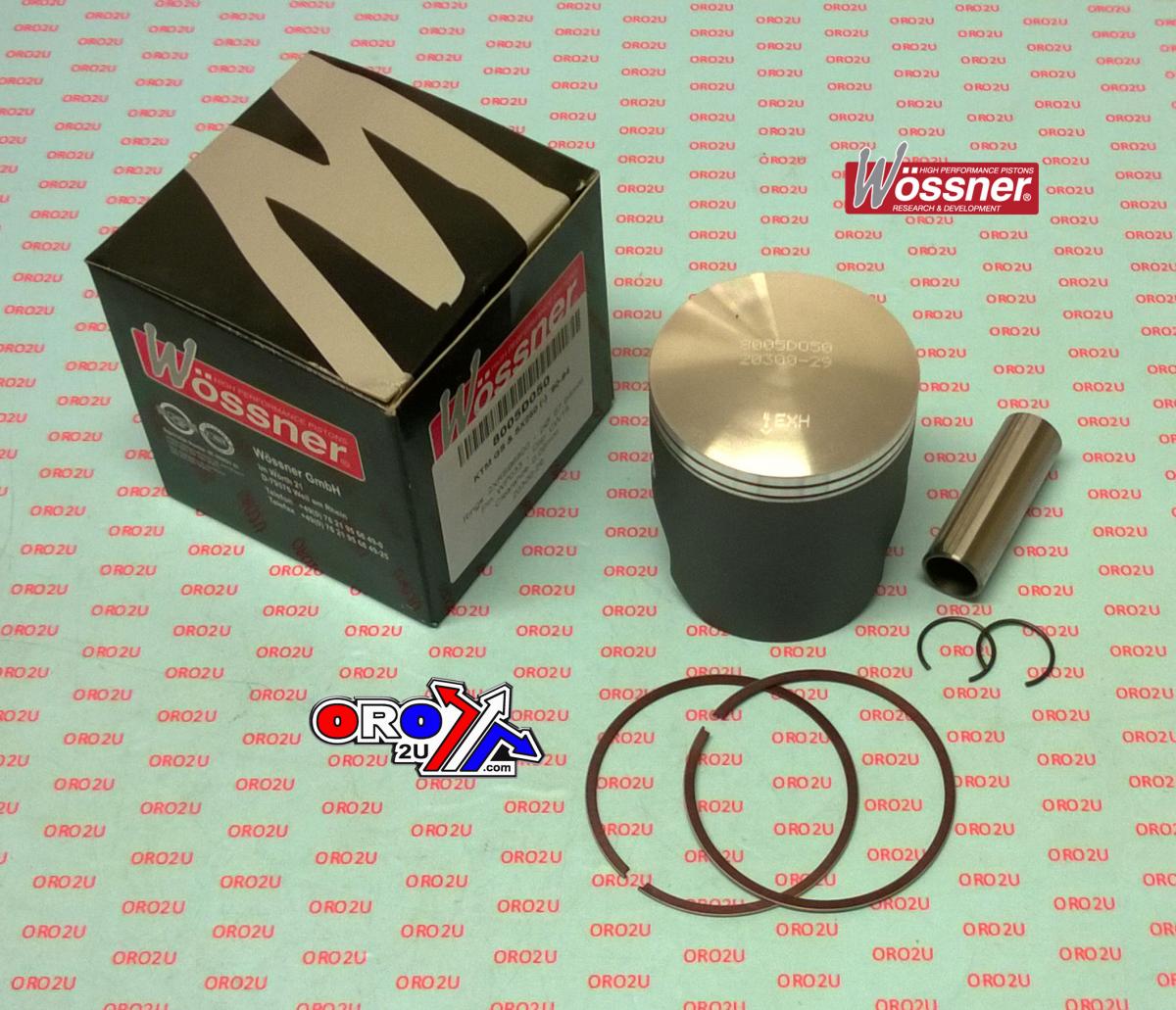

Cross-Reference Wossner Part Numbers
-
Piston Kit: 8005D050
-
Lock: CW18
-
Pin: WP033
-
Ring Set: RSB6800 x 2
Vehicle Fitments
-
KTM GS250 (1990–1994)
-
KTM SX250 (1990–1994)
