PISTON KIT 88-00 KX80 53.00, WOSSNER 8197D500 KAWASAKI MX
PISTON KIT 88-00 KX80 53.00, WOSSNER 8197D500 KAWASAKI MX

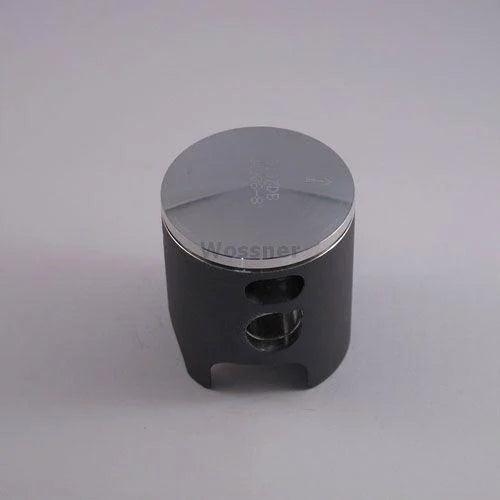

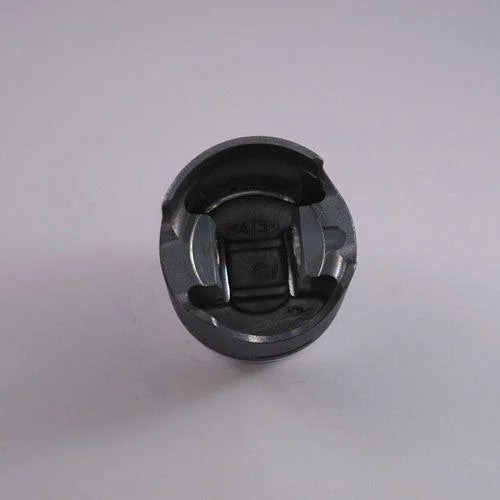

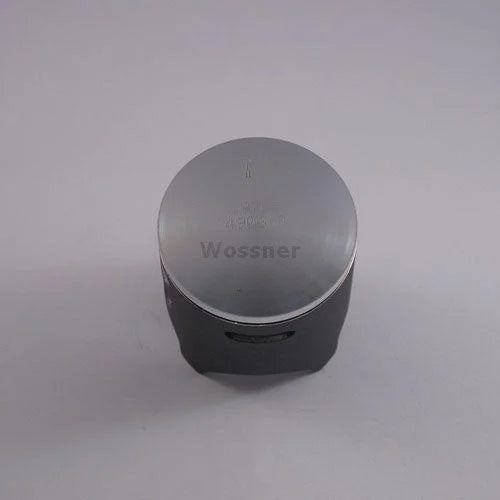

Wossner forged piston kit with a 53mm bore size (52.95mm actual), specifically designed for Kawasaki KX80 models from 1988 to 2000 with a US bore. Manufactured in Germany, this piston kit incorporates an elliptical design to ensure uniform bearing surfaces during heat expansion, promote efficient heat transfer, and evenly distribute thrust loads to prevent piston collapse.
Features
-
Forged piston construction for superior strength and durability
-
Designed for optimised heat transfer from combustion chamber to cylinder walls
-
Elliptical design ensures uniform bearing surface during thermal expansion
-
Reduces localised pressure and prevents piston collapse
-
Manufactured in Germany
Specifications
-
Bore Size: 53mm (actual 52.95mm)
-
Display Displacement: 80 cm³
-
Stroke: 45.80mm
-
Clearance: 0.05mm
-
Wossner Compression Ratio: 2-stroke
-
OEM Compression Ratio: 2-stroke
-
Compression Height: 26.00mm
Cross-Reference OEM Part Numbers
-

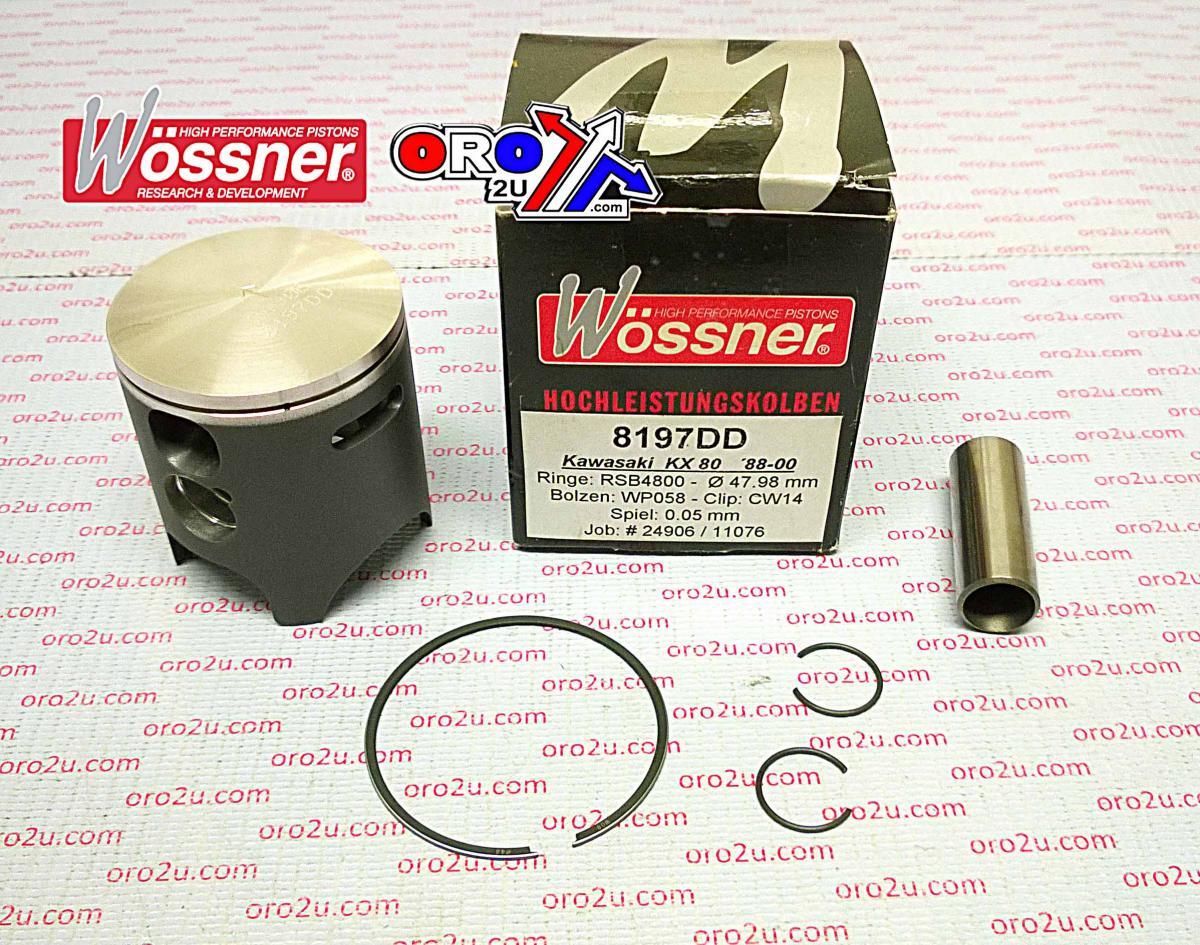

Piston Kit: 8197D500
-
Lock: CW14
-
Pin: WP058
-
Ring Set: RSB5300
Vehicle Fitments
-
1988–2000 Kawasaki KX80 (US Bore)
