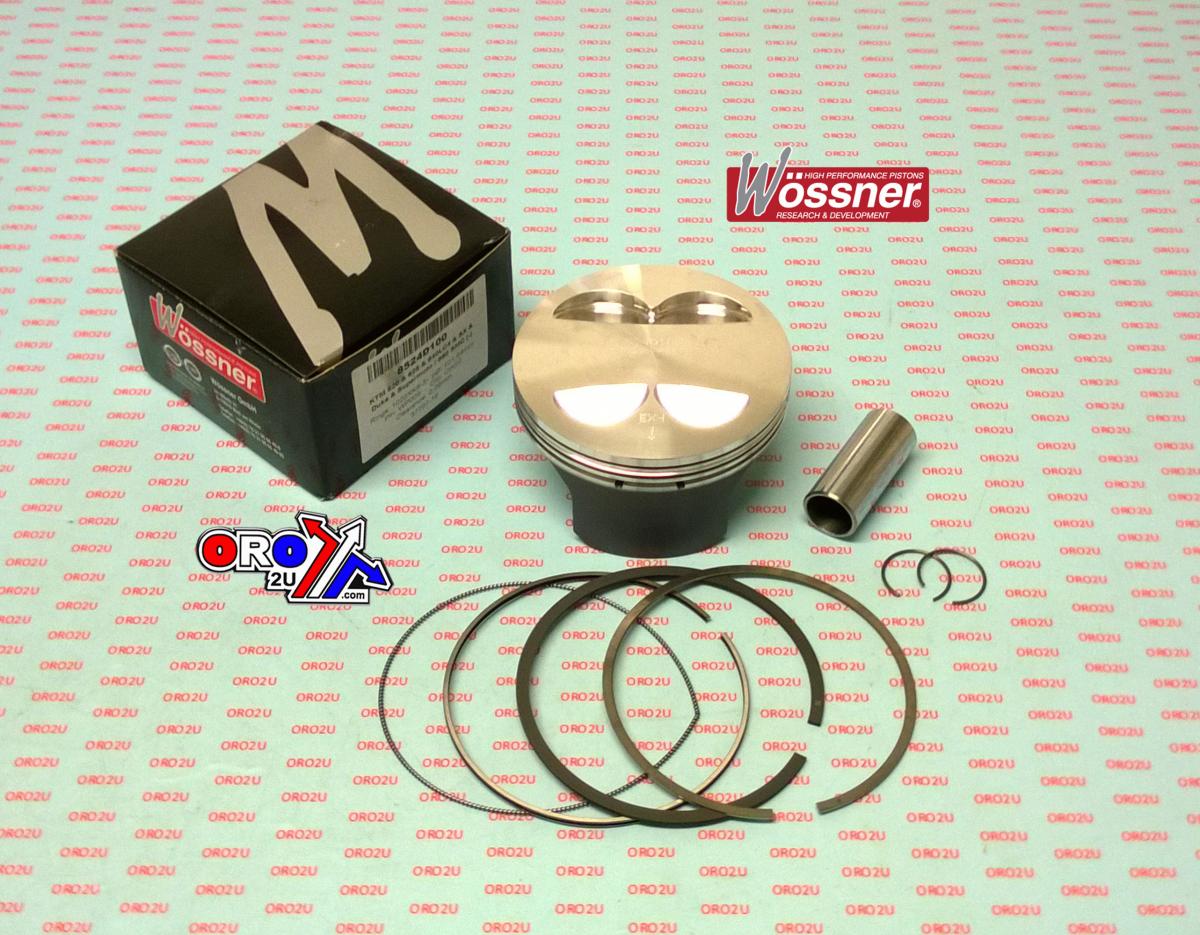

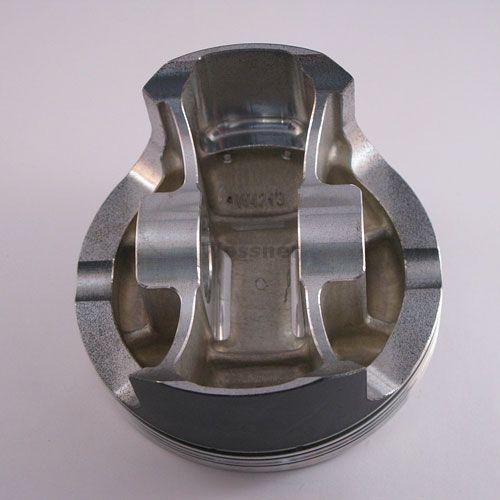

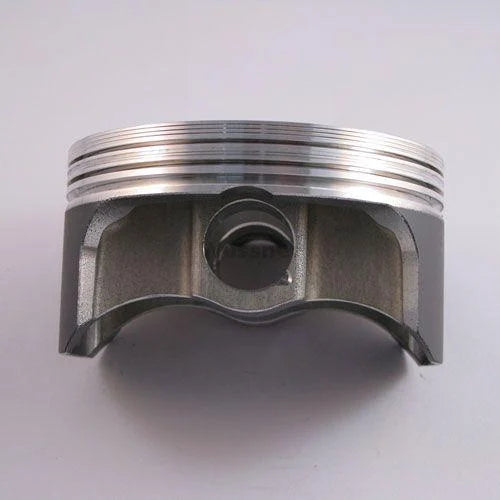

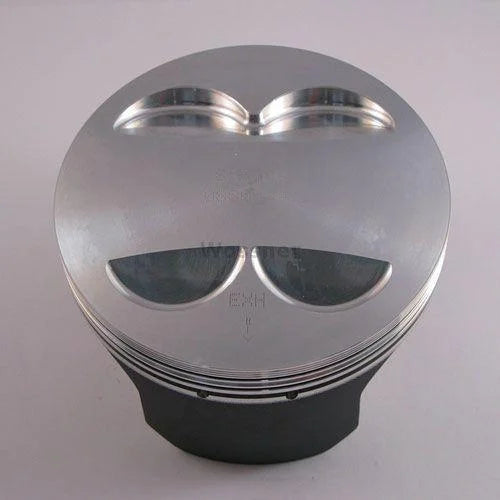

PISTON KIT 3-09 KTM660 SMC 102, WOSSNER WOSSNER 8524D100

Wossner 102.00mm forged piston kit is designed for strength and durability. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability.

Features

• Forged construction for enhanced strength and longevity


• Optimized heat transfer for improved engine performance


• Elliptical design prevents piston collapse and ensures even load distribution


• Manufactured in Germany for high-quality standards

Specifications

• Bore Size: 102.00mm


• Actual Bore Diameter: 101.94mm


• Displacement: 600 cm³


• Stroke: 76.00mm


• Clearance: 0.06mm


• Wossner Compression Ratio: OEM


• OEM Compression Ratio: 11.70:1


• Dome Volume: +8.00 cm³


• Compression Height: 26.50mm


• Lock Part Number: CW22


• Pin Part Number: WP009


• Ring Set Part Number: 1020XSK

Cross-Reference OEM Part Numbers

• Part No: 56-W4809.WO


• Wossner Part No: 8524D100

Vehicle Fitments

• KTM 660 SMC (2003 - 2009)
