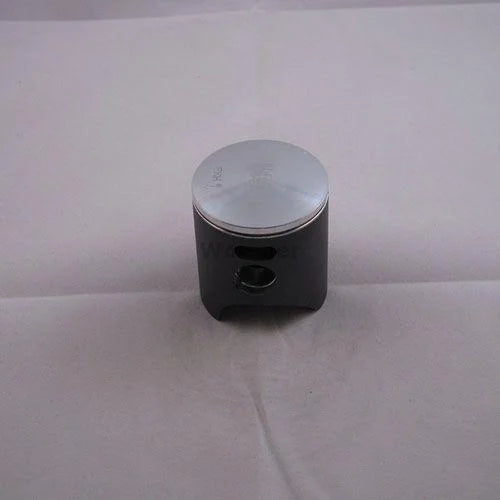

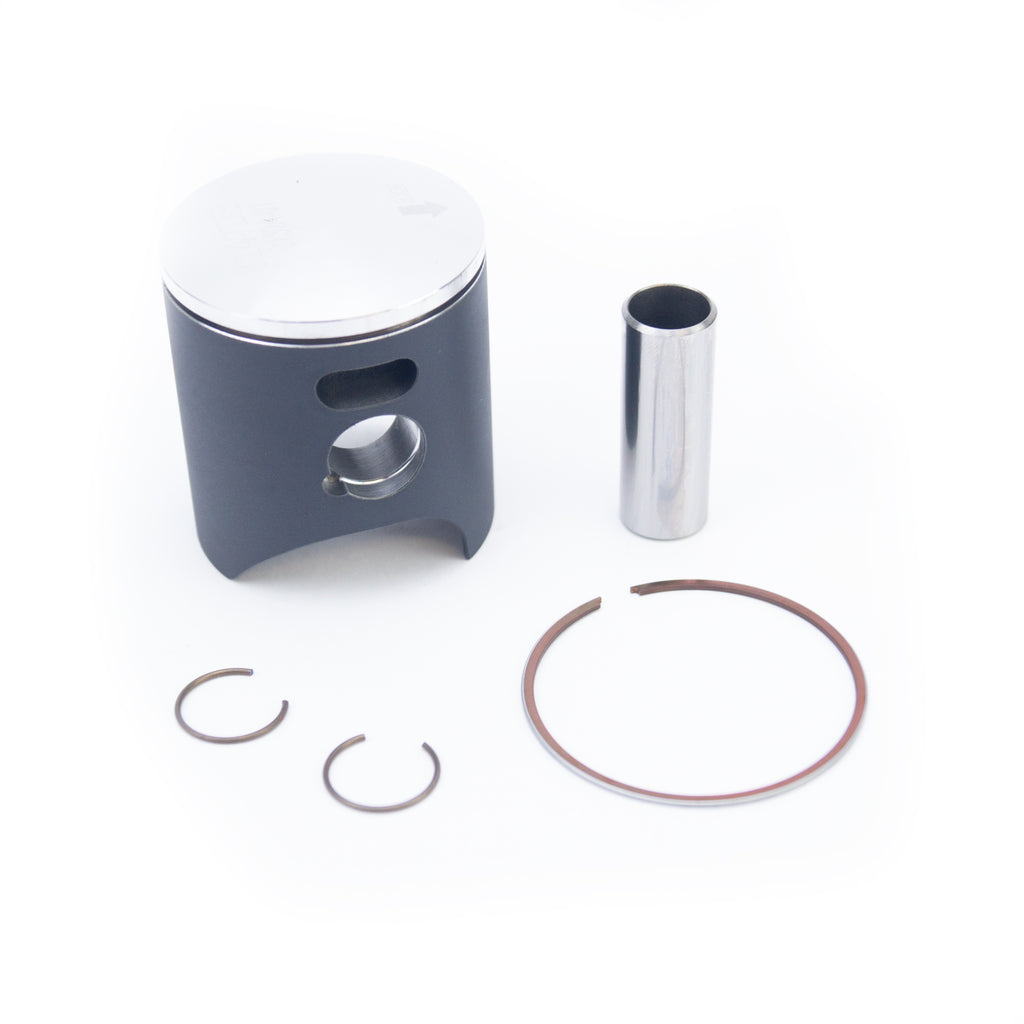

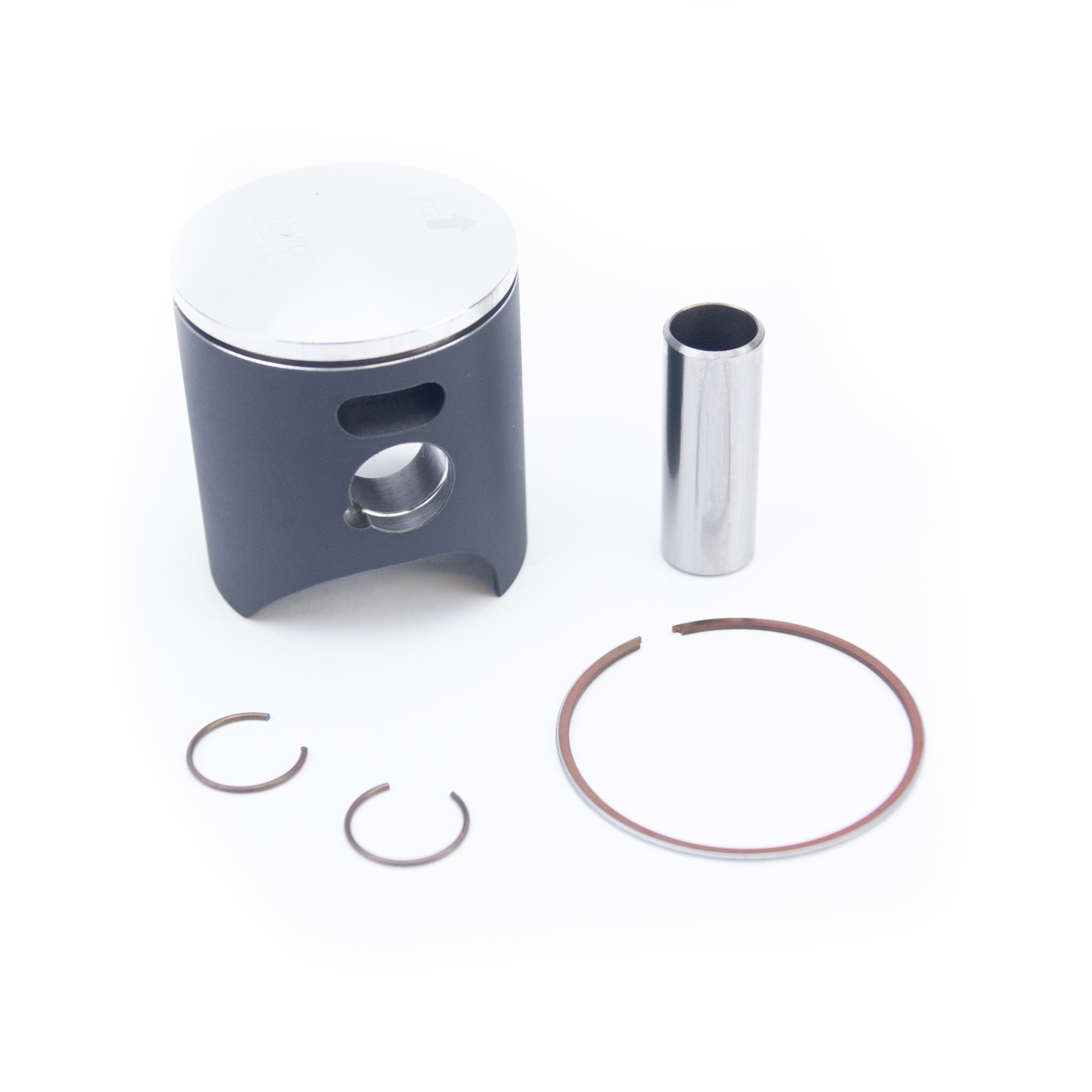

PISTON KIT 03-23 SX85 47.00 A, WOSSNER 8147DA FORGED KIT 50000260

Piston kit 47mm Bore 46.95 Wossner 8147DA (STD)

KTM

85 SX 2003-2023

Husqvarna

TC85 2016-2023

GASGAS

MC85 2021-2023



• Wossner forged pistons are superior in strength and design.


• Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.


• Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.


• Made in Germany.

Part No. 56-W012.A.WO (oro2u.com)

Lock P/N CW14,

Pin P/N WP058,

Ring Set P/N RSV4700

Rod P/N P2065 2014 -,

Needle bearing - N1006,

Main bearing - 2 x MB6304C3

Display (cm3) 84

Hub stroke (mm) 48.95

Clearance (mm) 0.05

Wossner compression Ratio: 2 stroke

OEM Compression ratio: 2 stroke

Dome volume (cm3) -

Compression height (mm) 24.00

Cross reference numbers ONLY.

50000260, 855M04700

Cross reference numbers ONLY. 47030007100 I / 47030007100 II ,
