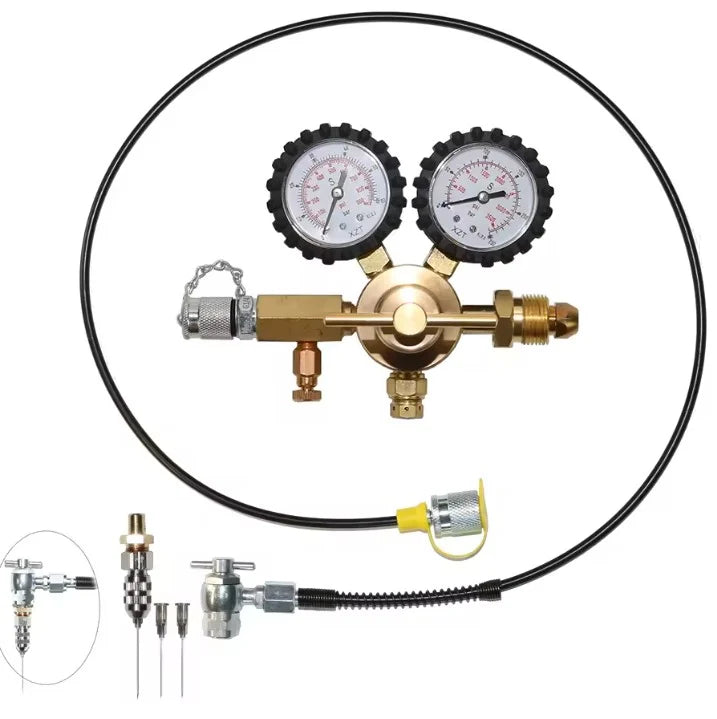

NITROGEN GAS FILL SYSTEM REGULATED CGA 580 CONNECTOR

This regulated nitrogen filling system is designed for controlled charging and pressure adjustment of shock absorbers and aircraft struts. It combines an S3 regulator, dual pressure gauges and a high-pressure no-loss chuck valve for use with nitrogen or compressed air.

Features

• No-loss chuck valve helps minimise pressure loss during connection and disconnection


• Suitable for charging off-road, ATV, UTV, dirt-bike, ATC, sand-rail and buggy shock absorbers


• Suitable for inflating and deflating aircraft struts


• Compact design


• Straightforward installation; professional fitting is recommended when unsure

Specifications

• Regulator type: S3 nitrogen regulator


• Regulator pressure rating: 3,600 psi


• High-pressure gauge range: 3,500 psi / 250 bar


• Secondary gauge range: 1,400 psi / 100 bar


• Cylinder connector: CGA 580


• Coupler type: high-pressure strut coupler


• Compatible gases: nitrogen and compressed air

Important Information

• Nitrogen cylinders can use different fittings depending on the gas supplier, so the supplied fitting may need to be changed


• Check the product image before ordering to confirm the required connections and avoid compatibility errors

Cross-Reference OEM Part Numbers

• K&L 37-9907


• Schrader 556


• 00-464


• 00-464.KL


• 00-464.DR
