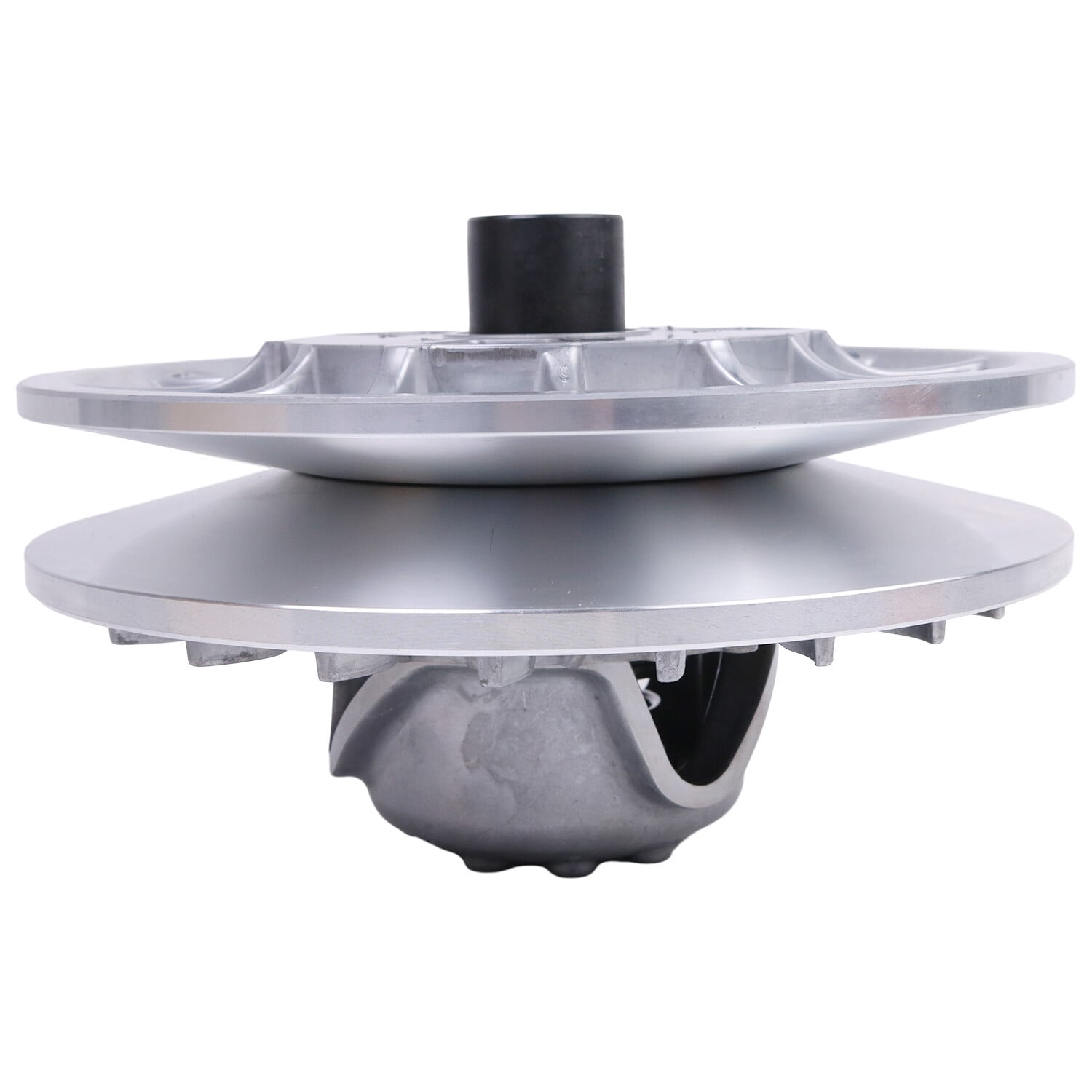

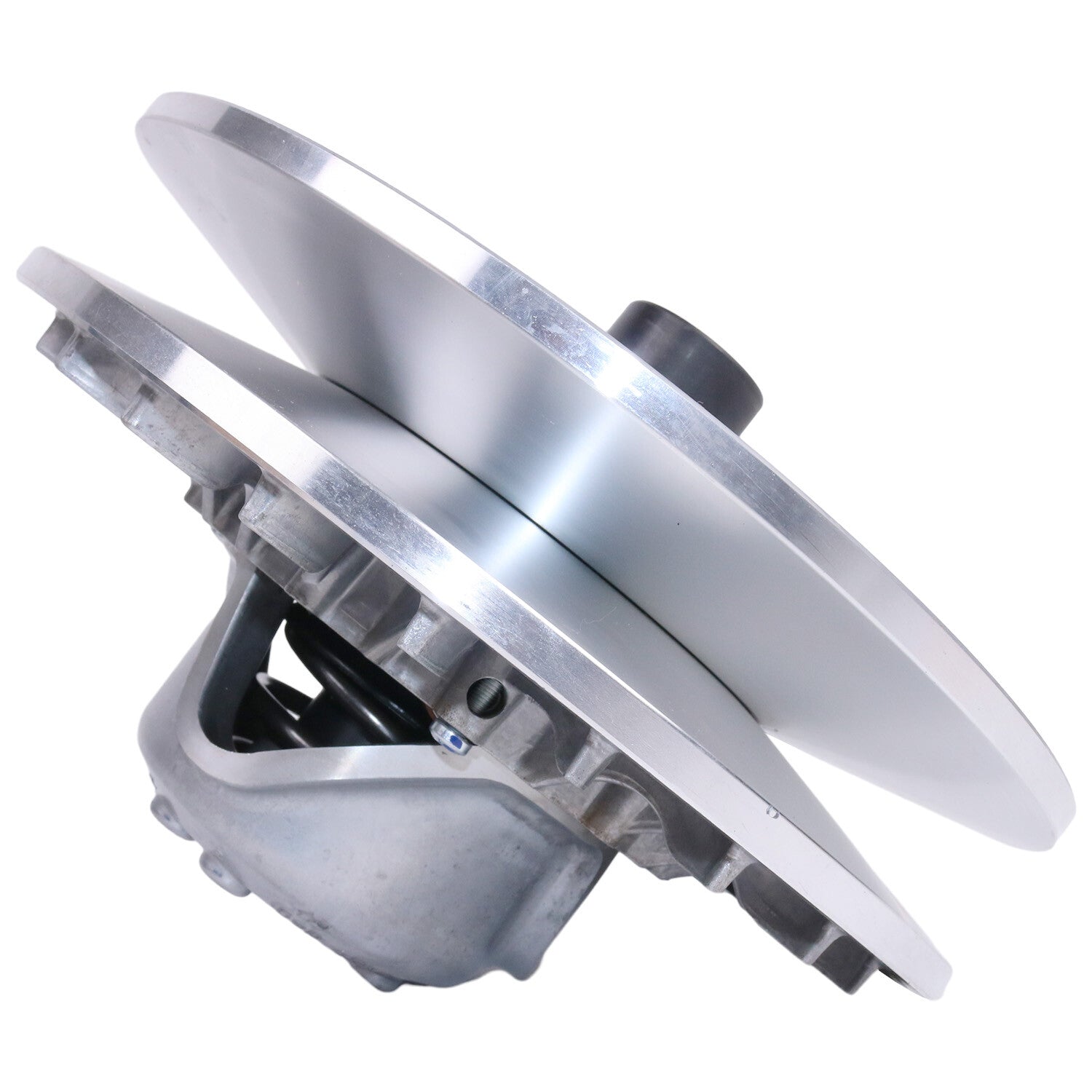

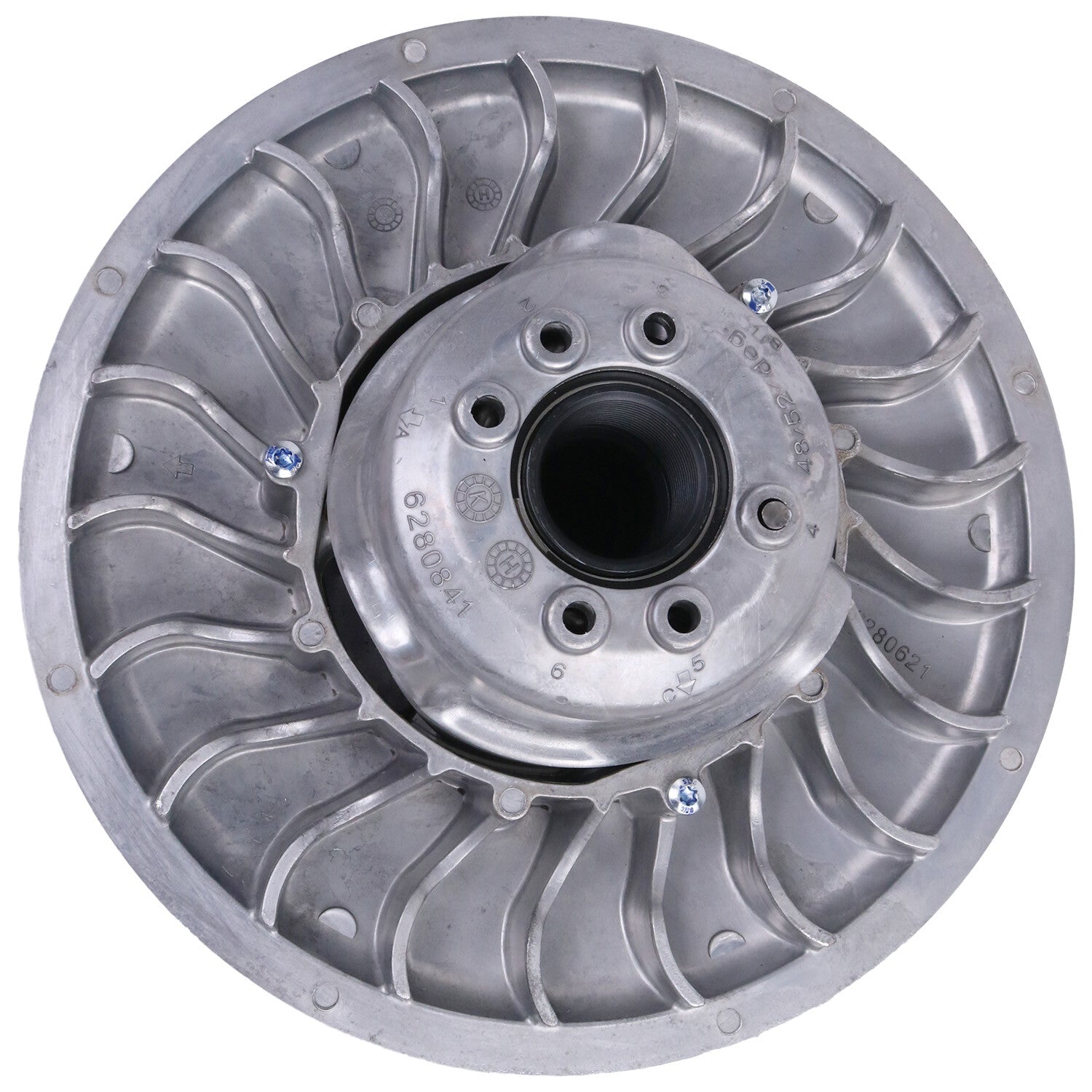

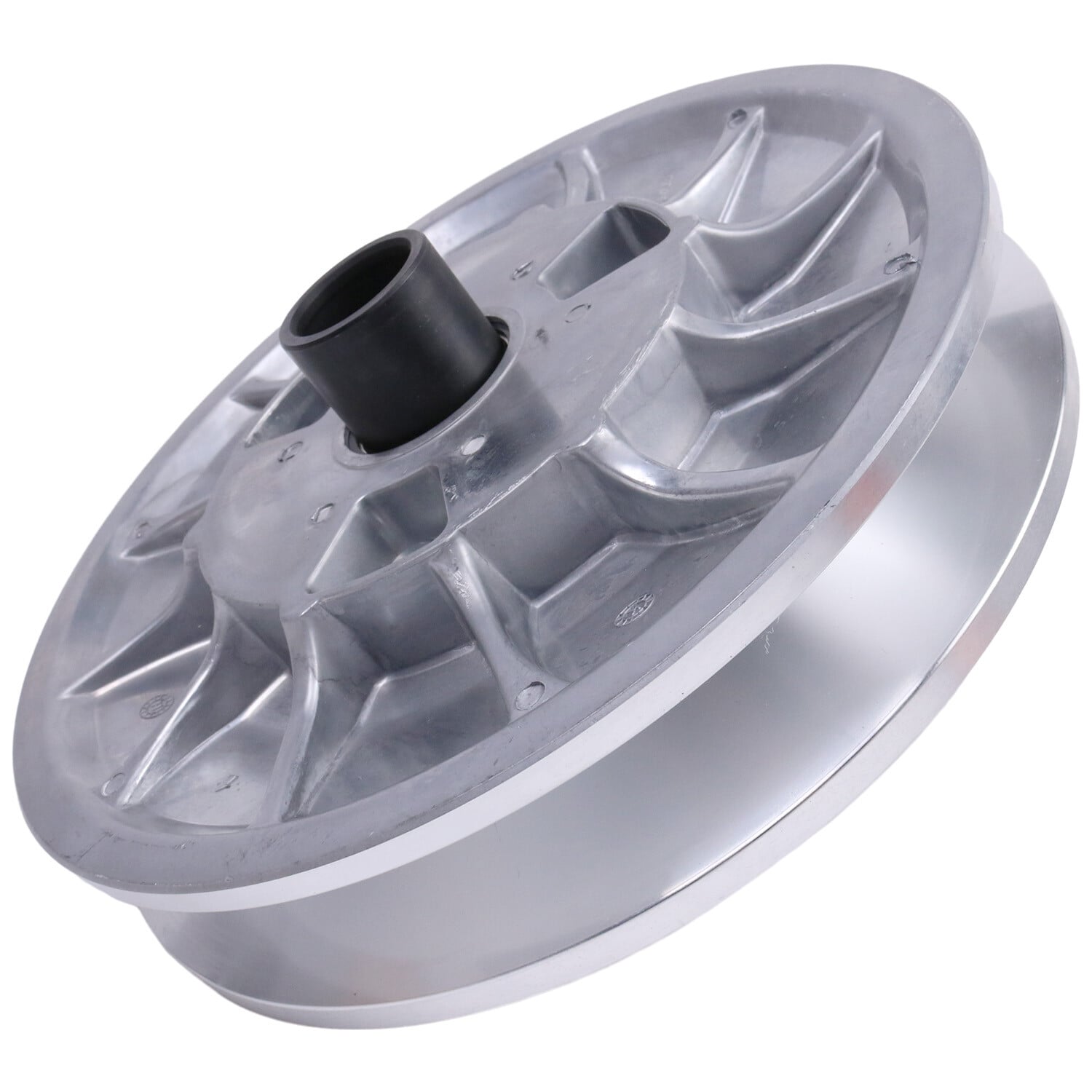

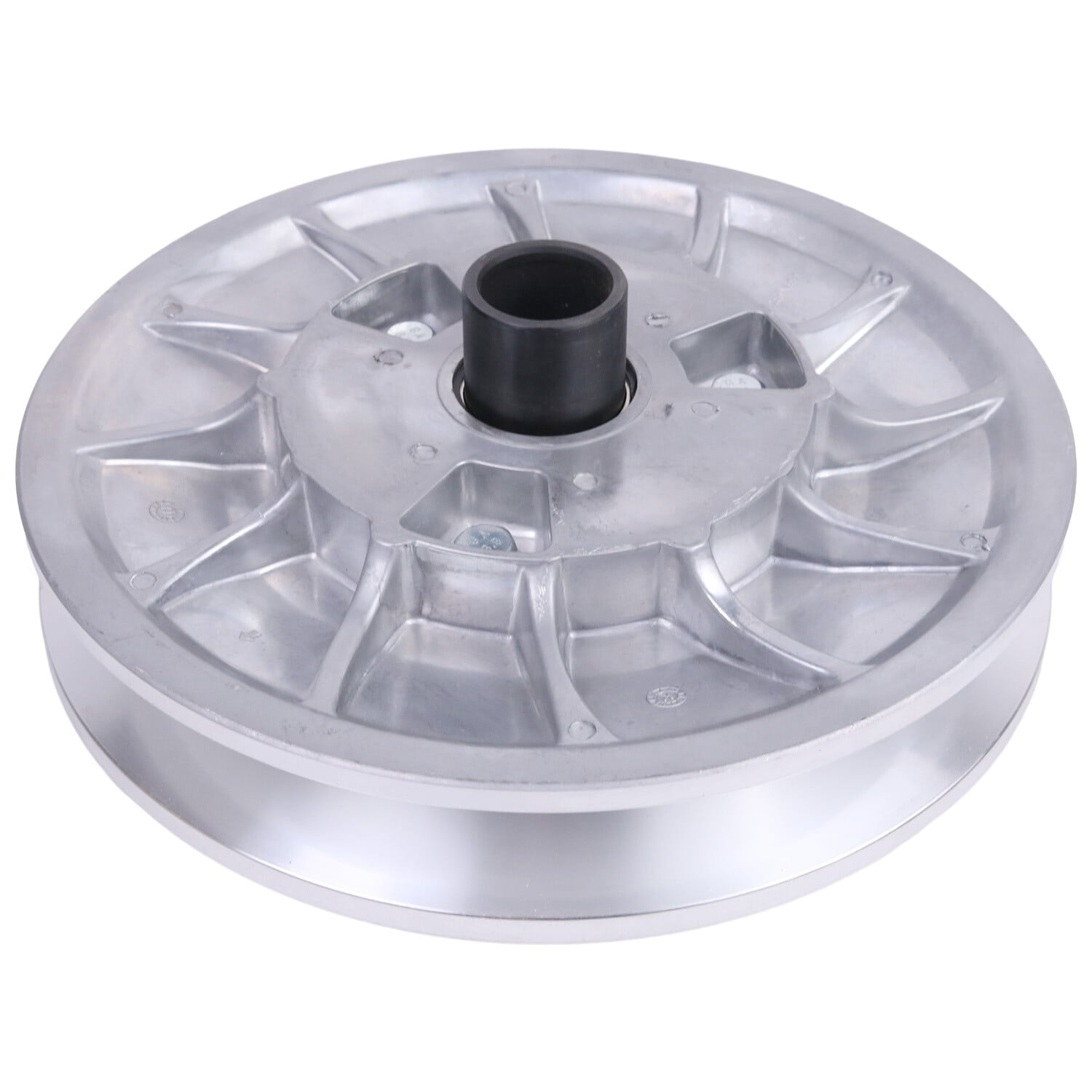

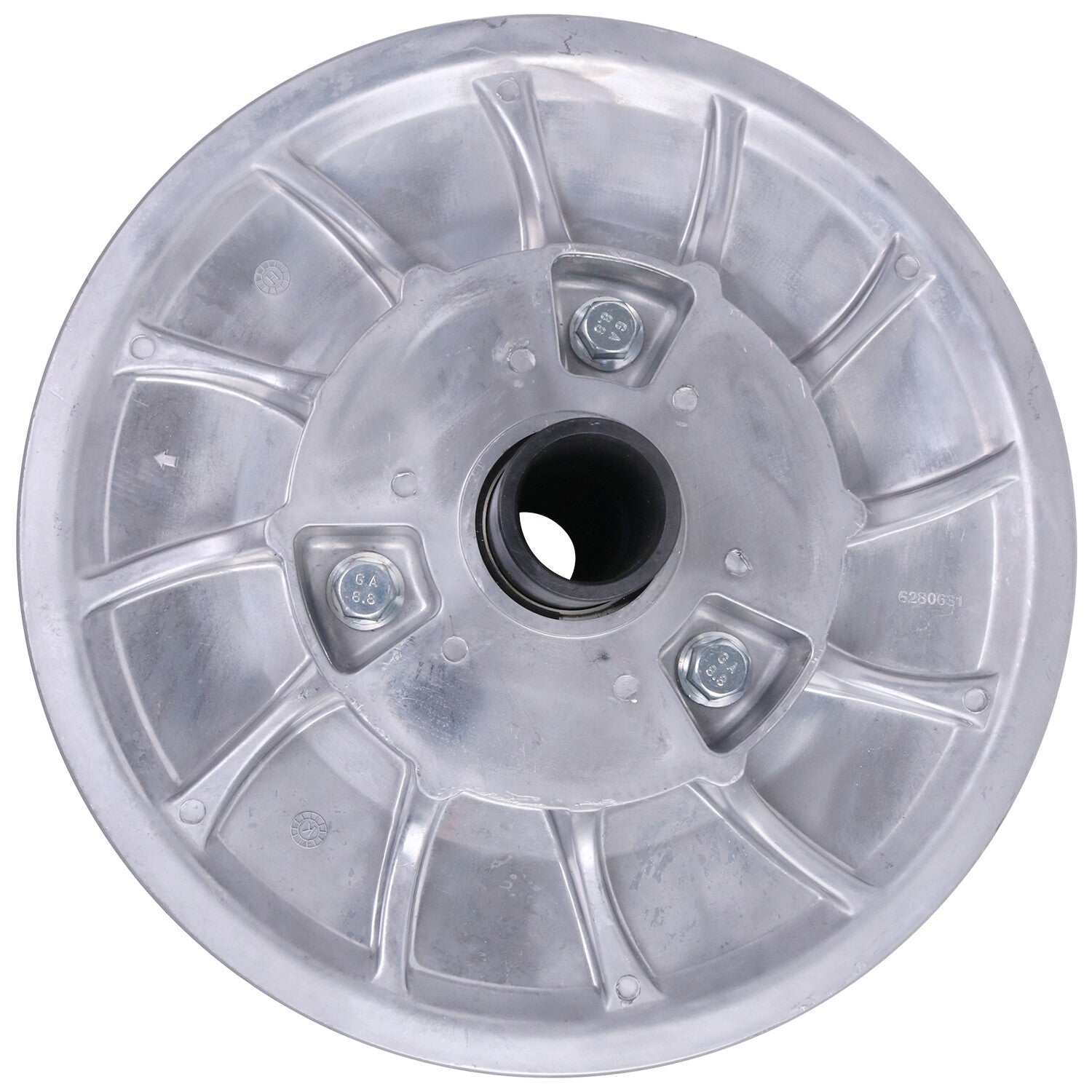

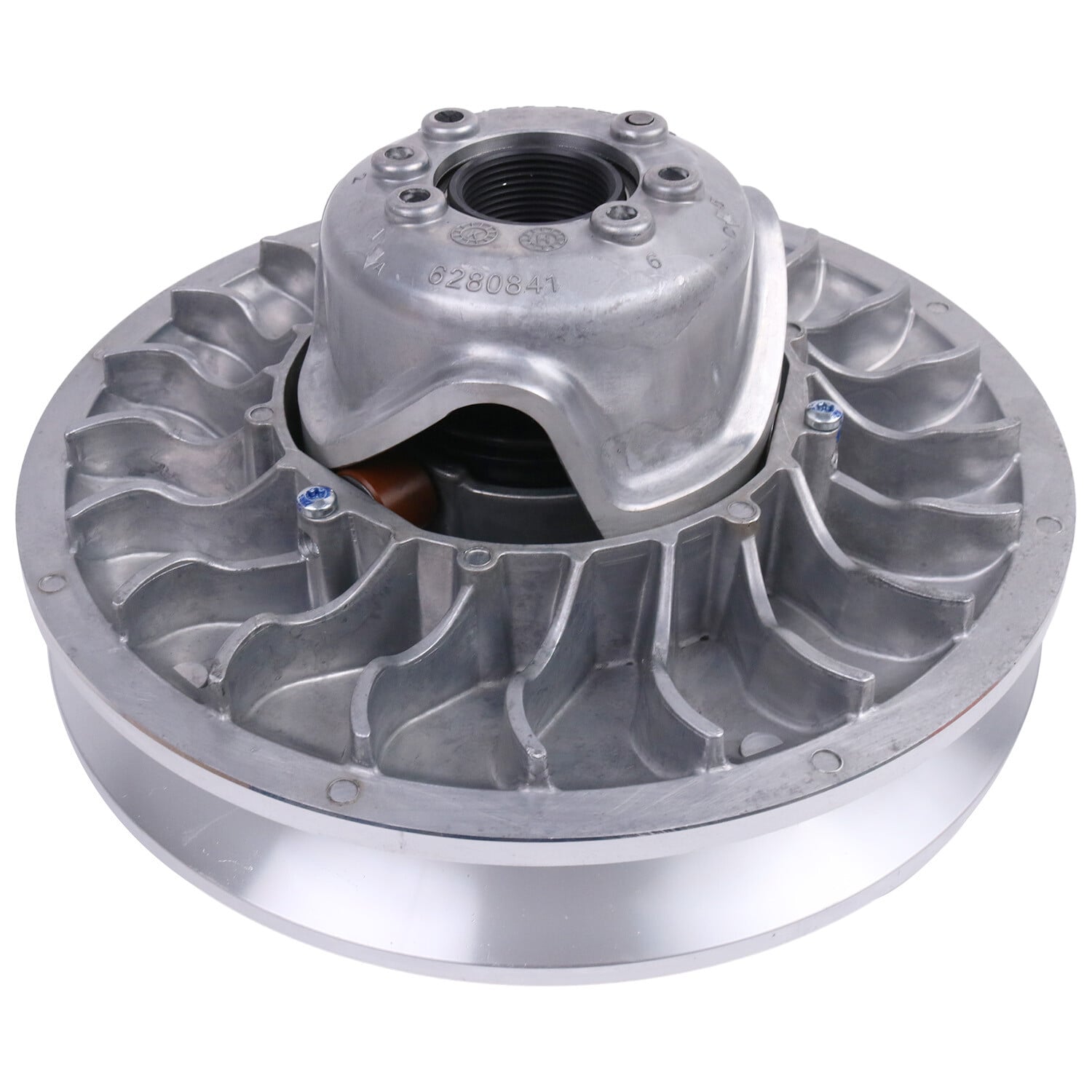

SECONDARY CLUTCH ASSEMBLY 17-26 CAN-AM COMMANDER MAVERICK SPORT X3 MAX 900 1000R 420686738

This is the complete driven (secondary) clutch assembly for Can-Am Maverick X3 CVT systems. It is supplied as a ready-to-install assembly and uses the genuine fixed outer half pulley (fixed flange) OEM 420280626 within the unit.

Features

• Complete secondary clutch (driven pulley) supplied pre-assembled


• Includes fixed outer half pulley, sliding pulley, cam (helix), spring, rollers and pins


• Direct OEM geometry for correct belt ratio control and back-shift


• One assembly required per vehicle

Specifications

• OEM complete assembly number: 420686738 (Driven Pulley)


• Included fixed outer half pulley (fixed flange): 420280626


• Included sliding pulley (movable sheave): 420280636


• Cam (helix) used by application: 420280706 (37/50) or 420280846 (48/52)


• Secondary spring used by application: 420638124 (Turbo/Turbo R) or 420638126 (Turbo RR)


• Rollers: 417127016 (three required)


• Roller pin: 420629192


• CVT position: Driven (secondary) clutch


• Quantity per vehicle: 1

Cross-Reference OEM Part Numbers

• 420686738 – Driven Pulley (complete secondary clutch assembly)


• 420280626 – Outer Half Pulley Ass’y (fixed flange), secondary clutch


• 420280636 – Sliding Pulley Ass’y (movable sheave), secondary clutch


• 420280706 – Cam 37/50 Ass’y


• 420280846 – Cam 48/52 Ass’y


• 420638124 – Compression Spring (Turbo/Turbo R applications)


• 420638126 – Compression Spring (Turbo RR applications)


• 417127016 – Pulley Roller


• 420629192 – Roller Pin


• 422280652 – Drive Belt (commonly paired across Maverick X3 turbo models; belt not included)

Vehicle Fitments

Commander

• 1000R EFI DPS (2021-2026)


• 1000R EFI XMR (2022-2026)


• 1000R EFI XT (2021-2026)


• 1000R EFI XTP (2021-2026)

Commander MAX

• 1000R EFI DPS (2021-2026)


• 1000R EFI XMR (2024-2026)


• 1000R EFI XT (2021-2026)


• 1000R EFI XTP (2022-2026)

Maverick

• Turbo (2019)


• Turbo DS (2021-2026)


• Turbo RS (2024-2026)


• Turbo STD (2020)


• Turbo X (2026)


• Turbo XMR (2020-2021)


• Turbo XRC (2020-2021)


• Turbo R (2019)


• Turbo R DS (2021)


• Turbo R RS (2021)


• Turbo R STD (2020)


• Turbo R XDS (2020)


• Turbo R XRS (2020)


• Turbo RR DS (2020, 2022-2026)


• Turbo RR RS (2022-2026)


• Turbo RR STD (2020)


• Turbo RR XDS (2020-2024)


• Turbo RR XDS SAS (2025-2026)


• Turbo RR XDS STD (2025-2026)


• Turbo RR XMR (2020-2023, 2025-2026)


• Turbo RR XRC (2020-2026)


• Turbo RR XRS (2020-2022)


• Turbo RR XRS SAS (2025-2026)


• Turbo RR XRS Smart Shock (2023-2024)


• Turbo RR XRS STD (2023-2026)

Maverick MAX

• Turbo (2019-2020)


• Turbo DS (2021-2026)


• Turbo RS (2024-2026)


• Turbo X (2026)


• Turbo R (2019)


• Turbo R DS (2021)


• Turbo R RS (2021)


• Turbo R STD (2020)


• Turbo R XDS (2020)


• Turbo R XRS (2020)


• Turbo RR DS (2020, 2022-2026)


• Turbo RR RS (2022-2026)


• Turbo RR STD (2020)


• Turbo RR XDS (2020-2024)


• Turbo RR XDS SAS (2025-2026)


• Turbo RR XDS STD (2025-2026)


• Turbo RR XMR (2020-2026)


• Turbo RR XRC (2024-2026)


• Turbo RR XRS (2020-2022)


• Turbo RR XRS SAS (2025-2026)


• Turbo RR XRS Smart Shock (2023-2024)


• Turbo RR XRS STD (2023-2026)

Maverick Sport

• 1000R DPS (2019-2026)


• 1000R XMR (2019-2026)


• 1000R XRC (2019-2026)


• 1000R XXC (2020-2023)

Maverick Sport MAX

• 1000R (2020)


• 1000R DPS (2019, 2021-2026)

Maverick X3

• X3 (2017)


• 900HO (2018)


• Turbo STD (2018)


• Turbo XMR (2018)


• Turbo XRC (2018)


• Turbo R STD (2018)


• Turbo R XDS DPS (2018)


• Turbo R XMR (2018)


• Turbo R XRC (2018)


• Turbo R XRS DPS (2018)


• Turbo R XRS DPS with Smart-Lok (2018)

Maverick X3 MAX

• X3 MAX (2017)


• Turbo STD (2018)


• Turbo R STD (2018)


• Turbo R XDS DPS (2018)


• Turbo R XRS DPS (2018)


• Turbo R XRS DPS with Smart-Lok (2018)
