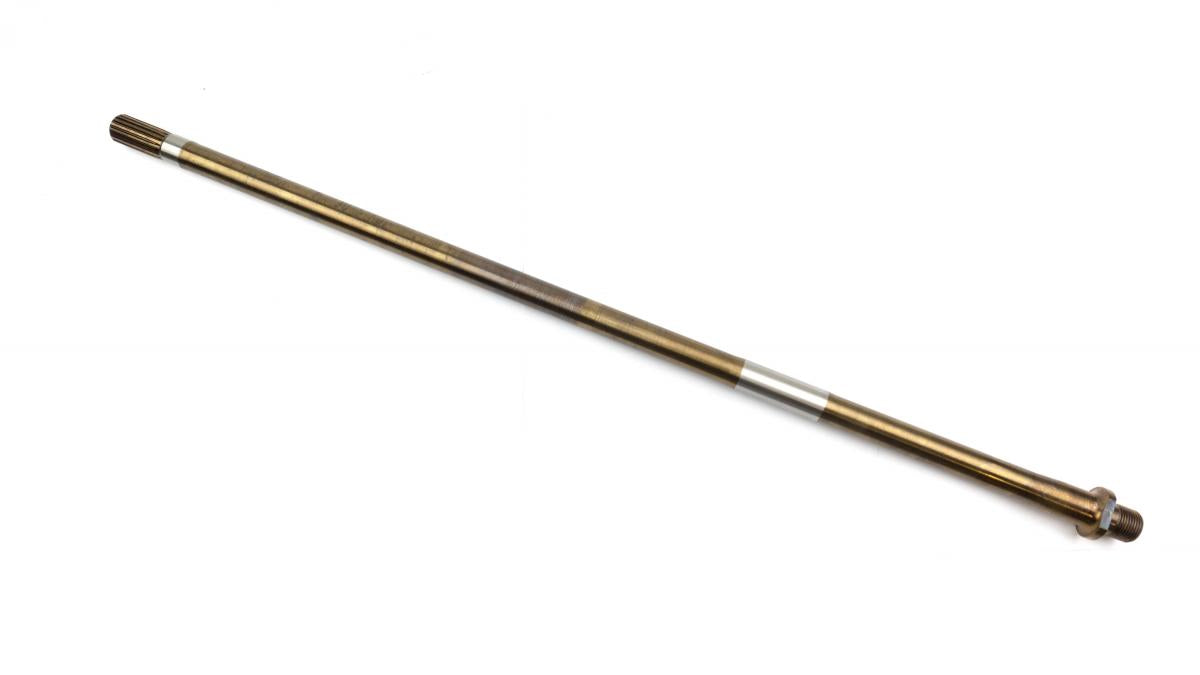

KAWASAKI DRIVELINE SHAFT, WC-03342, 39159-3738, JET SKI, PWC DRIVE PARTS

This driveline shaft is designed for the Kawasaki Jet Ski 800 SX-R stand-up PWC and provides the mechanical link between the engine and the jet pump impeller. It is a direct-fit replacement for the original driveshaft used on model years 2003–2011 and corresponds to aftermarket reference WC-03342, replacing Kawasaki OEM number 39159-3738.

Features

• Transfers torque from the crankshaft to the impeller for consistent propulsion


• Threaded at one end and splined at the other for correct interface with coupler and impeller


• Engineered to withstand friction and fatigue at the threads and splines


• Direct-fit geometry for the 800 SX-R driveline and pump assembly

Specifications

• Part type: Drive shaft / driveline shaft


• Manufacturer reference: WC-03342


• Overall length: 27 1/8 in (approx. 689 mm)


• End configuration: One threaded end / one splined end


• Application: Kawasaki JS800 800 SX-R stand-up personal watercraft

Cross-Reference OEM Part Numbers

• Kawasaki 39159-3738


• Kawasaki 391593738

Vehicle Fitments

•


  Kawasaki Jet Ski 800 SX-R (JS800), 2003–2011
