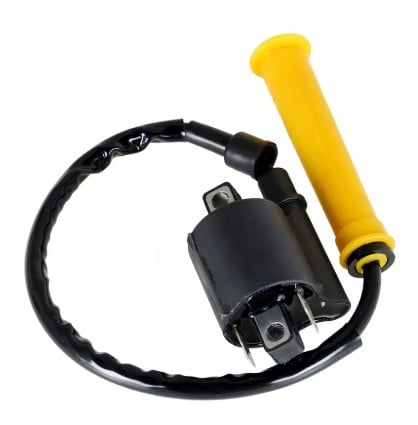

IGNITION COIL SPARK PLUG CAP 07-14 HONDA RANCHER TRX 420 HD 30510-HP5-601 30700-MBN-671

This HD ignition coil and spark plug cap noise suppressor set is designed to replace the original ignition components on Honda Rancher TRX420 models. It supports reliable spark delivery for engine starting and running, with application coverage focused on 2007 to 2013 TRX420 models and the additional 2014 fitments listed below.

Features

• Direct replacement ignition coil and spark plug cap noise suppressor set for Honda Rancher TRX420 applications.


• Supports reliable ignition performance and consistent spark delivery.


• Designed for straightforward installation in place of the original unit.


• Built to meet or exceed OEM quality standards.


• Designed to handle increased power loads.


• Supplied as a cost-effective replacement option.


• Product image should be checked before ordering to confirm compatibility.


• Professional assistance is recommended if installation is uncertain.

Specifications

• Product type: HD ignition coil and spark plug cap noise suppressor set.


• Application: Honda Rancher TRX420 ATV models.


• Main model year range: 2007 to 2013.


• Additional listed fitments: selected 2014 TRX420FA and TRX420FPA models.


• Assembly location: wire harness.


• Approximate ignition coil length: 72 mm.


• Approximate ignition coil width: 51 mm.


• Approximate ignition coil height: 38 mm.


• Approximate distance between fixing holes: 63 mm.


• Approximate wire length: 500 mm.

Cross-Reference OEM Part Numbers

• 30510-HP5-601


• 30700-MBN-671


• CAP ASSY. NOISE SUPPRESSOR 30700-MBN-671

Vehicle Fitments

Honda

• TRX420FA (2014)


• TRX420FA2 (2009-2013)


• TRX420FAA (2009-2012)


• TRX420FE (2007-2013)


• TRX420FE2 (2007-2013)


• TRX420FM (2007-2013)


• TRX420FM2 (2007-2013)


• TRX420FPA (2014)


• TRX420FPA2 (2009-2013)


• TRX420FPAA (2009-2013)


• TRX420FPE (2009-2013)


• TRX420FPE2 (2009-2013)


• TRX420FPM (2009-2013)


• TRX420FPM2 (2009-2013)


• TRX420TE (2007-2013)


• TRX420TM (2007-2013)
