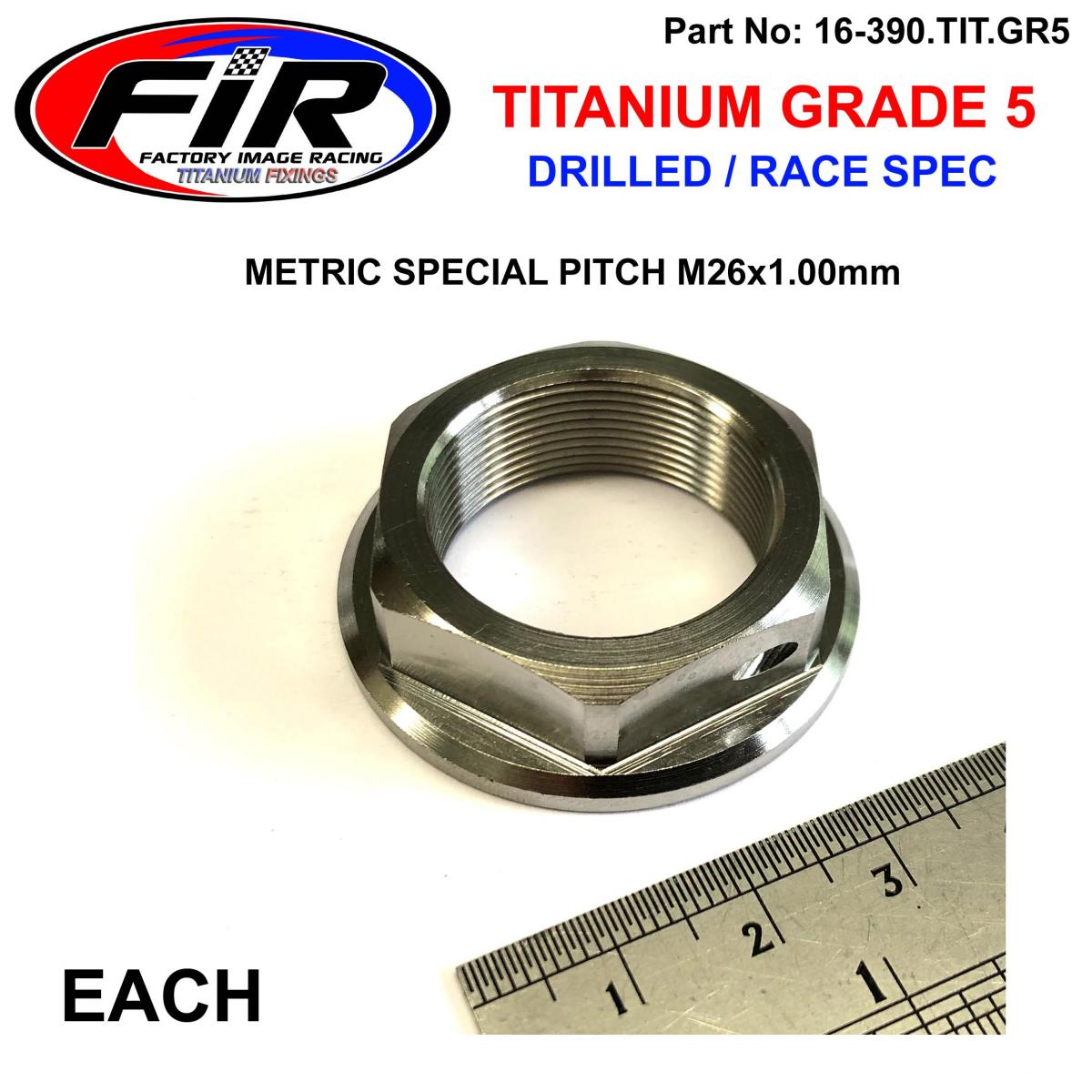

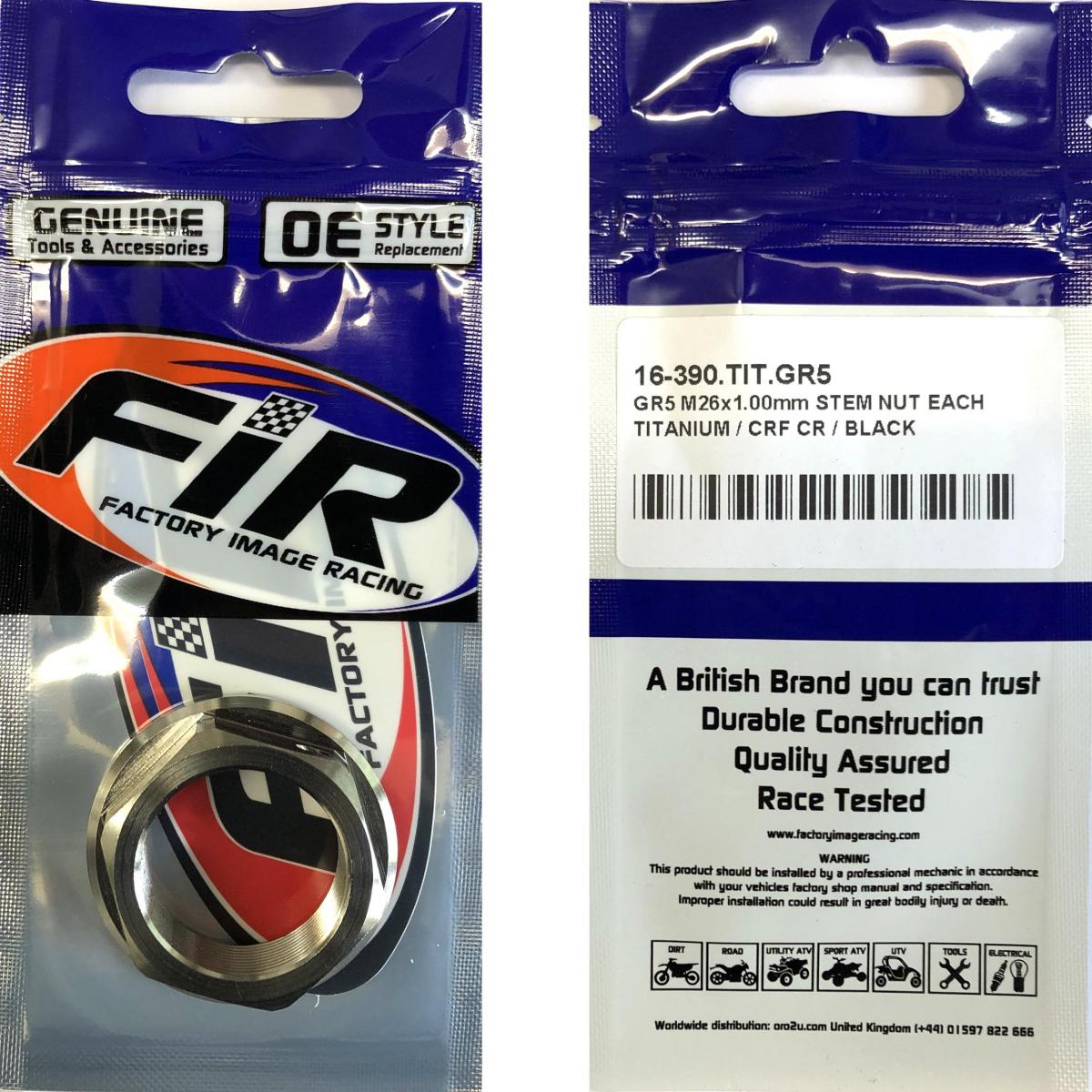

GR5 M26x1.00mm STEM NUT EACH, TITANIUM / CRF CR, / CNC

This Factory Image Racing titanium flange nut is designed for compatible Honda motorcycle applications where a lightweight, corrosion-resistant Grade 5 titanium fixing is required. It uses a smooth, flush flange face and is supplied as a single nut, with no washer required beneath the flange during installation.

Features

• Titanium flange nut for compatible Honda models


• Smooth, flush flange surface


• Designed to be fitted without a washer under the flange nut


• Supplied as a single fixing


• Factory Image Racing fixing manufactured from Grade 5 titanium

Specifications

• Material: Grade 5 titanium 6Al/4V


• Thread pitch: M26 x 1.00 mm


• Outer diameter: 40.00 mm


• Overall height: 11.20 mm


• Head hex size: 32 mm spanner


• Pack quantity: 1

Cross-Reference OEM Part Numbers

• 50306-GN5-900


• 50306-GN5-830


• 90304-KZ4-J30


• MX-08270

Vehicle Fitments

Honda

• ANF125 (2007-2012)


• CR125R (2001-2007)


• FES125 (2005-2012)


• FES125A (2007-2012)


• SH125 (2013)


• SH125A (2013)


• SH125AD (2013)


• SH125D (2013)


• WW125 (2013)


• WW125EX2 (2012)


• FES150 (2007-2009)


• FES150A (2007-2009)


• CR250R (2001-2007)


• CRF250R (2004-2020)


• CRF250RH (2017)


• CRF250RX (2019-2020)


• CRF250X (2005-2020)


• NSS250A (2008-2011)


• NSS250S (2008-2011)


• SH300 (2007-2013)


• SH300A (2007-2013)


• SH300AR (2008)


• SH300R (2008, 2012-2013)


• SH300RA (2012-2013)


• FJS400 (2011)


• FJS400A (2009-2011)


• FJS400D (2009-2010)


• CRF450L (2019-2020)


• CRF450R (2004-2020)


• CRF450RX (2018-2020)


• CRF450X (2005-2020)


• FJS600A (2005-2006, 2011-2012)


• FJS600D (2005-2006, 2011)
