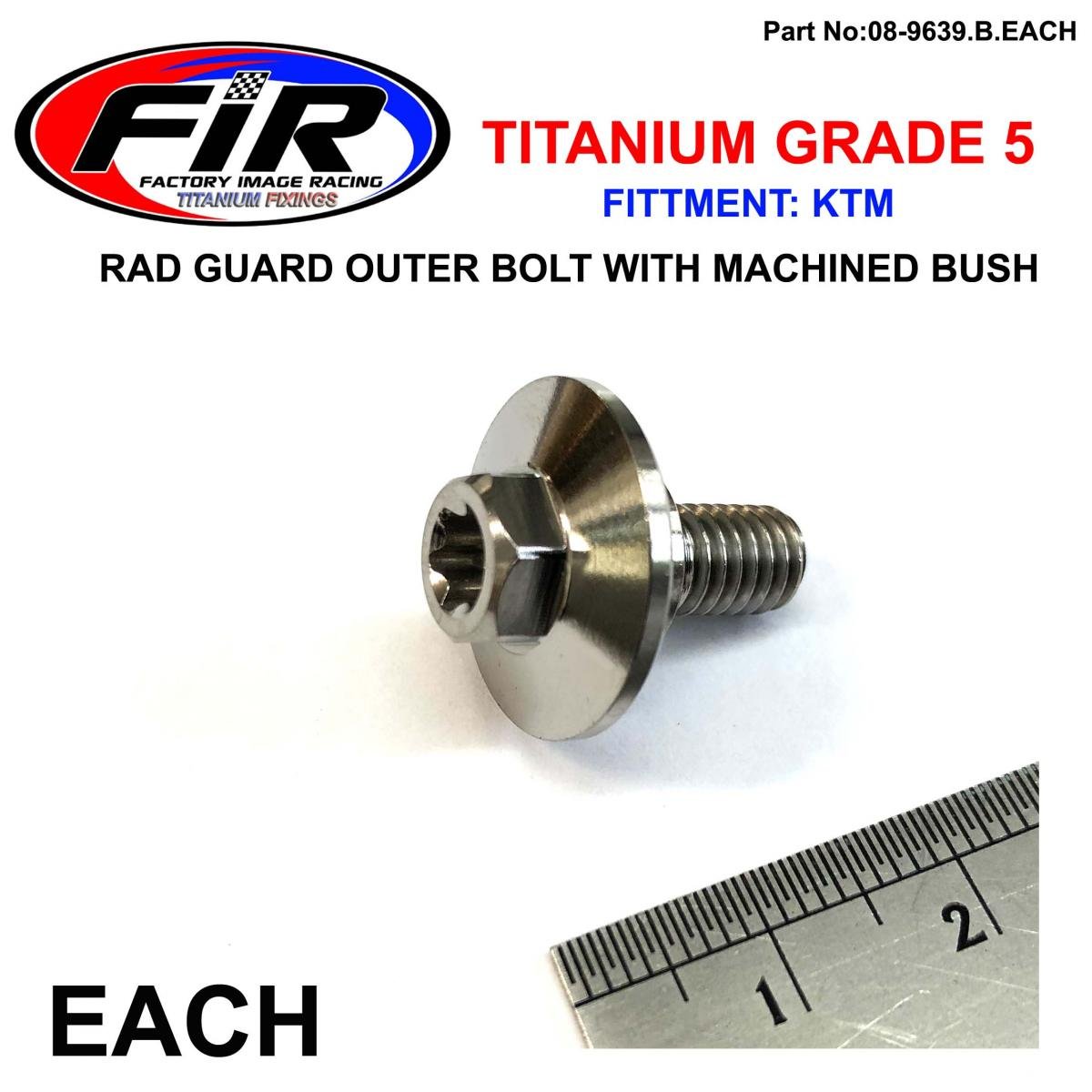

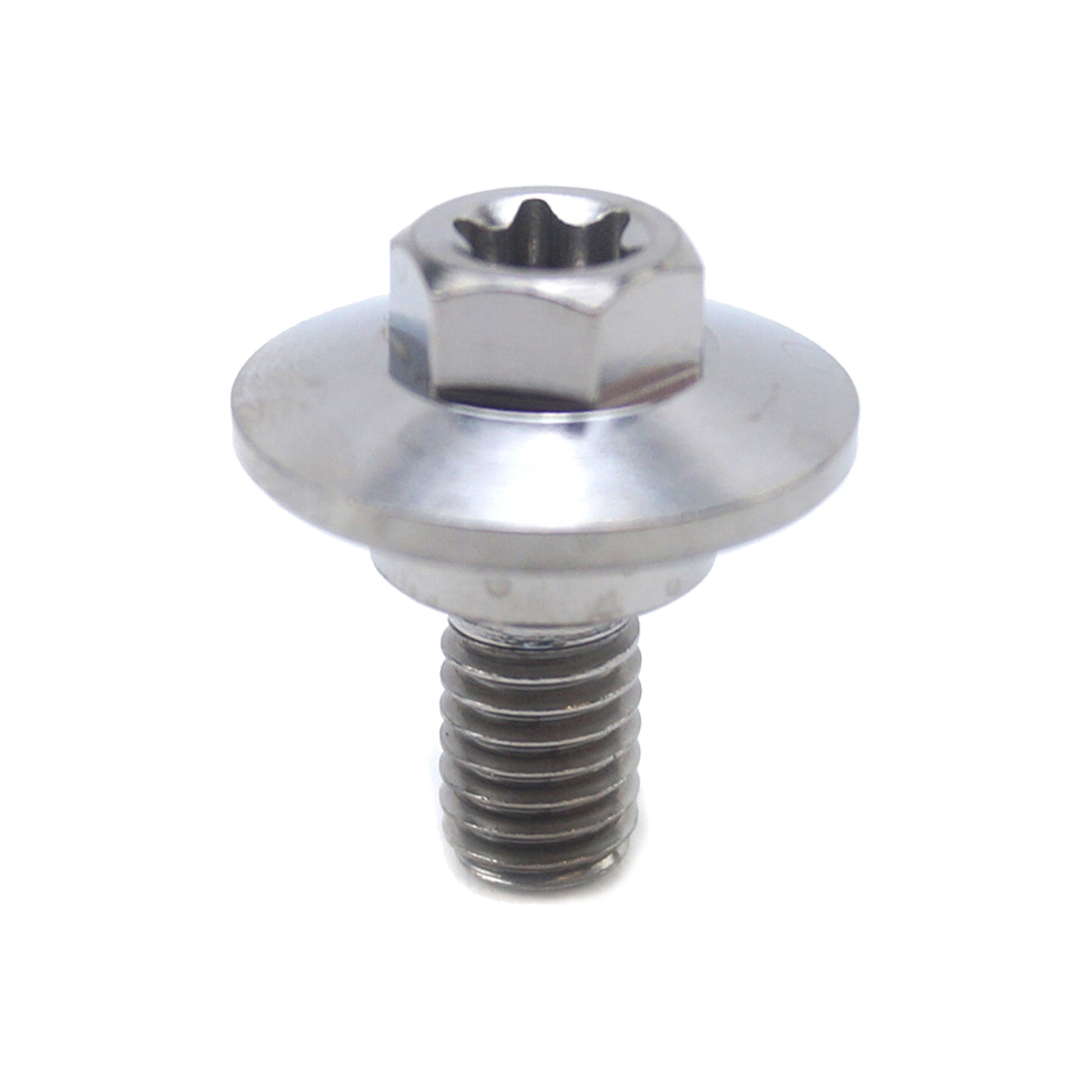

GR5 KTM RAD GUARD OUTER BOLT EA TITANIUM, SX EXC SXF EXCF 16-2020 / WITH BUSH, / 0025060166

TITANIUM GRADE 5

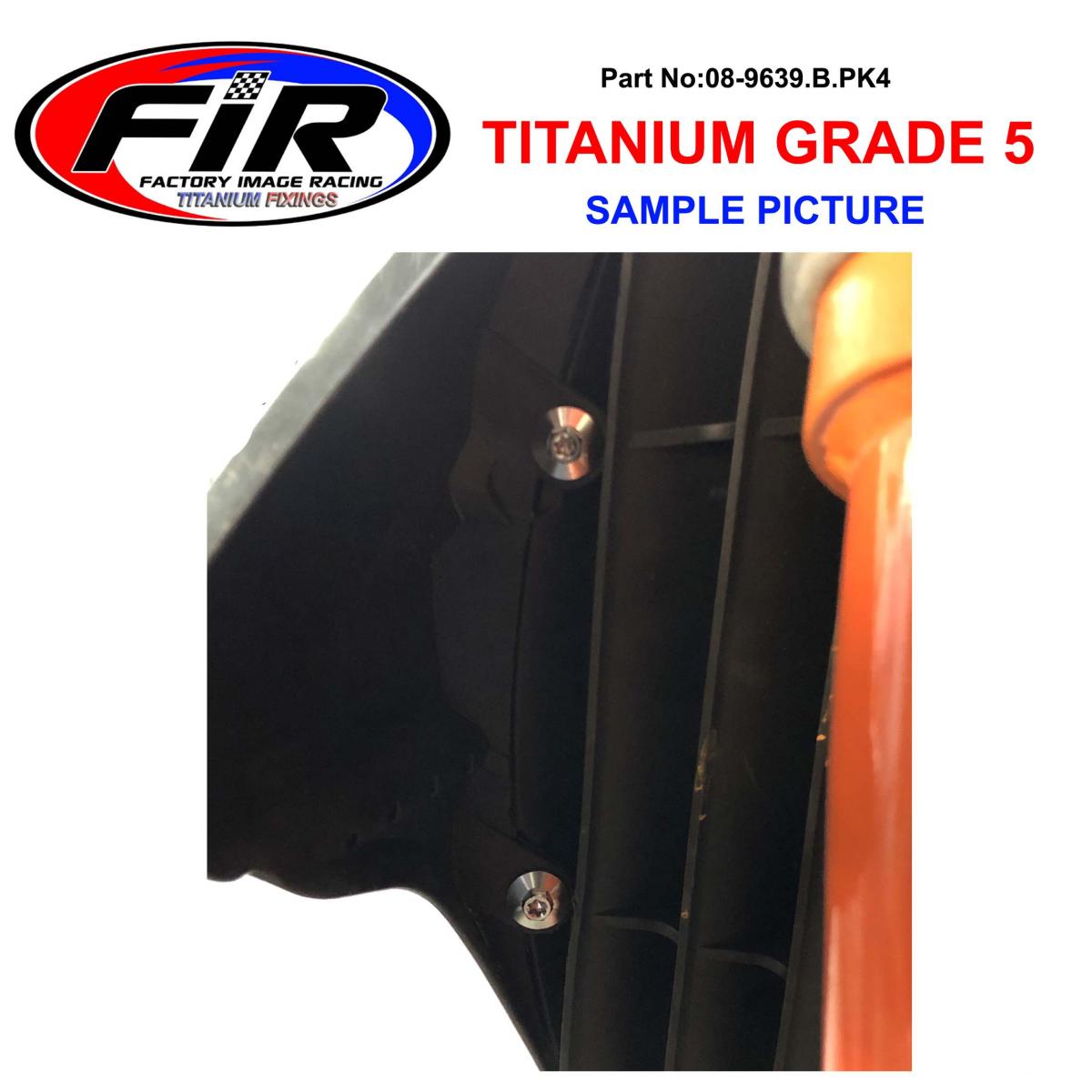

THIS BOLT IS USE FOR THE RAD COVER TO RAD SIDE PANEL, PLEASE REMOVE THE OLD BUSH IN THE PLASTICS BEFORE FITTING THE NEW TITANIUM BOLTS AS IT IS MACHINED WITH THE BUSH ON IT FOR EASY CLEANING AND FITTING.



• Material: Grade 5 (6Al/4V)


• Thread D: M6


• Pitch P: M Coarse 1.00mm


• Overall length L: 13.50mm


• Thread length : 10mm


• Bush OD : 9.95mm


• Bush length : 3.50mm


• Head Dual : T45 Torx & 8mm Spanner


• Head Type : Round


• Flange OD:17.80mm


• Pack size : 1

CNC machined with rolled threads from super strong grade 5 titanium alloy used for its high strength super-light properties, also fantastic anti- corrosion properties. Used in every application from Motorcycles ,cycles & much more.

Part No. 08-9639.B.EACH (oro2u.com)

Cross reference numbers >0025060166 & 79608052000

THE BOLT HAS BEEN BUILT WITH THE BUSH ON IT.

HH COLLAR SCREW M6X16 TX30 KTM OEM NO:0025060166

BUSH 6X11X16X5 MM KTM OEM NO:79608052000



2017 125 SX - Tank, Seat, Cover

2017 150 SX - Tank, Seat, Cover

2017 150 XC-W - Tank, Seat, Cover

2017 250 EXC-F - Tank, Seat, Cover

2017 250 SX - Tank, Seat, Cover

2017 250 SX-F - Tank, Seat, Cover

2017 250 XC-F - Tank, Seat, Cover

2017 250 XC-W - Tank, Seat, Cover

2017 300 XC - Tank, Seat, Cover

2017 300 XC-W - Tank, Seat, Cover

2017 300 XC-W Six Days - Tank, Seat, Cover

2017 350 EXC-F - Tank, Seat, Cover

2017 350 SX-F - Tank, Seat, Cover

2017 350 XC-F - Tank, Seat, Cover

2017 450 EXC-F Six Days - Tank, Seat, Cover

2017 450 SX-F - Tank, Seat, Cover

2017 450 XC-F - Tank, Seat, Cover

2017 500 EXC-F - Tank, Seat, Cover

2017 65 SX - Tank, Seat, Cover

2018 125 SX - Tank, Seat, Cover

2018 150 SX - Tank, Seat, Cover

2018 150 XC-W - Tank, Seat, Cover

2018 250 EXC-F - Tank, Seat, Cover

2018 250 SX - Tank, Seat, Cover

2018 250 SX-F - Tank, Seat, Cover

2018 250 XC - Tank, Seat, Cover

2018 250 XC-F - Tank, Seat, Cover

2018 250 XC-W - Tank, Seat, Cover

2018 250 XC-W TPI - Tank, Seat, Cover

2018 300 XC - Tank, Seat, Cover

2018 300 XC-W - Tank, Seat, Cover

2018 300 XC-W Six Days - Tank, Seat, Cover

2018 350 EXC-F - Tank, Seat, Cover

2018 350 SX-F - Tank, Seat, Cover

2018 350 XC-F - Tank, Seat, Cover

2018 450 SX-F - Tank, Seat, Cover

2018 450 XC-F - Tank, Seat, Cover

2018 500 EXC-F - Tank, Seat, Cover

2018 65 SX Mini - Tank, Seat, Cover

2019 150 XC-W - Tank, Seat

2019 250 EXC-F - Tank, Seat

2019 250 XC-W TPI - Tank, Seat

2019 300 XC-W TPI - Tank, Seat

2019 350 EXC-F - Tank, Seat

2019 450 EXC-F SIX DAYS - Tank, Seat

2019 65 SX - Tank, Seat

2020 65 SX - Tank, Seat
