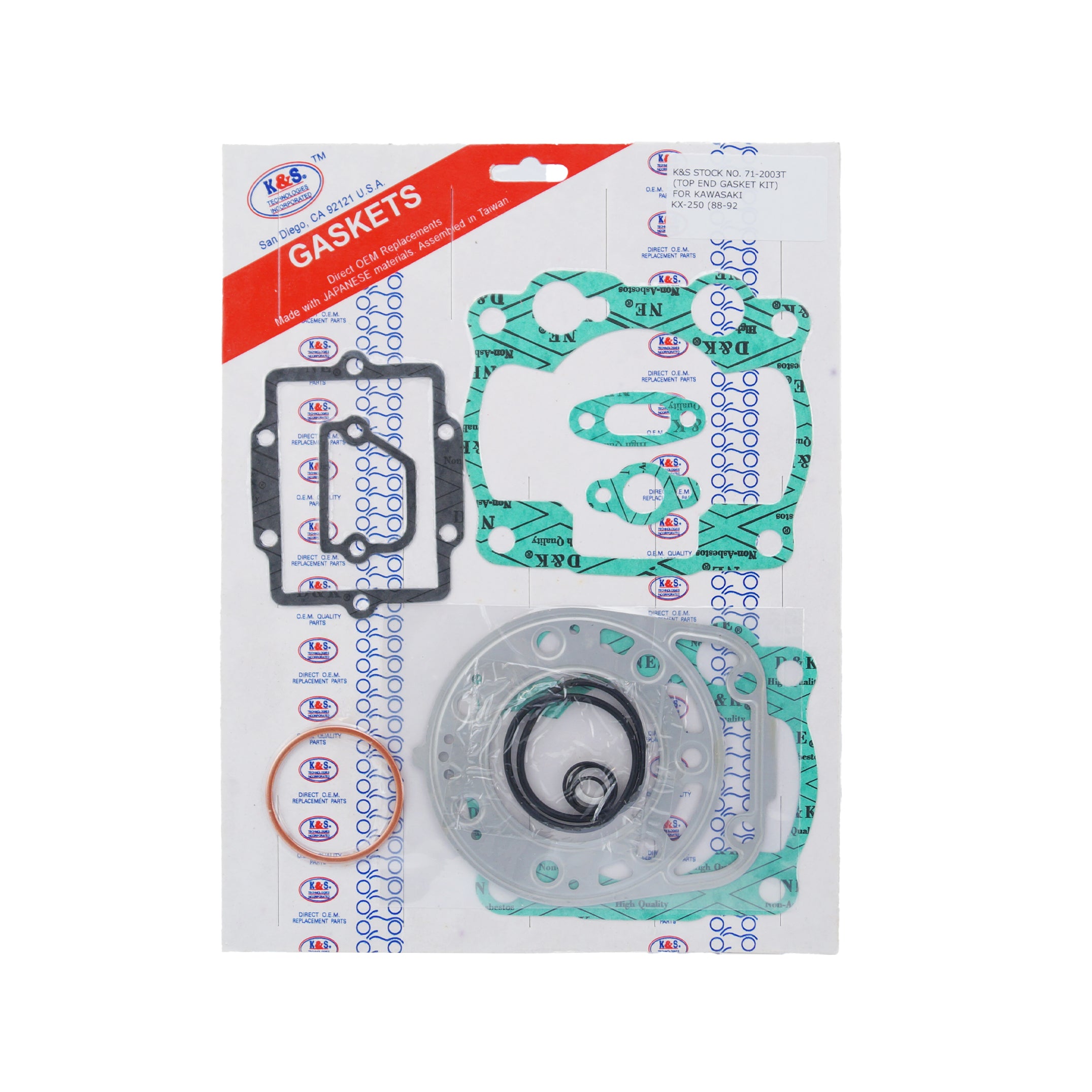

GASKET TOP SET 88-92 KX250

K&S Technologies 52-1456 top end gasket set is used during a top end rebuild on Kawasaki KX-250 models, replacing the gaskets and O-rings required for the cylinder, exhaust, reed valve and related top end components.

Features

• Includes the gaskets and O-rings required for one top end rebuild


• Suitable for Kawasaki KX-250 models from 1988 to 1992


• Includes separate cylinder base gaskets for 1988-1990 and 1991-1992 applications

Kit Contents

• 1 x Cylinder head gasket, 0.26


• 1 x Cylinder base gasket, 1988-1990


• 1 x Cylinder base gasket, 1991-1992


• 1 x Governor cover gasket


• 1 x Valve cover gasket


• 1 x Reed valve gasket


• 1 x Elbow gasket


• 1 x Exhaust pipe gasket


• 2 x Exhaust pipe O-rings, 50 mm


• 2 x Exhaust valve guide O-rings, 17.5 x 1.5 mm


• 1 x O-ring, 11.5 x 1.5 mm


• 1 x Drain plug gasket, 12.5 x 18 x 1 mm

Vehicle Fitments

•


  Kawasaki KX-250, 1988-1992
