FUEL VALVE KIT YFM350FG Grizzly 4x4, Fuel Star FS101-0039 YAMAHA ATV, TAPE / PETCOCK / CLIPS / PIPES / BOLTS
FUEL VALVE KIT YFM350FG Grizzly 4x4, Fuel Star FS101-0039 YAMAHA ATV, TAPE / PETCOCK / CLIPS / PIPES / BOLTS

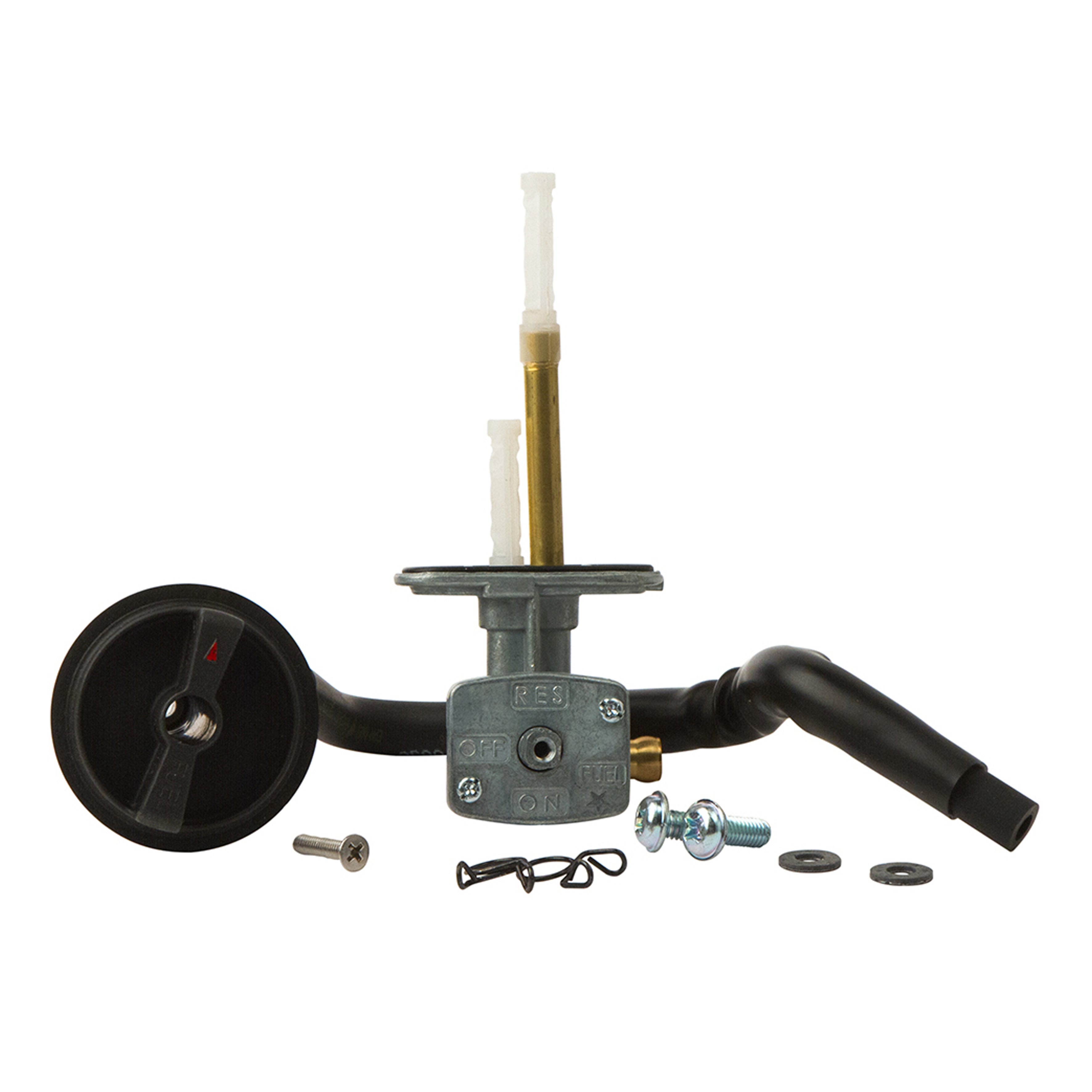

The Fuel Star FS101-0039 Fuel Valve Kit is a complete replacement petcock assembly designed for 2008–2014 Yamaha YFM350 Grizzly 4x4 models, including standard, IRS, and Hunter Edition versions. This kit includes all necessary components for installation and is built to OEM specifications.
Features
-
Complete replacement fuel petcock assembly
-
Includes fuel line, knob, clamps, bolts, and sealing washers
-
Direct-fit design for specified Yamaha ATV models
-
Sold individually
Specifications
-
(1) Fuel petcock
-
(1) Rubber hose
-
(1) Black plastic knob
-
(2) 6mm sealing washers
-
(2) 6mm-1.00 x 15mm flange head bolts
-
(1) 4mm-.7 x 16mm flat head bolt
-
(2) Wire hose clamps
Cross-Reference OEM Part Numbers
-
5KM-24500-01-00 (Fuel Cock Assy)
-
5KM-24500-10-00 (Fuel Cock Assy)
-
3AC-24523-00-00 (Valve Packing)
-
3AJ-24534-01-00 (Seal, Cock)
-
98507-03014-00 (Screw, Pan Head)
-
4X8-24512-00-00 (O-Ring)
-
5GH-24524-00-00 (Lever, Cock)
-
1NS-F4524-00-00 (Lever, Cock)
-
98702-04018-00 (Screw, Flat Head)
-
90202-05193-00 (Washer, Plate)
-
90202-05187-00 (Washer, Plate)
-
90149-06108-00 (Screw)
-
5UH-24311-00-00 (Pipe, Fuel 1)
-
90467-100A1-00 (Clip)
Vehicle Fitments
-
2008 Yamaha YFM350FG Grizzly 4x4
-
2009 Yamaha YFM350FG Grizzly 4x4
-
2010 Yamaha YFM350FG Grizzly 4x4
-
2011 Yamaha YFM350FG Grizzly 4x4
-
2012 Yamaha YFM350FG Grizzly 4x4
-
2013 Yamaha YFM350FG Grizzly 4x4
-
2014 Yamaha YFM350FG Grizzly 4x4
-
2008 Yamaha YFM350FGH Grizzly 4x4 Hunter Edition
-
2009 Yamaha YFM350FGH Grizzly 4x4 Hunter Edition
-
2010 Yamaha YFM350FGH Grizzly 4x4 Hunter Edition
-
2011 Yamaha YFM350FGH Grizzly 4x4 Hunter Edition
-
2012 Yamaha YFM350FGH Grizzly 4x4 Hunter Edition
-
2013 Yamaha YFM350FGH Grizzly 4x4 Hunter Edition
-
2014 Yamaha YFM350FGH Grizzly 4x4 Hunter Edition
-
2008 Yamaha YFM350FGI Grizzly 4x4 IRS
-
2009 Yamaha YFM350FGI Grizzly 4x4 IRS
-
2010 Yamaha YFM350FGI Grizzly 4x4 IRS
-
2011 Yamaha YFM350FGI Grizzly 4x4 IRS
-
2008 Yamaha YFM350FGIH Grizzly 4x4 IRS Hunter Edition
-
2009 Yamaha YFM350FGIH Grizzly 4x4 IRS Hunter Edition
-
2010 Yamaha YFM350FGIH Grizzly 4x4 IRS Hunter Edition
-
2011 Yamaha YFM350FGIH Grizzly 4x4 IRS Hunter Edition
-
2014 Yamaha YFM350D Grizzly 350 4x4
-
2014 Yamaha YFM350DH Grizzly 350 4x4 Hunter Edition
-
2014 Yamaha YFM350T Grizzly 350 2x4
