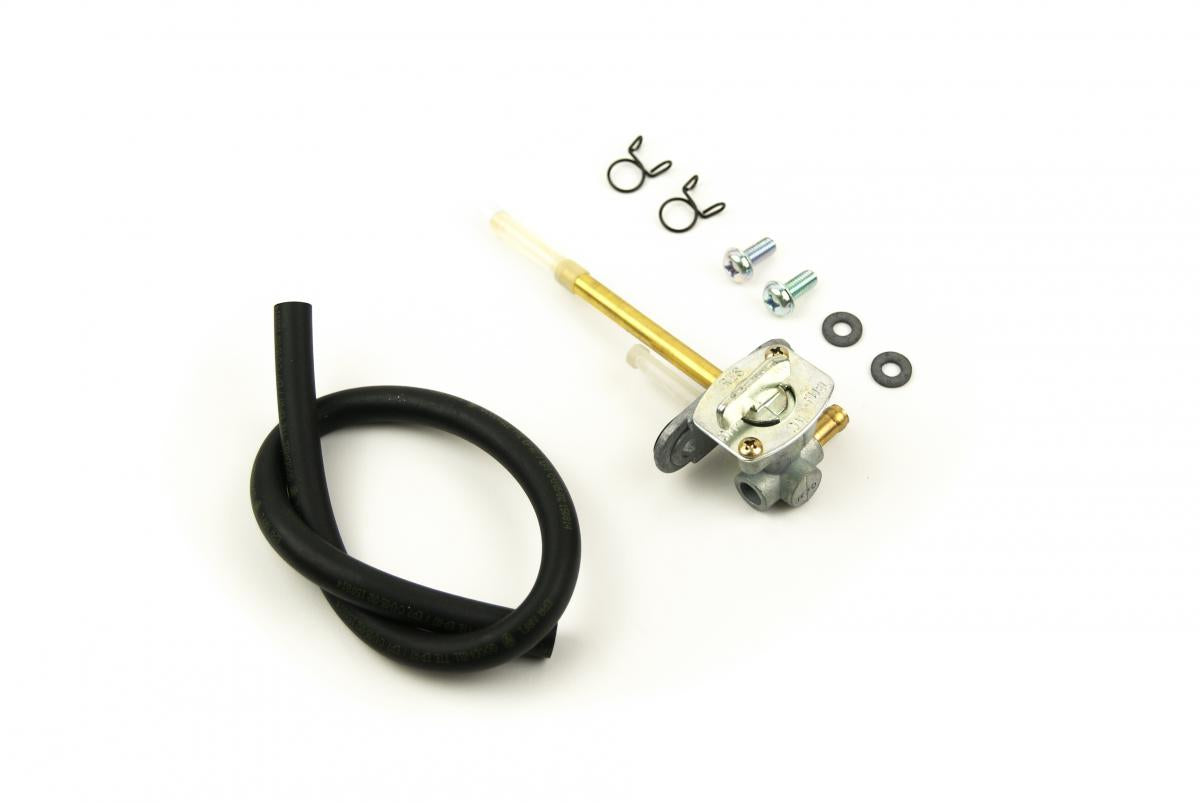

FUEL VALVE KIT TIMBERWOLF 2WD 92-94, Fuel Star FS101-0055 YAMAHA ATV, TAPE / PETCOCK / CLIPS / PIPES / BOLTS

The FS101-0055 Fuel Star Fuel Valve Kit is a complete replacement petcock assembly designed for Yamaha YFB250 Timberwolf ATVs from 1992 to 1994, including both 2WD and select 4x4 models. This kit includes all necessary components for a direct installation and matches OEM specifications.

Features

•


  Complete replacement fuel petcock assembly





•


  Sold each




Specifications

•


  (1) Fuel petcock with o-ring gasket





•


  (2) Wire hose clamps





•


  (2) 6mm-1.00 x 14mm flange head bolts





•


  (2) 6mm crush washers





•


  (1) 16 in. black rubber fuel line




Cross-Reference OEM Part Numbers

•


  3JN-24500-00-00 (Fuel Cock Assy)





•


  3JN-24500-10-00 (Fuel Cock Assy)





•


  3AJ-24534-00-00 (Seal, Cock)





•


  3AJ-24534-01-00 (Seal, Cock)





•


  98580-03008-00 (Screw, Pan Head)





•


  4X8-24512-00-00 (O-Ring)





•


  90202-05187-00 (Washer, Plate)





•


  90149-06011-00 (Screw)





•


  90445-110F2-00 (Hose, L155)





•


  90445-116K9-00 (Hose, L155)





•


  90467-10008-00 (Clip)





•


  90467-100A1-00 (Clip)




Vehicle Fitments

•


  1992 Yamaha YFB250 Timberwolf 2WD





•


  1993 Yamaha YFB250 Timberwolf 2WD





•


  1994 Yamaha YFB250 Timberwolf 2WD





•


  1994 Yamaha YFB250FW Timberwolf 4x4
