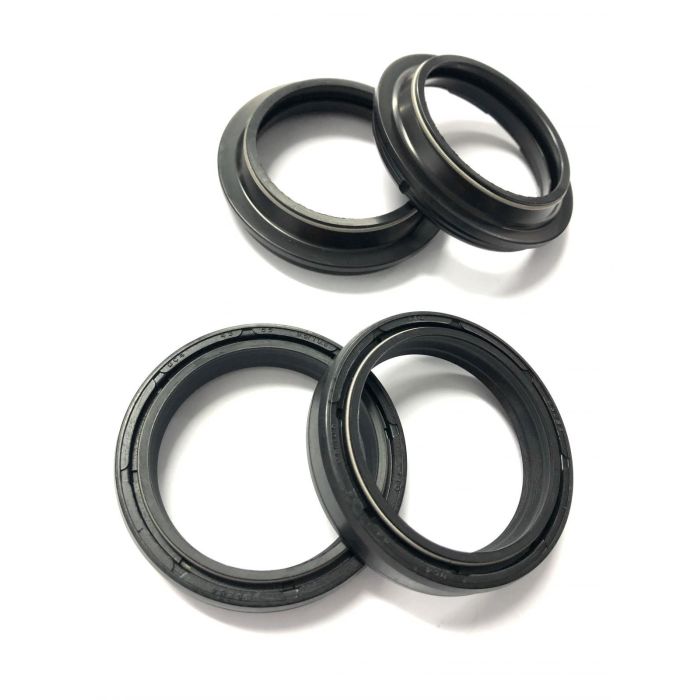

FORK SEAL & WIPER SET 48mm KTM WP 48600347 48601414 48600816 48601563

This 48mm fork seal and dust seal kit by FACTORY IMAGE RACING is a comprehensive solution for rebuilding front suspension systems, offering reliable performance under demanding riding conditions. Manufactured from high-tech materials and sourced from OE factories, the kit ensures a precise fit with enhanced durability and reduced friction for smooth fork operation.

Features

•


  High-quality seals designed to last up to three times longer than OEM





•


  Sourced from OE factories and comparable to top-branded sets





•


  30% reduction in friction for smoother fork action, enabled by triple sealing lips





•


  Includes 2 fork seals and 2 dust wipers for a complete rebuild





•


  Built with high-tech materials to ensure performance in harsh environments





•


  Meets or exceeds OEM quality standards with exact fitment





•


  FIR (Factory Image Racing) product with satisfaction guarantee




Specifications

•


  Fork Seal Diameter: 48mm





•


  O-Ring Dimensions: 53mm x 3.50mm





•


  Spring: Length 90mm, Diameter 9.50mm, Wire Thickness 1.50mm




Cross-Reference OEM Part Numbers

•


  ALLBALLS 56-146





•


  FSK-035





•


  PROX 40.S4857.89





•


  35-1040





•


  36-1044





•


  Oil Seal Ring 48X57.8X9.5 (48600347, 48601414)





•


  Dirt Scraper NOK 48mm (48600816, 48601563)





•


  KIT-4 [57-019 + 57-213]




Vehicle Fitments

•


  KTM: EXC 125/200/250/300/380/400/520 (02), MXC 200/300/400/520 (02), SX 125/250/380/400/520 (02), Adventure 640/950/990, Duke 690, Enduro R 690, EXC 125–530 (03–15), EXC-F 350, EXC-G 250/400/450, EXC-R 450/530, LC4 640, MXC 200/300/450/525, Rallye 660/690, SMC 625/690, SMR 450/525/560, SMS 450, Super Duke 990, Super Enduro 950, Supermoto 690/950/990, SX 125–525, SX-F 250–505, SXS 125–540, XC/XC-F/XC-W 150–530, XCR-W 450/530





•


  Gas-Gas: EC 125–450, MC 125–250, SM 125–450, EC/MC/SM Ohlins 125–300





•


  Husaberg: 390FE, 450FC/FE/FS-C/FS-E/FX/FX-E, 550FE/FS-E, 570FE/FS, 650FC/FE/FS-C/FS-E, FC450, FE450e/550e/650e, FS450e/550/650





•


  Husqvarna: FC 250/350/450 (14–16), FE 250/350/450/501 (14–16), FE 350S/501S, TC 125/250 (14–17), TE 125/250/300 (11–16)





•


  Triumph: Tiger Explorer 1200 XC/XCA/XCX/XR/XRT/XRX (16)
