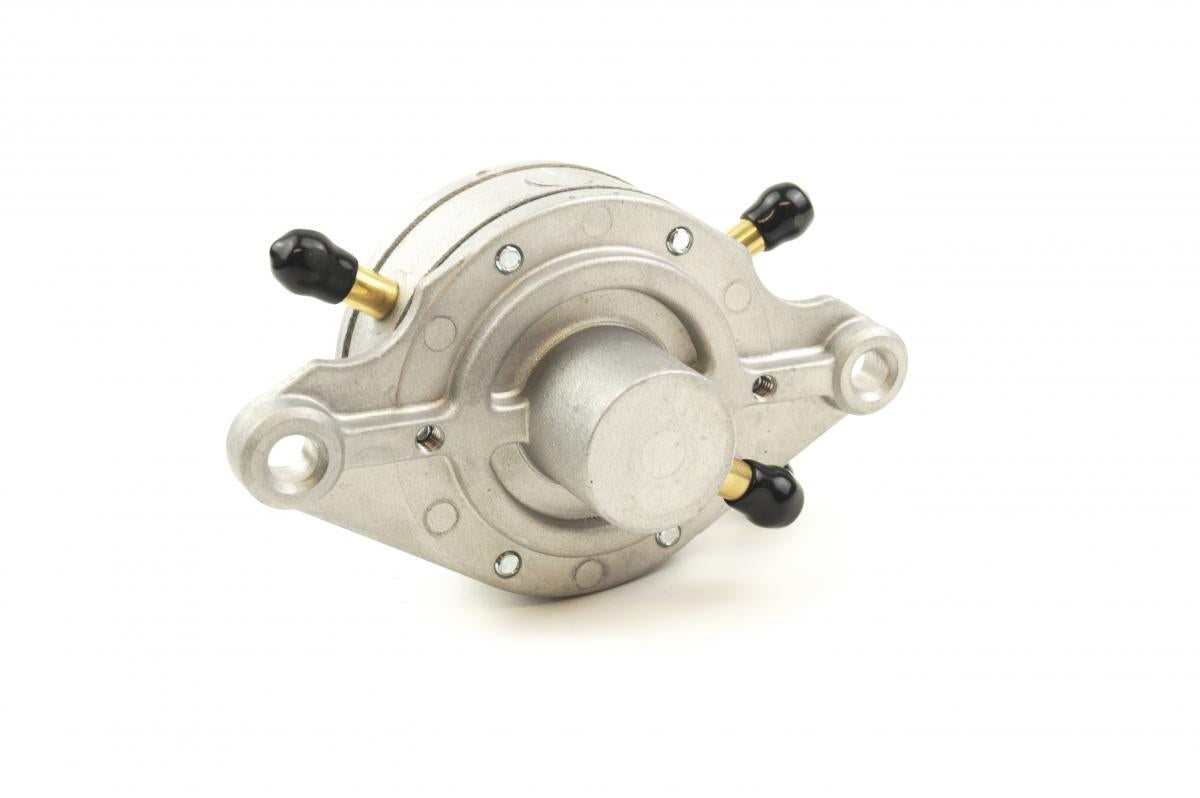

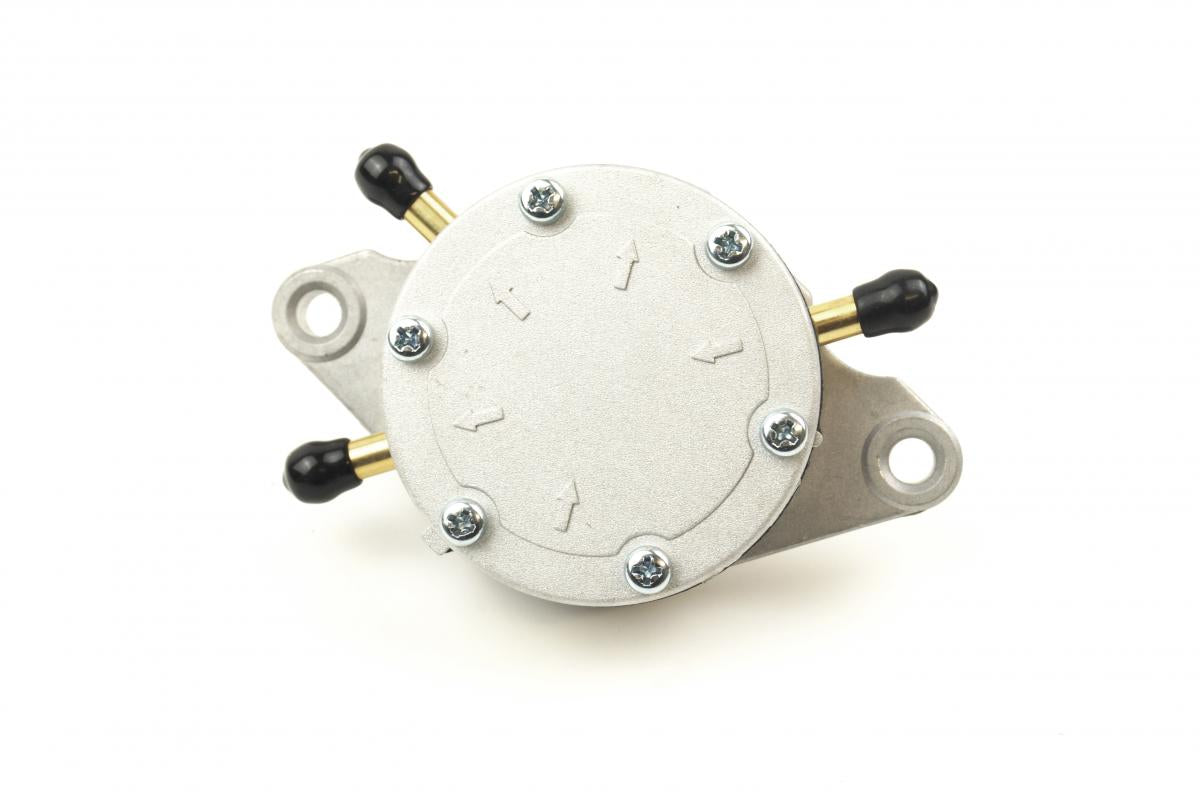

DF52-21-D FUEL PUMP 35LH, 07-187, 3084261, 3083460, JET SKI, PWC FUEL PUMP

Round, dual-outlet pulse fuel pump rated at 35 litres per hour.

Features

• Dual outlet (two fuel discharge ports)


• Vacuum / pulse-operated (i.e. uses pressure fluctuations from crankcase/intake)


• Mounting by bracket using two holes (bracket-mount style)


• Compatible with 1/4" fuel and impulse lines (i.e. 6?mm nominal)

Specifications

• Flow rate: 35 L/h (≈ 9.1 US gallons/hour)


• Mounting hole diameter: approx. 6 mm


• Mounting hole centre spacing (centre-to-centre): ~ 92 mm


• Hose barb size: suited for 6 mm internal diameter hose

Cross-Reference OEM Part Numbers

• Arctic Cat: 0670-140, 0670-189


• Polaris: 3084261, 3083460


• Internal / alternative part designator: DF52-21-D


• Replaces: Polaris 3084261 & 3083460

Vehicle Fitments

According to supplier listings, it fits many Arctic Cat and Polaris snowmobile / ATV / PWC models:

• Arctic Cat: Cheetah Touring, Cougar, Wildcat, Thundercat, Mountain Cat, ZR700, ZRT800 etc.


• Polaris: 400, 500, Trail, SKS, SP, Widetrak, etc (circa mid-1980s to early 1990s)
