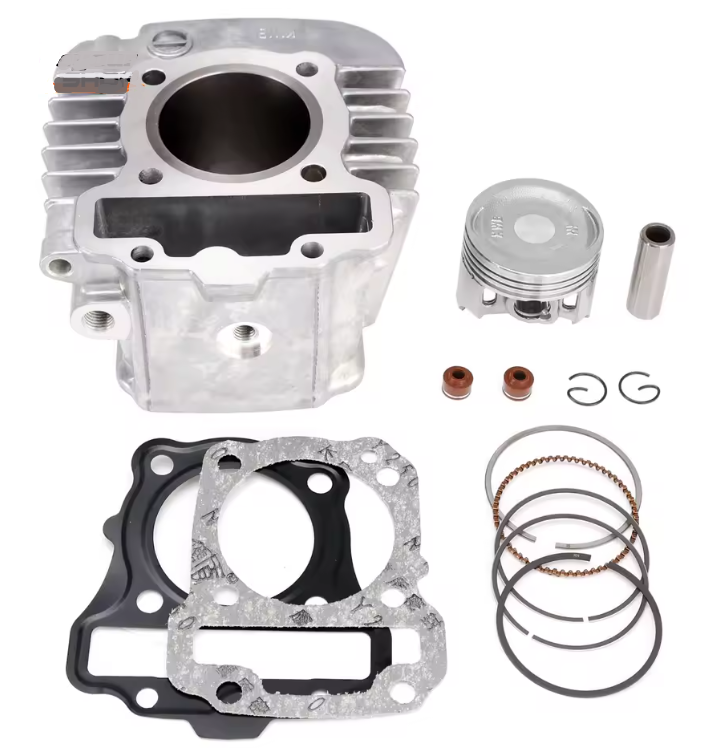

CYLINDER KIT STD 50mm 2019-2025 HONDA CRF110 F 12100-KYK-D10

This 50 mm cylinder, piston and gasket kit is a direct OEM-style replacement for selected Honda 110 cc fuel-injected and carburetted models. It uses a standard-bore 50 mm cylinder with a 90° temperature sensor port and is designed to meet or exceed OEM quality while handling increased power loads.

Features

• Meets or exceeds OEM quality


• Direct OEM replacement


• Uses stock mounting locations


• Designed to handle increased power loads


• All components made to OEM specifications and match the original equipment in appearance


• Best value for money


• Easy to install; if unsure, please use a professional


• Please check the image before ordering to avoid mistakes

Specifications

• Engine: 4-stroke


• Displacement: 109 cc


• Bore type: Standard bore


• Bore diameter: 50 mm


• Stroke: 55.6 mm


• Piston pin diameter: 13 mm


• Temperature sensor port: Yes


• Temperature sensor port angle: 90°

Cross-Reference OEM Part Numbers

• CYLINDER 12100-KWB-600 / 12100-KYK-D10 / 12100-K03-H10


• GASKET, CYLINDER 12191-K58-TC0


• GASKET, CYLINDER HEAD 12251-KWB-601


• RING SET, PISTON (STD) (RIKEN) 13011-KWW-740


• PISTON (STD) 13101-KWW-740


• PIN, PISTON 13111-KVR-C00


• CLIP, PISTON PIN 13115-KVR-C00


• Valve Stem Seal (2) 12209-GB4-682

Vehicle Fitments

• Honda CRF110 / CRF110F 2019–2025


• Honda Wave 110i AFS110 (EFI) 2011–2013


• Honda EX5 Dream 110i


• Honda Cross Cub 110 / C110 Super Cub / NBC110 2012–2017


• Honda Super Cub 110 C110 JA10 2018–2019


• Honda Cross Cub 110 CC110 JA10 2018–2019


• Honda CRF110F fuel-injected models 2013–2025
