CYLINDER KIT 100mm BORE 1987-1995 2008-2018 KAWASAKI KLR650 CAMO 11005-0584

This cylinder piston top end kit is designed for Kawasaki KLR650 Camo models, providing a complete replacement solution for the top end of the engine. Made from aluminium and steel, the kit includes all necessary components to restore 650cc displacement performance, using a standard bore of 100mm and an 83mm stroke. Each component meets OEM specifications for reliable fit and function.

Features

• Complete top end rebuild kit for Kawasaki KLR650 Camo


• Constructed from high-quality aluminium and steel


• Direct OEM replacement components


• Designed to meet or exceed OEM quality standards


• Includes all essential gaskets and hardware for installation


• Easy to install; professional installation recommended if unsure

Specifications

• Material: Aluminium, Steel


• Displacement: 650cc


• Bore Type: Standard Bore


• Bore Diameter: STD 100mm


• Stroke: 83mm


• Pin Diameter: 24mm

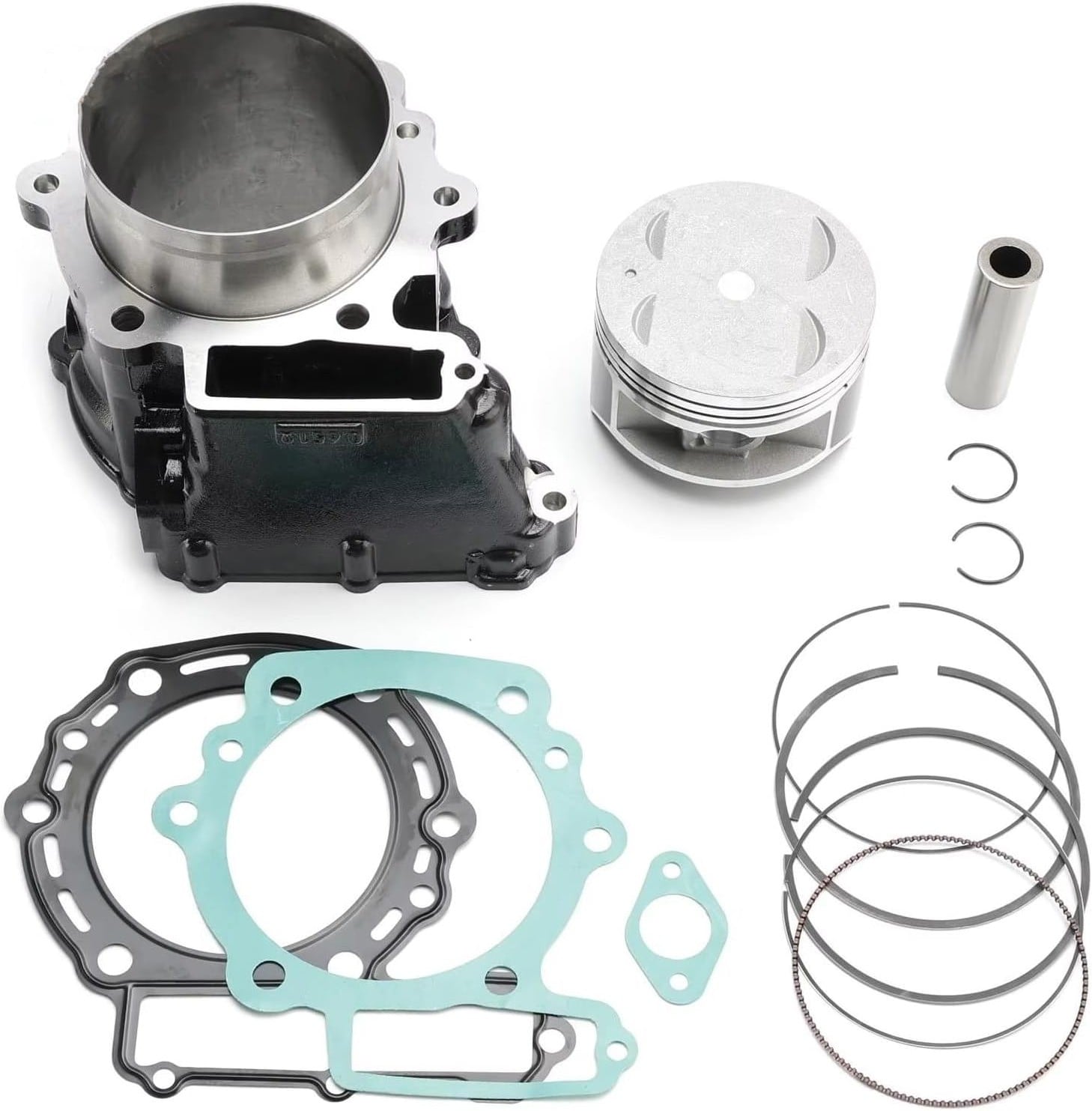

Package Includes

• 1x Cylinder


• 1x Piston


• 1x Piston Ring Set


• 1x 24mm Wristpin


• 1x Circlip (2)


• 1x Cylinder Base Gasket


• 1x Cylinder Head Gasket


• 1x Chain Tensioner Gasket

Cross-Reference OEM Part Numbers

• Cylinder: 11005-0097, 11005-0131, 11005-0584


• Cylinder Base Gasket: 11060-1110


• Cylinder Head Gasket: 11004-1158


• Piston (Standard): 13001-0121


• Pin, Piston: 13002-1101


• Piston Ring Set (Standard): 13008-0033


• Circlips, Piston (2): 92033-1226

Vehicle Fitments

• Kawasaki KLR650 Camo 1987–1995


• Kawasaki KLR650 Camo 2008–2018


• Kawasaki KLR650 Camo 2023
