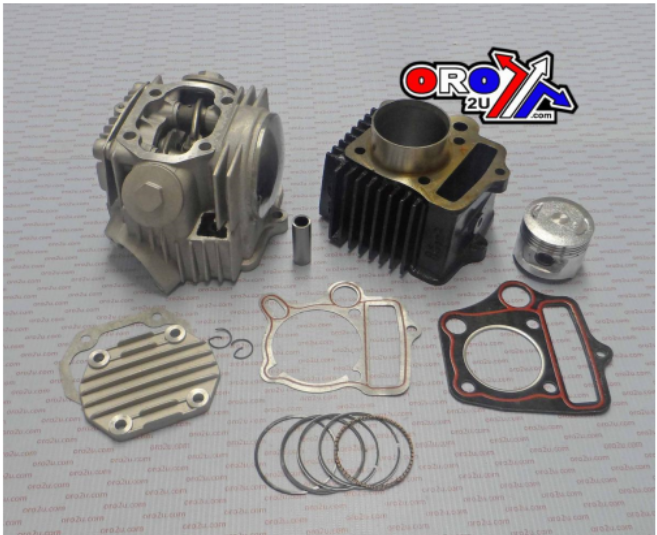

CYLINDER & HEAD CAM VALVE PISTON GASKET KIT 90cc 1993-2005 HONDA C90 TRX90 BORE 47mm 86CM3 TOP END REBUILD KIT

Honda C90 Scooter 86cm³ & TRX90 ATV (1993-2005)

Top End Rebuild Cylinder Kit (Bore 47mm)

Kit Contents:

• Piston


• Rings


• Pin


• Cylinder


• Cylinder Head


• Gaskets

Features:

• Unmatched reliability and performance from high-tech materials.


• Manufactured to exacting standards, enabling the engine to be rebuilt with total confidence.


• Meets or exceeds OEM quality.


• Direct OEM replacement.


• Please view the image before ordering to avoid mistakes.


• Best value for money.


• ORO products are high-quality replacement parts and carry our guarantee of your satisfaction.


• Easy to install, but professional installation is recommended if unsure.

Cross reference numbers.

RING SET, PISTON (STD) (RIKEN) 13011-GB5-305

PISTON (STD) 13101-GT0-000

PIN, PISTON 13111-GB0-910

CLIP, PISTON PIN 13115-001-000 94601-13000

CLIP, PISTON PIN (13MM) 94601-13000

CYLINDER 12101-HF7-A10

2GASKET, CYLINDER 12191-GW8-681

CYLINDER HEAD Use up to Engine SN 2108211 12200-HF7-A10

CYLINDER HEAD Use from Engine SN 2108212 12200-HF7-A11

GASKET, CYLINDER HEAD 12251-HF7-A11

SEAL, VALVE STEM (NOK) 12209-GB4-681

CAMSHAFT 14100-HF7-A10

PLATE, STOPPER 14150-GN5-911

ARM, VALVE ROCKER 14431-GN5-911

SHAFT, VALVE ROCKER ARM 14451-035-000

VALVE, IN. 14711-GN5-913

VALVE, EX. 14721-GF6-010

SPRING, VALVE (OUTER) (NIPPON HATSUJO) 14751-GN5-911

SPRING, VALVE (INNER) (NIPPON HATSUJO) 14761-GN5-911

RETAINER, VALVE SPRING 14771-GB4-680

1SEAT, VALVE SPRING (OUTER) 14775-MA6-000

2COTTER, VALVE 14781-MA6-000

SCREW, TAPPET ADJUSTING 90012-333-000

NUT, TAPPET ADJUSTING 90206-001-000
