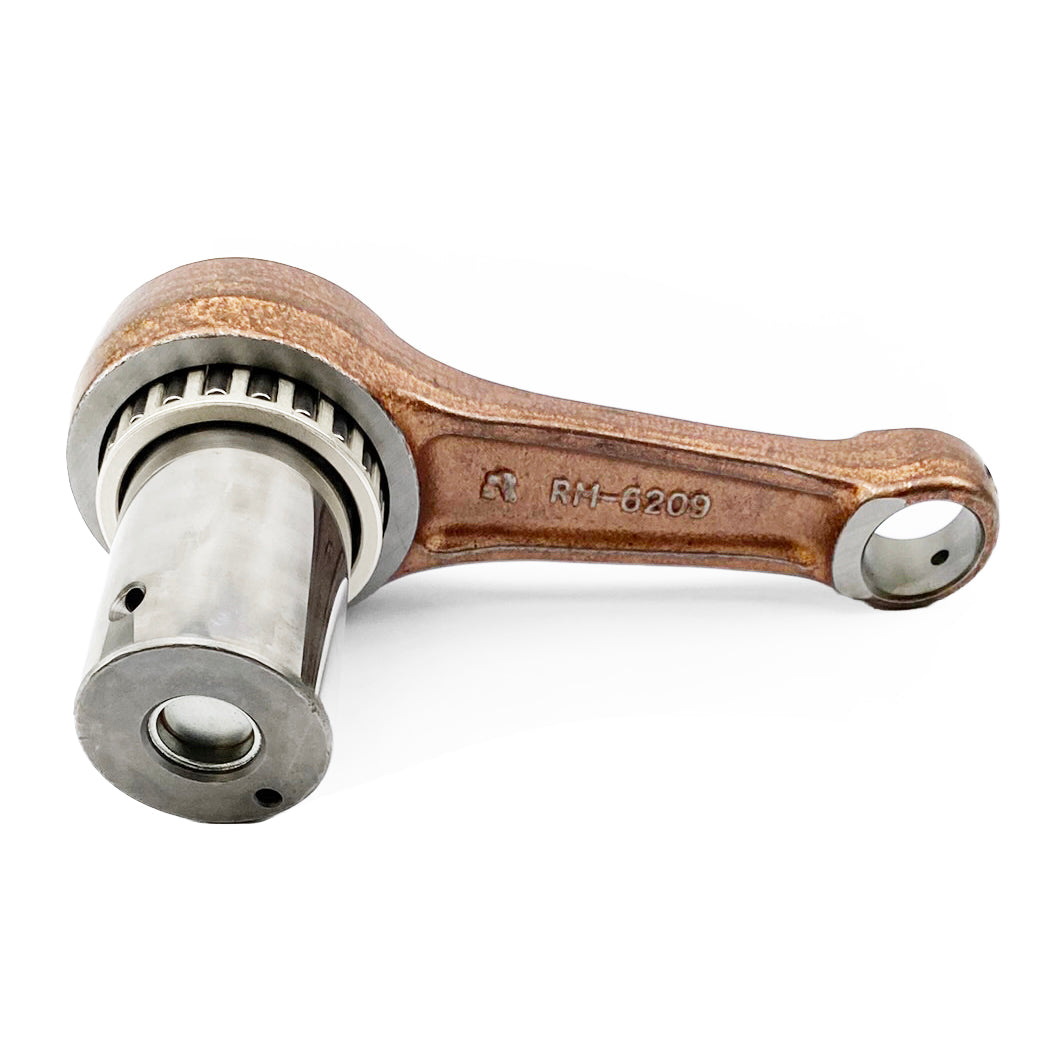

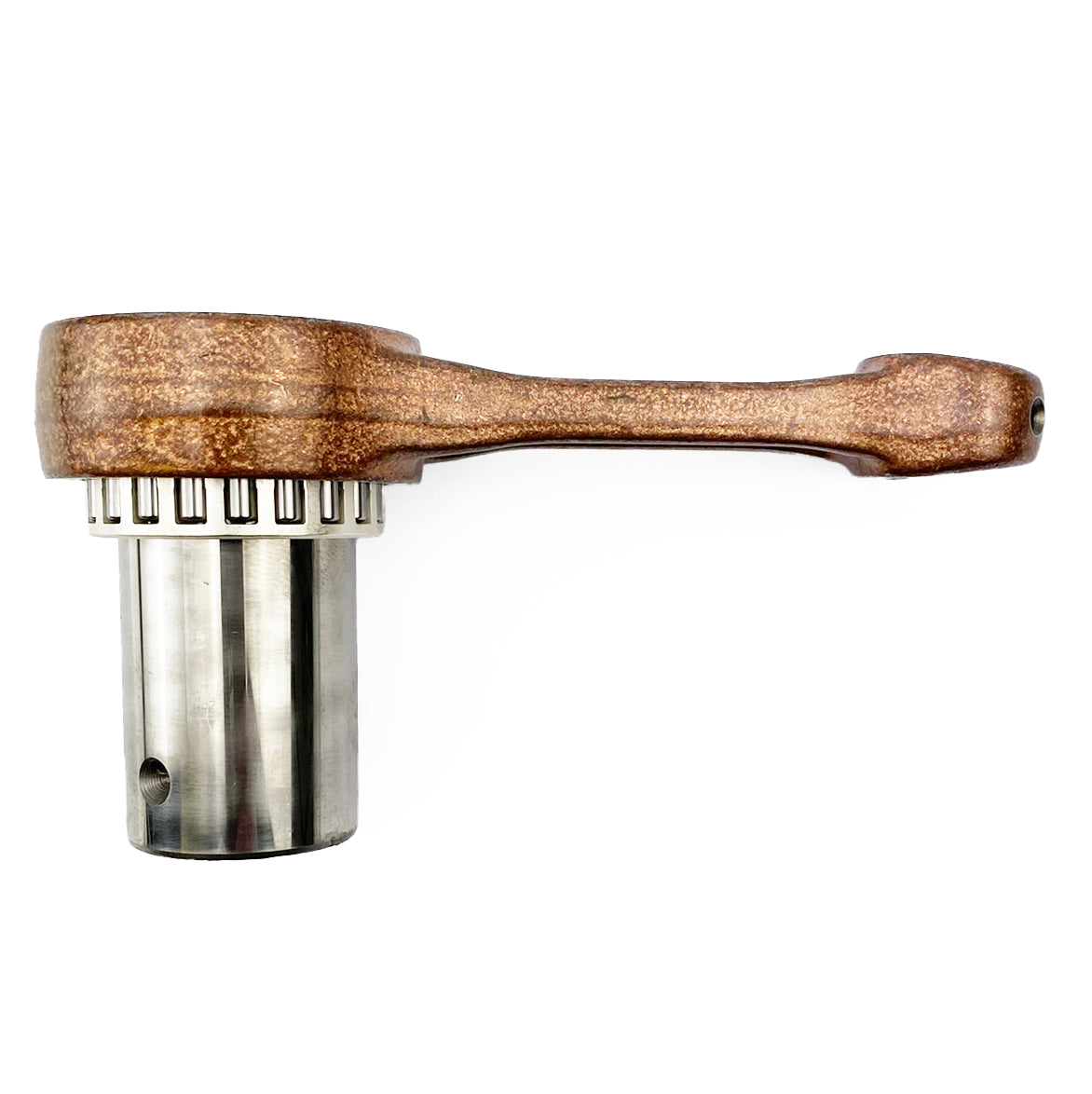

CONNECTING ROD SX-F350 KTM, NAMURA RX-70001 MX-09018, 77230015044

KTM

2011-12 350 SX-F

2010-12 350 EXC-F

2012-13 350 XCF-W

2011-12 350 XC-F

EXC-F 350 2010-2012 Pro Series

HUSABERG

2013-14 FE350

NAMURA CONNECTING ROD KIT – MX-09018

• Heavy-duty OE replacement connecting rod designed for durability and performance.


• Manufactured from certified chrome alloy steel for superior strength.


• Crankpins made from hot-rolled ASTM steel and case-hardened for enhanced longevity.


• Precision-engineered caged needle roller bearings ensure high RPM stability.


• Thrust washers crafted from phosphor bronze with a silver coating for improved wear resistance.


• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers as required.


• Fully compatible with both aftermarket and OE crankshafts.


• Material: SNCM220

Specifications (MM)

Center to Center: 102

Small End Bore Ø: 18

Small End Width: 17

Big End Bearing: 32x40x19.8

Big End Bore Ø: 40

Big End Width: 20

Big End Pin Ø: 32

Big End Pin Length: 60.00

Washer Thickness: None

Part No. 56-2984.NAM

Cross Reference Numbers:

77230015044, WOSSNER P4040, PROX 03.6351, HOTRODS 8693
