CONNECTING ROD SX-F350 KTM, HOT RODS 8693

High-quality connecting rod kit designed for KTM and Husaberg models, including KTM 350 EXC-F, SX-F, XC-F, and XCF-W bikes as well as Husaberg equivalents. Manufactured from durable ASTM 4115 material and case-hardened for superior strength, this kit is engineered to withstand high-performance demands while minimizing bearing race distortion at high RPMs.

Features:

• Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc.


• Double-forged rods for improved grain flow and dimensional consistency.


• Shot-peened and double-honed for exceptional strength under heavy loads.


• Strategically designed with side scalloping and vent slots to reduce high RPM distortion.


• Double-drilled small ends for enhanced lubrication and cooling.


• Silver-coated thrust washers and crank pin bearings for added lubricity.

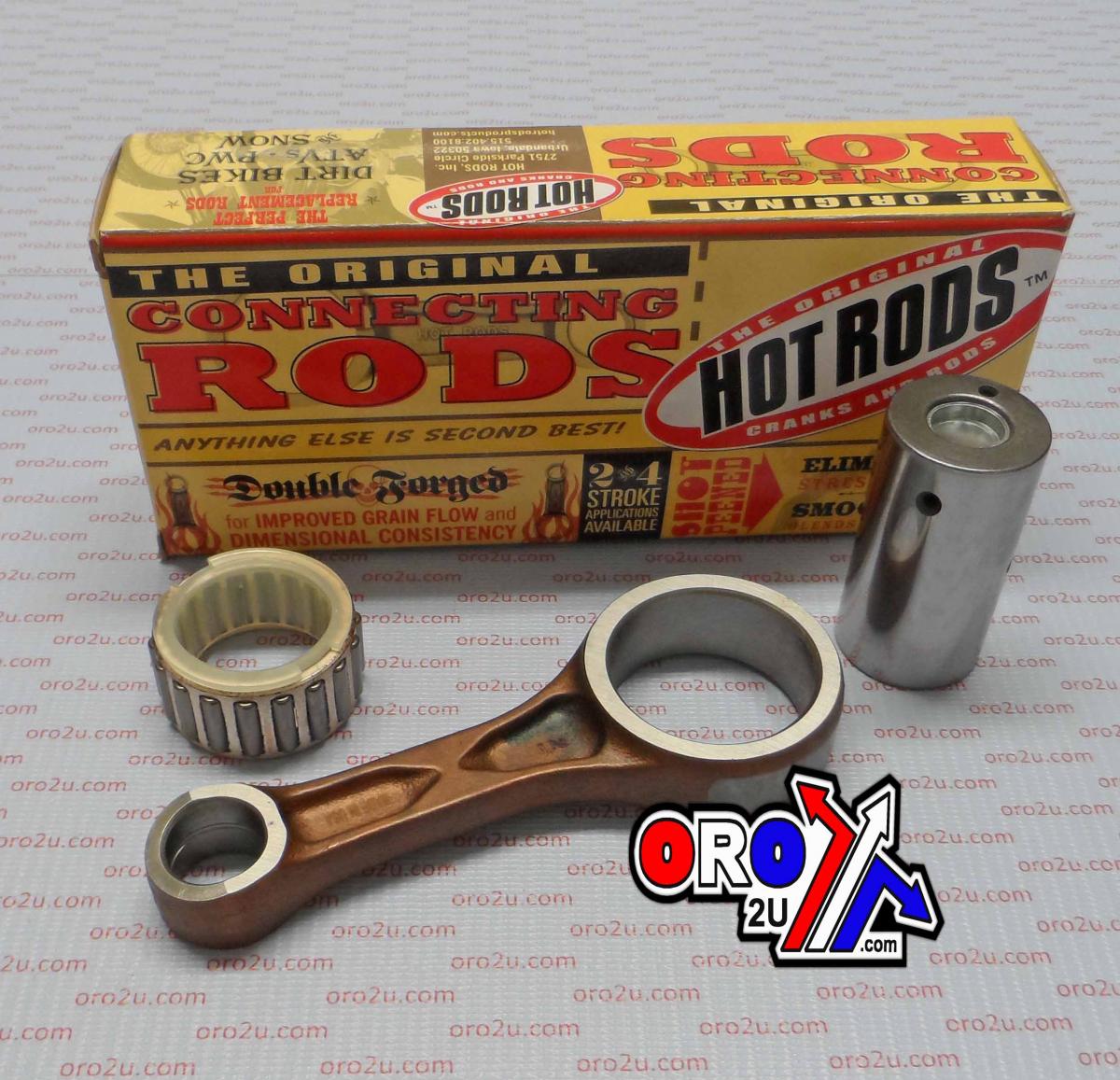

• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.

Technical Specifications:

• Big End Bore: 41.00 mm


• Center to Center: 102.00 mm


• Pin Diameter: 32.00 mm


• Pin Length: 60.00 mm


• Small End Bore: 18.00 mm

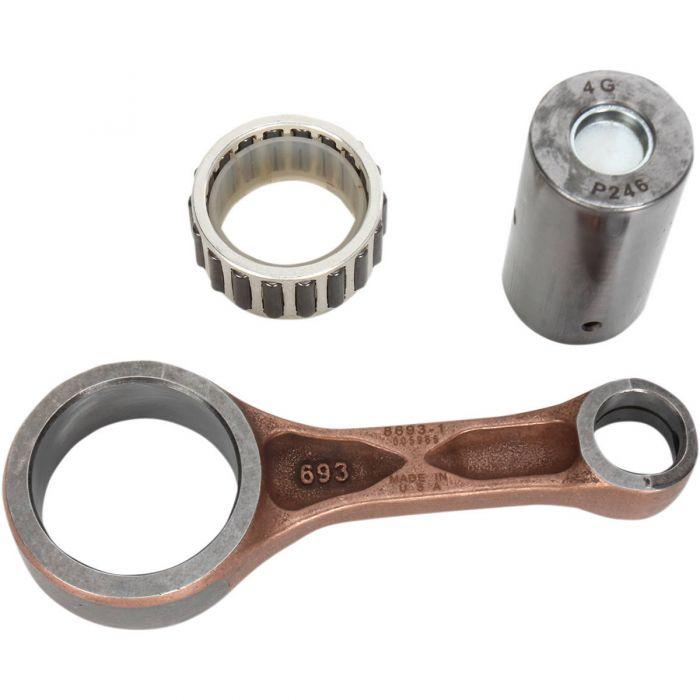

Included Items:

• (1) Connecting rod


• (1) Crankshaft pin


• (1) Connecting rod bearing

Cross-Reference OEM Part Numbers:

• KTM: 77230015044


• KTM: 77230115044


• HUSABERG: 77230115044

Vehicle Fitments:

KTM:

• 2012–2016 KTM 350 EXC-F


• 2011–2012 KTM 350 SX-F


• 2011–2012 KTM 350 XC-F


• 2012–2013 KTM 350 XCF-W

HUSABERG:

• Equivalent models to above KTM fitments.

Part Number: 56-2984.HR
