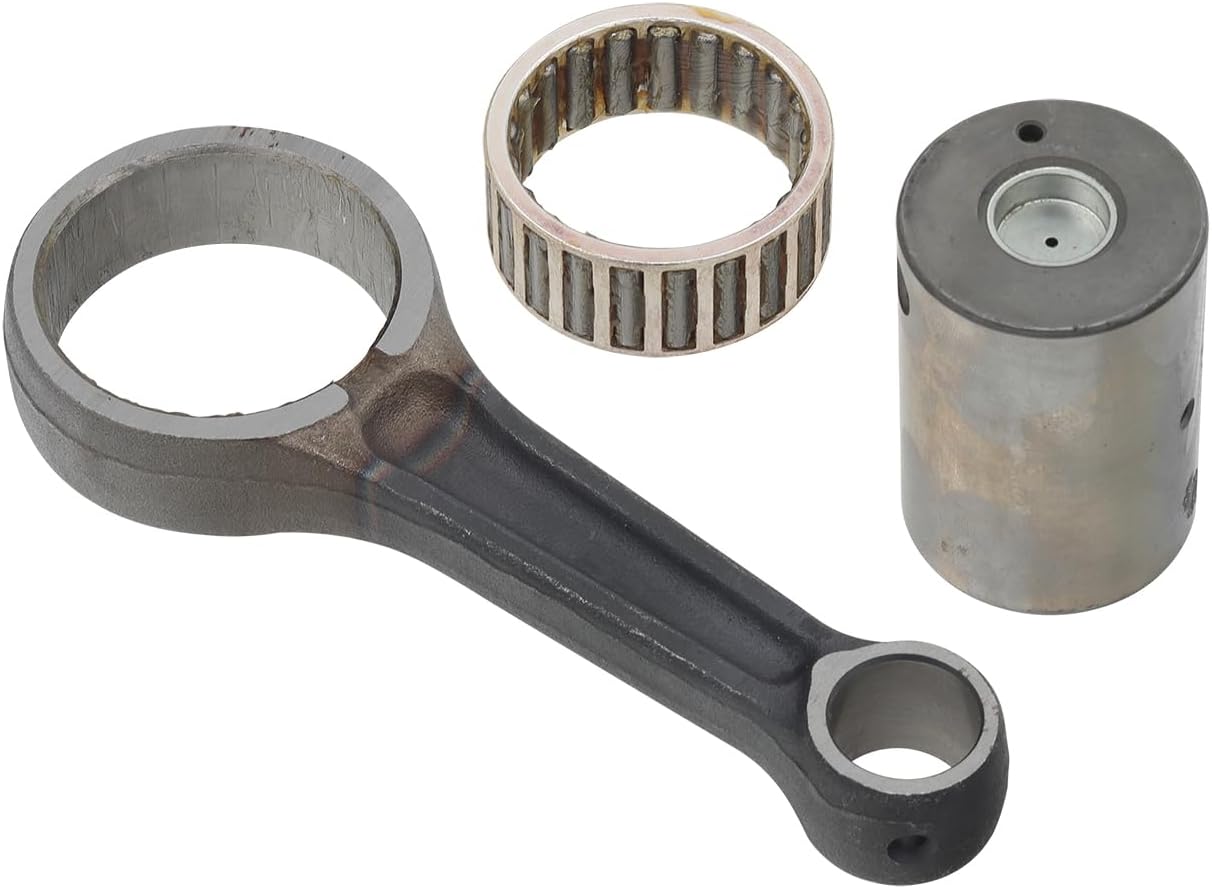

CONNECTING ROD KIT XLX350, RH-1201 HONDA, MX-09013, RX-10009
CONNECTING ROD KIT XLX350, RH-1201 HONDA, MX-09013, RX-10009
HONDA
XL350 1984-1987,
XR350 1985-1986,
XLX 350 1987 - 1991,
CBX250RS 1983-97
GB250 1983-97
- Manufactured to exacting standards so the engine can be rebuilt with total confidence.
- Meets or exceeds OEM quality.
- Direct oem replacement.
- Please see image before ordering to avoid mistakes.
- Best value for money.
- ORO products are a high quality replacement part and carries our guarantee of your satisfaction.
|
SIZE |
MM |
|
Centre 2 Centre |
116 |
|
Small End Bearing |
NONE |
|
Small End Bore Ø |
19 |
|
Small End Width |
20 |
|
Big End Bearing |
38x47x19.8 |
|
Big End Bore Ø |
47 |
|
Big End Width |
20 |
|
Big End Pin Ø |
38 |
|
Big End Pin Length |
57.5 |
| Washer Thickness |
NONE |
CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 116, B = 19, C = 38, D = 20, E = 20, F = 57.5
PIN: 38 x 57.5 BIG END BEARING: ID 38 X 47 X 19.8
Part No. 56-2938 (oro2u.com)
Cross reference numbers ONLY.
OEM -KL3-, MX-09013, RH-1201 ,
