CONNECTING ROD KIT HONDA CRM 250 AR 246 249 13000-KAE-001

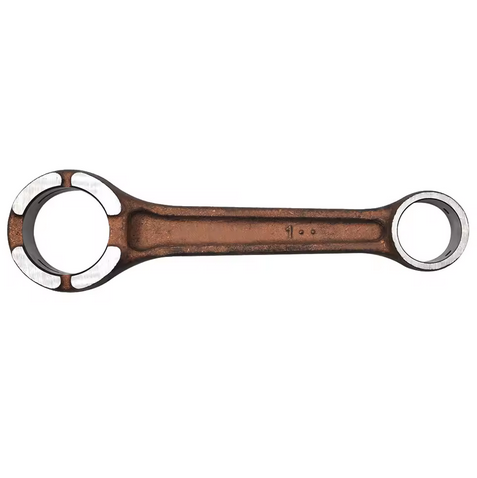

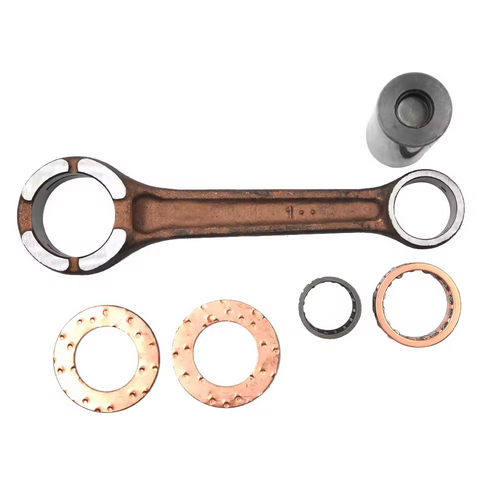

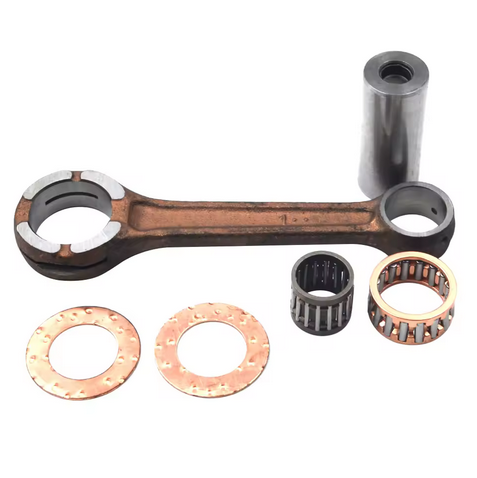

The connecting rod kit is a replacement engine bottom-end component for Honda CRM250AR and CRM250 models, used to link the piston assembly to the crankshaft and support engine rebuild or repair work. It is designed as a direct replacement for the original connecting rod assembly and is supplied for applications matching the listed Honda CRM250 model references.

Features

• Meets or exceeds OEM quality requirements


• Direct OEM replacement


• Manufactured to tight tolerances for accurate fitment


• Intended as a value-focused replacement part


• Supplied with a satisfaction guarantee


• Check the product image before ordering to confirm correct selection

Specifications

• Centre to centre: 132.50 mm

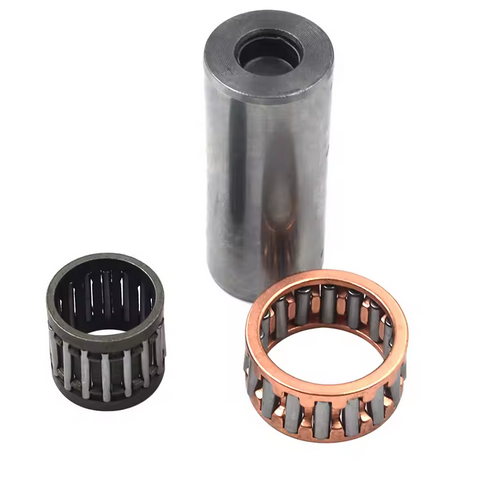

• Small end bearing: 19 x 23 x 21.50 mm


• Small end bore diameter: 23 mm


• Small end width: 16.50 mm


• Big end bearing: 25 x 32 x 15.70 mm


• Big end bore diameter: 32 mm


• Big end width: 16.50 mm


• Big end pin diameter: 25 mm


• Big end pin length: 59.75 mm

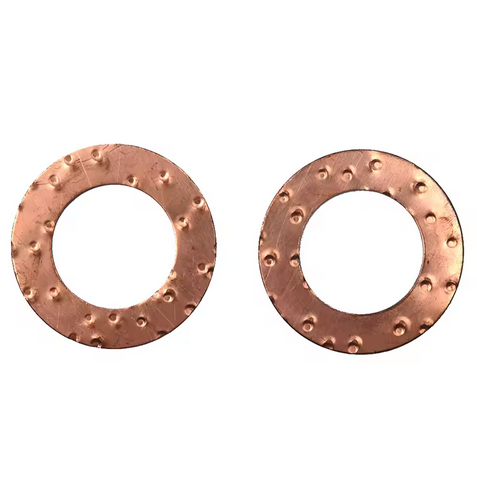

• Washer thickness: 25 x 42 x 1 mm


• Overall rod length: 170 mm

Cross-Reference OEM Part Numbers

•


  13000-KAE-001




Vehicle Fitments

• Honda CRM250AR KAEG 249


• Honda CRM250 KAEG 246
