CONNECTING ROD KIT AP50, RS-3001 12161-35000 SUZUKI 12161-37B03 12161-37B02

This connecting rod crankshaft rebuild kit is designed for various Suzuki models, providing a high-quality replacement that meets or exceeds OEM specifications. It offers precise dimensions and is compatible with several vehicles, ensuring reliable engine performance.

Features:

• Precision-engineered connecting rod for durability and performance.


• Direct OEM replacement for seamless compatibility.


• Includes bearings and washers designed to meet strict quality standards.


• Cost-effective solution with guaranteed satisfaction.


• Easy to install; professional installation is recommended if unsure.

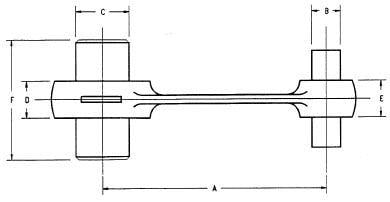

Specifications:

• Centre to Centre: 80 mm


• Small End Bore Diameter: 12 mm


• Small End Bearing: 12 × 16 × 15.5 mm


• Big End Bore Diameter: 16 mm


• Big End Bearing: 16 × 22 × 11.8 mm


• Pin Diameter: 16 mm


• Pin Length: 46 mm


• Washer Dimensions: 16.2 × 30 × 1 mm

Cross-Reference OEM Part Numbers:

• 12161-35000


• 12161-37B03


• 12161-37B02

Compatibility:

This kit is compatible with the following Suzuki models:

• AG50 Address (1992)


• AH50 Address (1992-1994)


• AJ50 Sepia (1995-1996)


• AP50 (1994-1998)


• A-50 / AC-50 / AP-50 (1977-1984)

Part Number: 56-2947
