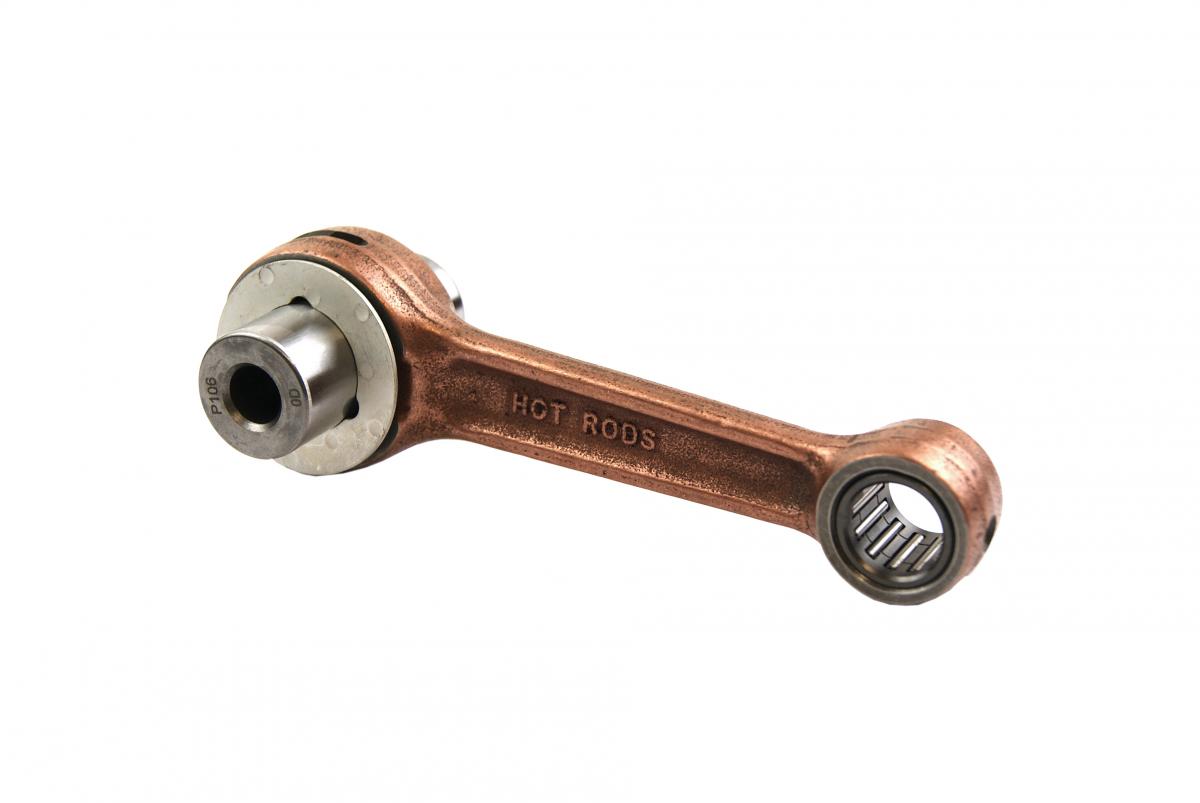

CONNECTING ROD KIT 98-02 KX125, HOTROD 8140 KAWASAKI MX

Heavy-duty connecting rod kit designed for the Kawasaki KX125, offering a durable and high-performance solution for demanding applications. Manufactured to stringent standards, this kit provides excellent reliability and strength while minimizing high-rpm bearing race distortion.

Features:

• Made from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional durability.


• Advanced design incorporates strategically located side scalloping and vent slots to reduce high-rpm bearing race distortion.


• Double-forged rods ensure improved grain flow and dimensional consistency.


• Shot-peened and double-honed construction provides superior strength under heavy loads.


• Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.


• Silver-coated thrust washers and crank pin bearings increase lubricity and longevity.

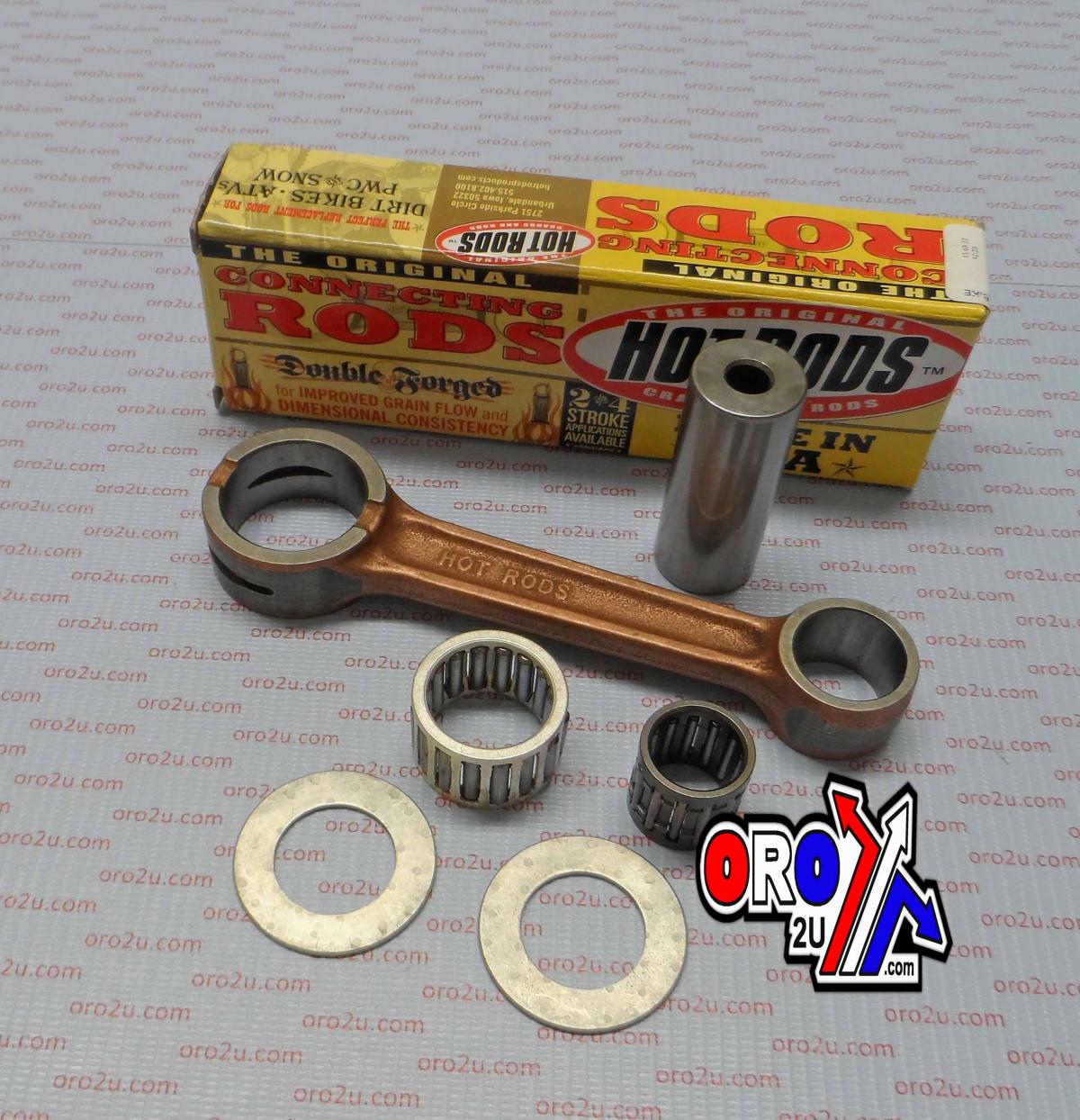

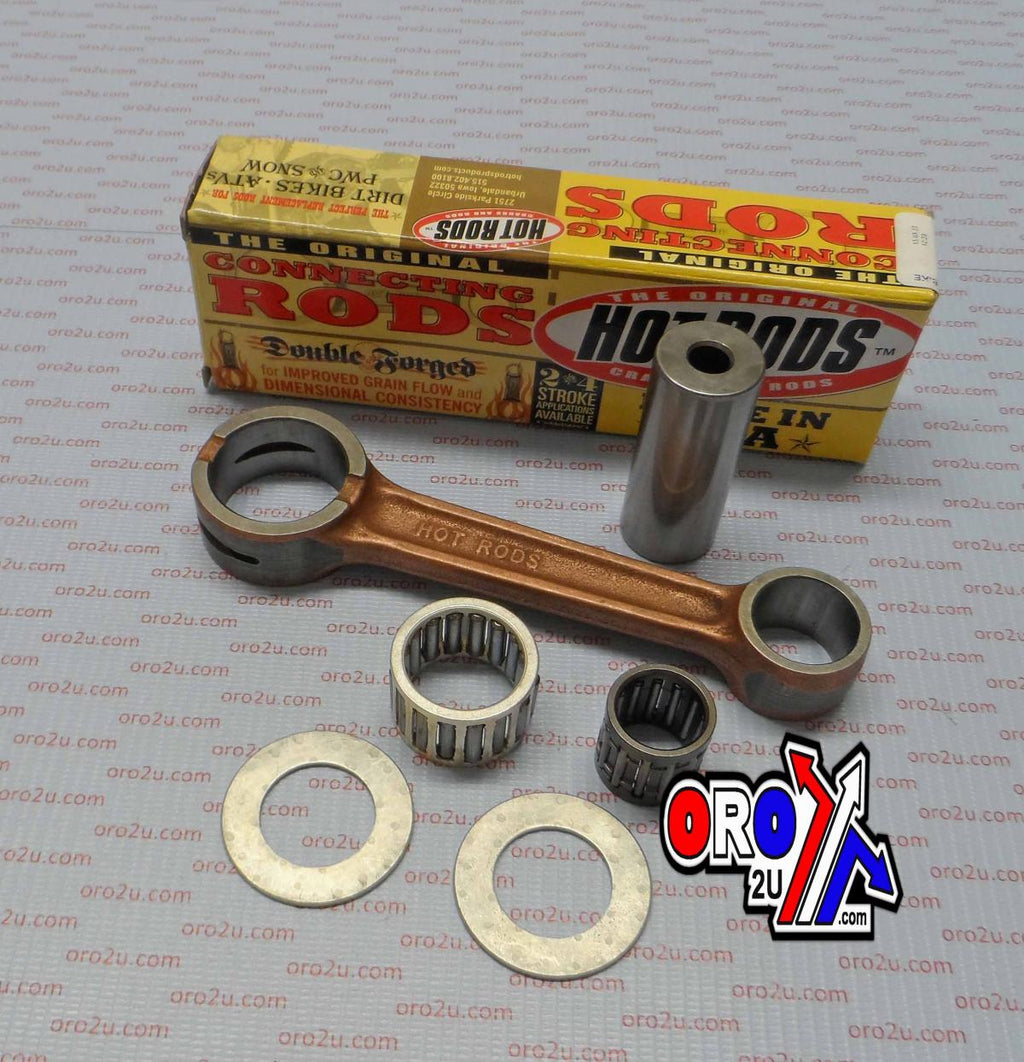

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

Technical Specifications:

• Big End Bore (mm): 29.00


• Big End Width (mm): Not specified


• Center to Center (mm): 104.00


• Pin Diameter (mm): 22.00


• Pin Length (mm): 51.00


• Small End Bore (mm): 19.00


• Small End Width (mm): Not specified


• Washer Thickness (mm): 1.00

Cross-Reference OEM Part Numbers:

KAWASAKI: 13032-0010, 13032-1225, 13032-1253

Vehicle Compatibility:

• 1998 Kawasaki KX125


• 1999 Kawasaki KX125


• 2000 Kawasaki KX125


• 2001 Kawasaki KX125


• 2002 Kawasaki KX125

Part Number: 56-877.HR
